N07718 Inconel 718 Round Bar Dia 90mm Bright Annealed ASTM B637 Super Alloy Rod

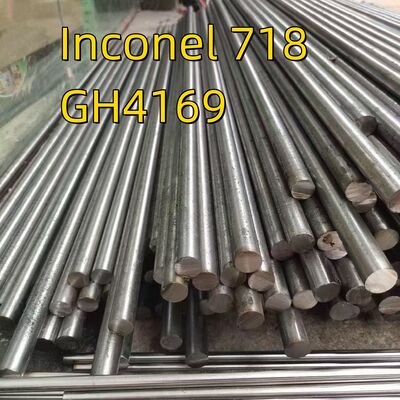

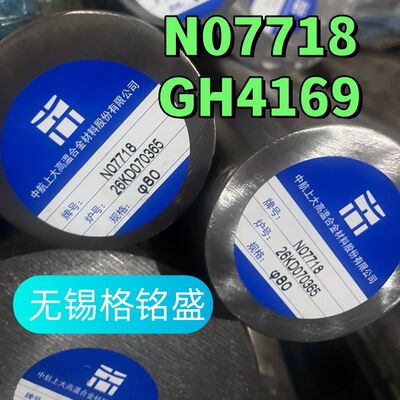

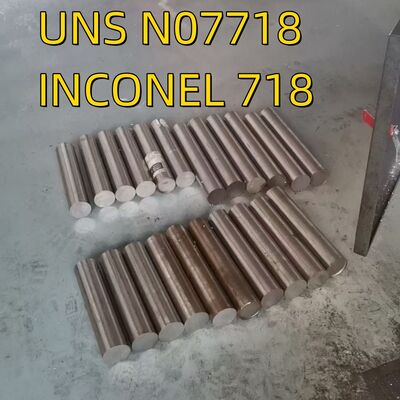

Large Image : N07718 Inconel 718 Round Bar Dia 90mm Bright Annealed ASTM B637 Super Alloy Rod

Product Details:

Place of Origin:	China (Mainland)
Brand Name:	TISCO
Certification:	SGS, BV, ISO 9001
Model Number:	N07718

Payment & Shipping Terms:

Minimum Order Quantity:	500 Kilograms
Price:	USD 45-75 / Kilogram
Packaging Details:	Standard export seaworthy packing with plastic film and wooden case
Delivery Time:	10-20 working days after deposit
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 Tons per Month

Contact Now

N07718 Inconel 718 Round Bar Dia 90mm Bright Annealed ASTM B637 Super Alloy Rod

Description

Grade:	N07718 (Inconel 718, UNS N07718, DIN 2.4668)	Material:	Nickel-Chromium Superalloy
Form:	Round Bar / Rod	Diameter:	6-500mm
Length:	1000-6000mm Or As Required	Surface:	Black, Bright, Peeled, Polished, Ground
Condition:	Annealed, Solution Treated, Aged	Standard:	ASTM B637, AMS 5662/5663/5664, DIN 2.4668
Nickel Content:	50-55%	Chromium Content:	17-21%
Tensile Strength:	1240 MPa Min (aged)	Yield Strength:	1030 MPa Min (aged)
Density:	8.19 G/cm3	Application:	Gas Turbine Components, Jet Engine Parts, Rocket Motors, Oil And Gas, Cryogenic Tanks
Highlight:	Inconel 718 Nickel Alloy Bar , ASTM B637 Superalloy Rod , Bright Annealed Round Bar

N07718 Inconel 718 Round Bar

N07718 (Inconel 718, UNS N07718) is a precipitation-hardenable nickel-chromium superalloy round bar designed for high-strength, high-temperature service. Supplied bright annealed and manufactured to ASTM B637, it retains excellent mechanical properties and oxidation resistance at temperatures up to 700 C, making it a leading choice for critical aerospace and energy components.

Key Features

High tensile and yield strength after aging treatment
Excellent creep and fatigue resistance at elevated temperatures
Superior oxidation and corrosion resistance in aggressive environments
Good weldability and machinability in the annealed condition

Specifications

Grade	N07718 (Inconel 718 / UNS N07718 / DIN 2.4668)
Material	Nickel-Chromium Superalloy
Form	Round Bar / Rod
Diameter	6-500mm
Length	1000-6000mm or as required
Surface	Black, Bright, Peeled, Polished, Ground
Condition	Annealed, Solution Treated, Aged
Standard	ASTM B637, AMS 5662/5663/5664, DIN 2.4668

Chemical Composition

Nickel (Ni)	50-55%
Chromium (Cr)	17-21%
Niobium (Nb)	4.75-5.5%
Molybdenum (Mo)	2.8-3.3%

Mechanical Properties

Tensile Strength: 1240 MPa Min (aged)
Yield Strength: 1030 MPa Min (aged)
Density: 8.19 g/cm3
Max Service Temperature: up to 700 C

Applications

Gas turbine and jet engine components
Rocket motors and cryogenic tankage
Oil and gas downhole and wellhead parts
Nuclear and high-temperature process equipment
