Pure Copper Plate C1100 T2 99.9% Cu Hot Rolled Sheet 0.5mm - 20mm Thickness 600mm Width

Pure Copper Plate C1100 T2 — 99.9% Copper Hot Rolled Sheet with High Electrical and Thermal Conductivity

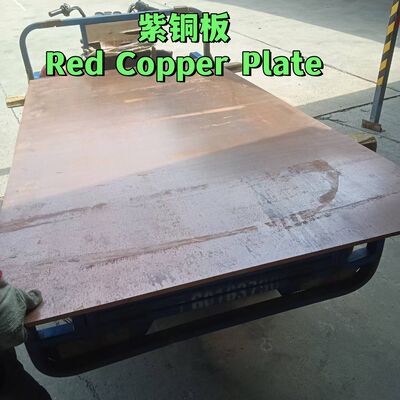

Our pure copper plate (also called red copper plate) is produced from 99.9% minimum electrolytic copper to grade C1100 / T2 / C11000. It combines the highest electrical conductivity of any commercial metal with excellent thermal conductivity, deep drawing ability and outstanding resistance to atmospheric and fresh water corrosion. The plate is hot rolled or cold rolled, annealed to the requested temper, and delivered with a bright, pickled or PVC protected surface for electrical, thermal and architectural applications.

Key Features

• 99.9% copper purity — electrical conductivity 100% IACS minimum, the benchmark for conductor material.
• Superior heat transfer — thermal conductivity 385 W/m·K, ideal for heat sinks, furnace and exchanger parts.
• Excellent cold formability — soft temper plate bends, flanges and deep draws without cracking.
• Corrosion resistant — stable in fresh water, sea air and most non oxidising media, no additional coating required.
• Precise thickness — thickness tolerance within ±0.05 mm on cold rolled plate, flat and burr free edges.
• Temper options — soft (O), quarter hard, half hard and hard, meeting different strength requirements.
• Full traceability — mill test certificate with copper content and conductivity reported for each lot.

Specifications

Chemical Composition (%, C1100 / T2)

Physical and Mechanical Properties

Typical Applications

Electrical busbars and switchgear conductors, transformer windings and terminals, earthing and lightning protection plates, heat sinks and heat exchanger tubesheets, induction furnace coils, electrode backing plates, gaskets and seals, printed circuit board base material, coin blanks, roofing and architectural cladding, cookware and industrial distillation equipment.

Processing and Packing

• Shearing, laser cutting, water jet cutting, CNC machining and edge deburring services available.

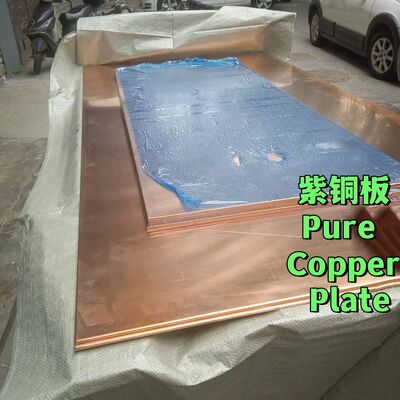

• Double side PVC film protection to prevent scratching during transport and handling.
• Standard export seaworthy packing with wooden pallet, waterproof paper and steel strapped bundle, or wooden case for thin plate.
• Mill test certificate, packing list and certificate of origin supplied with every shipment.

Tell us the thickness, width, length and temper you need, and we will confirm stock availability and the most economical cutting plan. Samples and trial orders are welcome.
