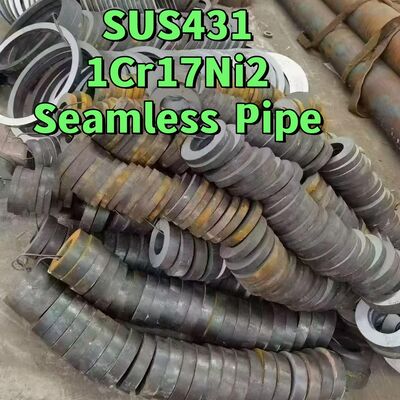

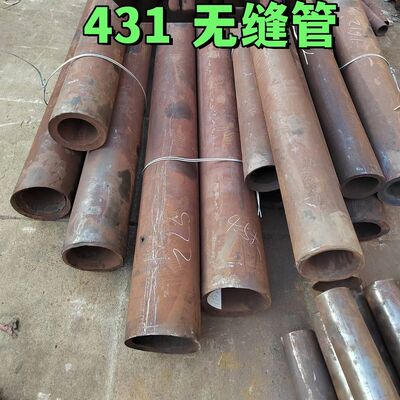

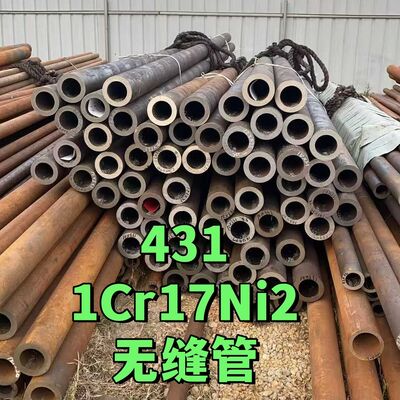

431 1Cr17Ni2 Stainless Steel Seamless Pipe 6-630mm OD Annealed Pickled for Heat Exchanger

431 Stainless Steel (UNS S43100, EN 1.4057, DIN X17CrNi16-2, GB 14Cr17Ni2, SUS431)

Brief Introduction

Type 431 is a nickel-alloyed martensitic stainless steel, heat-treatable and magnetic. Compared with 410 and 420 martensitic grades, the addition of nickel delivers superior toughness and better corrosion resistance. It can be quenched and tempered to achieve high tensile strength, good hardness and impact resistance, making it the best corrosion-resistant grade among conventional martensitic stainless steels. It is widely used for highly stressed components under moderate corrosive environments such as marine atmosphere and fresh water. Its final properties depend on heat treatment, surface finish and service conditions.

Chemical Composition (ASTM A276, wt.%)

Mechanical Properties

1. Annealed condition
   • Tensile strength: ≥750 MPa
   • Yield strength (0.2% offset): ≥450 MPa
   • Elongation: ≥15%
   • Hardness: ≤241 HBW
2. Quenched & tempered typical range
   • Tensile strength: 900–1350 MPa
   • Yield strength: 700–1080 MPa
   • Elongation: 15–20%
   • Hardness: HRC 35–50
   • Good Charpy impact toughness even at high hardness level

Applications

• Marine industry: pump shafts, propeller shafts, marine fittings, seawater exposure parts
• High-strength fasteners: bolts, studs, nuts for aircraft and heavy machinery
• Valve components: valve stems, valve bodies
• Aerospace: high-stressed aircraft fittings and structural parts
• General engineering: rotating shafts, hydraulic parts, compressor components requiring combined strength, toughness and moderate corrosion resistanceCarpenter ...

Equivalent Grades

• US: AISI 431, UNS S43100
• Europe: EN 1.4057, DIN X17CrNi16-2
• China: GB 14Cr17Ni2 (old 1Cr17Ni2)
• Japan: SUS431

Notes: All values are typical reference. Actual properties shall refer to MTC (Mill Test Certificate).

Our 431 stainless steel seamless pipe is produced from ferritic stainless steel with a fully dense, seamless structure. It is supplied in annealed and pickled condition, offering a clean surface, uniform wall thickness and reliable performance for heat exchange, fluid transport and structural applications.

Key Features

• Seamless Structure: No weld seam, high pressure resistance
• Annealed & Pickled: Clean, smooth and oxide-free surface
• Ferritic & Magnetic: Stable and cost-effective grade 430
• Excellent Mechanical Properties: Good strength and durability
• Uniform Quality: Tight dimensional tolerance along the length

Specifications

Applications

Widely used for heat exchangers, boilers, condensers, fluid transport pipelines, food processing equipment and other industrial applications requiring corrosion resistance and reliable sealing performance.

Why Choose Us

We supply 431 stainless steel seamless pipes with stable quality, competitive pricing and fast delivery. Custom diameters, wall thicknesses and lengths are available upon request. Please contact us for detailed quotations and free samples.
