S355J2WP Weathering Steel Plate 6mm 8mm 12mm EN 10025-5 Atmospheric Corrosion Resistant Sheet

S355J2WP Weathering Steel Plate 6mm 8mm 12mm EN 10025-5 Atmospheric Corrosion Resistant Sheet
S355J2WP Weathering Steel Plate 6mm 8mm 12mm EN 10025-5 Atmospheric Corrosion Resistant Sheet S355J2WP Weathering Steel Plate 6mm 8mm 12mm EN 10025-5 Atmospheric Corrosion Resistant Sheet S355J2WP Weathering Steel Plate 6mm 8mm 12mm EN 10025-5 Atmospheric Corrosion Resistant Sheet

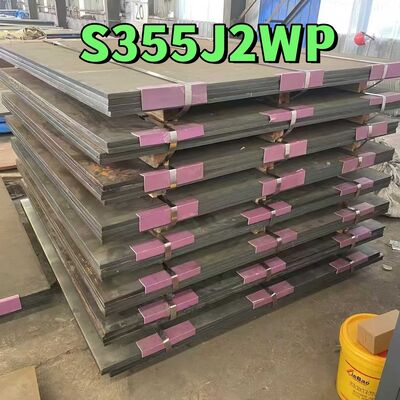

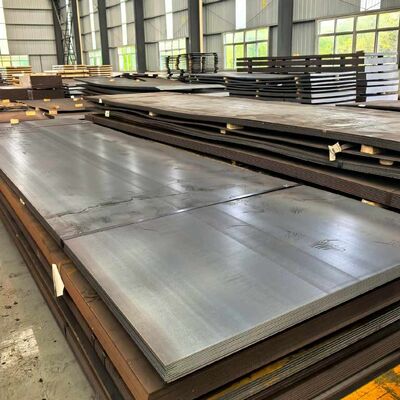

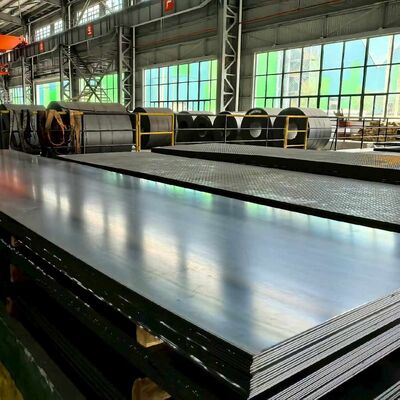

Large Image :  S355J2WP Weathering Steel Plate 6mm 8mm 12mm EN 10025-5 Atmospheric Corrosion Resistant Sheet

Product Details:
Place of Origin: China (Mainland)
Brand Name: BAOSTEEL
Certification: ISO 9001 / SGS / MTC
Model Number: S355J2WP
Payment & Shipping Terms:
Minimum Order Quantity: 5 Tons
Price: USD 650 - 950 / Ton
Packaging Details: Standard export seaworthy packing: steel strips bundled, waterproof film wrapped, wooden pallets
Delivery Time: 7-20 days after deposit
Payment Terms: T/T,L/C at sight,Western Union
Supply Ability: 5000 Tons per Month

S355J2WP Weathering Steel Plate 6mm 8mm 12mm EN 10025-5 Atmospheric Corrosion Resistant Sheet

Description
Steel Grade: S355J2WP Standard: EN 10025-5
Thickness: 1.5mm - 150mm Width: 1000mm - 3000mm
Length: 2000mm - 12000mm Surface Finish: Hot Rolled, Pickled And Oiled
Yield Strength: 355 MPa Min Tensile Strength: 470 - 630 MPa
Impact Test: 27 J At -20 Deg C (J2) Corrosion Resistance: Improved Atmospheric Corrosion Resistance, Phosphorus Alloyed Patina
Application: Bridges, Building Facades, Containers, Transmission Towers, Outdoor Steel Structures
Highlight:

S355J2WP Weathering Steel Plate

,

EN 10025-5 Corten Steel Sheet

,

Phosphorus Weathering Steel Plate

S355J2WP Weathering Steel Plate

S355J2WP is a structural weathering steel defined by EN 10025-5. The added phosphorus, together with copper, chromium and nickel, delivers improved atmospheric corrosion resistance, while the J2 impact class guarantees toughness at -20 deg C. The surface develops a dense, adherent rust layer that protects the steel and slows further corrosion, making it ideal for bare, unpainted outdoor structures.

Key Features

  • Improved atmospheric corrosion resistance per EN 10025-5
  • Yield strength from 355 MPa with good weldability
  • Charpy V-notch impact energy 27 J at -20 deg C (J2 quality)
  • Long service life with low maintenance in outdoor environments
  • Attractive weathering patina for architectural applications

Specifications

Item Range
Standard EN 10025-5
Grade S355J2WP
Thickness 1.5mm - 150mm
Width 1000mm - 3000mm
Length 2000mm - 12000mm or as required
Surface Hot rolled, pickled and oiled

Chemical Composition (typical, %)

C Si Mn P S Cr Ni Cu
0.12 max 0.75 max 0.60-1.30 0.060-0.150 0.030 max 0.30-1.25 0.65 max 0.25-0.55

Mechanical Properties

Property Value
Yield Strength 355 MPa min (thickness dependent)
Tensile Strength 470 - 630 MPa
Elongation 20% min
Impact Energy 27 J at -20 deg C

Applications

  • Bridges and welded structural components
  • Building facades and roofing
  • Shipping containers and railway cars
  • Transmission and communication towers
  • Outdoor steel structures exposed to the atmosphere

Why Choose Us

  • Mill-certified material with MTC, SGS and BV inspection available
  • Cut-to-length and custom fabrication on request
  • Stable monthly capacity and fast delivery
  • Competitive FOB / CIF pricing with reliable export packing

Contact us today to request a quotation for your S355J2WP weathering steel plate project.
