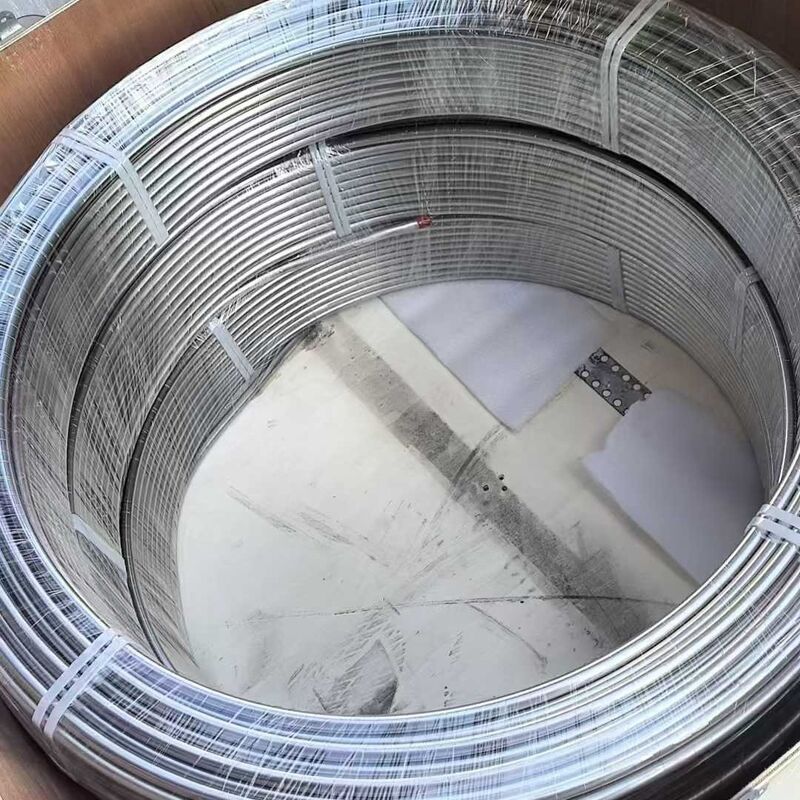

Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube

Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube
Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube

Large Image :  Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube

Product Details:
Place of Origin: China
Brand Name: MITTEL
Certification: SGS ISO MTC
Model Number: 2205 S31803
Payment & Shipping Terms:
Minimum Order Quantity: 30KGS
Price: 2.85-5.85 USD/KG
Packaging Details: Export Packing
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T
Supply Ability: 80000KGS
Contact Now

Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube

Description
Steel Grade: 2205 S31803 S32205 Standard: EN,ASTM,AISI,DIN
Application: Construction,Decoration,Industry,boiler Shape: Round.square.Rectangle
Surface: Annealed/Pickling/Polished/Brushed/Sand-blasted Finished Product Name: TP316L Stainless Steel Coiled Tubing
Thickness: 0.5-25.4mm Length: 6 Meters Or Customized
Outer Diameter: 6-630mm Technique: Seamless
Finish: Brush Polish Price Term: CIF
Trade Terms: FOB CIF CFR CNF EXWORK

Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube

We Supply Super A269 Alloy 2205 Stainless steel coiled tubing pipe/capillary tube, The manufacture of Stainless steel Super Duplex 2205 capillary tubing, which is designed to handle highly corrosive conditions and situations were high strength is required. High molybdenum, chromium and nitrogen content in Super Duplex 2205 help the material withstand pitting and crevice corrosion. The material is also resistant to chloride stress corrosion cracking, to erosion corrosion, to corrosion fatigue, to general corrosion in acids. This alloy has good weldability and very high mechanical strength.stainless steel grade Super Duplex 2205stainless steel coiled tubing /coiled tubes and A269 Duplex 2205 capillary tubing

Descriptions:2205/S31803 Control Line(Coiled Tubing),

PHYSICAL PROPERTIES

Yield strength: ≥80,000 psi

Tensile strength: ≥95,000 psi

Maximum Hardness: 30C Rockwell

OD:0.250"-0.625"

Wall Thk : 0.032"-0.065"

Length:Max. 15000M/PCS

Note: special specifications, materials and length of products can be customized according to customer requirements

Duplex 2205 Capillary Pipe CHEMICAL COMPOSITION ‐ %
Mo 3.0‐3.5
C≤0.030
Mn≤2.00
P≤0.030
Ni 4.5‐6.5
S≤0.020
Si≤1.00
Cr 21.0‐23.0

2205/S31803 MATERIAL COILED TUBING SPECIFICATIONS and PRESSURE RATING



NORMAL STAINLESS STEEL COILED TUBE SPECIFICATION

Commonly Size of stainless steel coiled tube: we can product them as your request.

Standard Stainless Steel COILED Tubing Pressure Rating and Length:



1. Material:

American Standard Material: TP304 TP304L TP304H TP321 TP321H TP316L TP316SS

TP316Ti TP347 TP347H TP317L TP309S TP310S 904L

Russian standard Material: 08X18H10 03X18H11 10X17H13M2T 03X17H13M2

12X18H10T 08X18H10T 08X18H12B

German standard material: 1.4301 1.4306 1.4541 1.4404 1.4571 1.4550

Japanese standard material: SUS304 SUS304L SUS321 SUS316L

SUS316Ti SUS347 SUS800 SUS840

Double-Grade Material: 304/304L 316/316L 321/321H 347/347H

Super duplex steel: 2205 2304 S31803 S32750

Inconel 600,Inconel 601,Inconel 625,Inconel 725,Incoloy 800,Incoloy 800H,Incoloy 800HT,

Incoloy 825,Incoloy 901,Incoloy 925Incoloy 926 Etc.

Standard Stainless Steel Coiled Tubing Pressure Rating and Length:

Stainless Steel Coiled Tubing
ITEM Grade Size
(MM)		 Length
(Mtrs)

Pressure

(Mpa)
1 316L 304L 304 625 825 2205 2507 1/8″×0.025″ 3200

80


2 316L 304L 304 625 825 2205 2507 1/8″×0.035″ 3200

100


3 316L 304L 304 625 825 2205 2507 1/4″×0.035″ 2000

100


4 316L 304L 304 625 825 2205 2507 1/4″×0.049″ 2000

100


5 316L 304L 304 625 825 2205 2507 3/8″×0.035″ 1500

80


6 316L 304L 304 625 825 2205 2507 3/8″×0.049″ 1500

100


7 316L 304L 304 625 825 2205 2507 1/2″×0.049″ 1000

80


8 316L 304L 304 625 825 2205 2507 1/2″×0.065″ 1000

100


9 316L 304L 304 625 825 2205 2507 φ3mm×0.7mm 3200

80


10 316L 304L 304 625 825 2205 2507 φ3mm×0.9mm 3200

100


11 316L 304L 304 625 825 2205 2507 φ4mm×0.9mm 3000

100


12 316L 304L 304 625 825 2205 2507 φ4mm×1.1mm 3000

100


13 316L 304L 304 625 825 2205 2507 φ6mm×0.9mm 2000

100


14 316L 304L 304 625 825 2205 2507 φ6mm×1.1mm 2000

100


15 316L 304L 304 625 825 2205 2507 φ8mm×1mm 1800

80


16 316L 304L 304 625 825 2205 2507 φ8mm×1.2mm 1800

100


17 316L 304L 304 625 825 2205 2507 φ10mm×1mm 1500

70


18 316L 304L 304 625 825 2205 2507 φ10mm×1.2mm 1500

70


19 316L 304L 304 625 825 2205 2507 φ10mm×2mm 500

100


20 316L 304L 304 625 825 2205 2507 φ12mm×1.5mm 500 80

OTHER STAINLESS STEEL COILED TUBE Specification:

Thickness 0.1 to 2mm,
Brand Imported
Material Grade 304,304L,316,316L,321,316Ti,Duplex 2205,Monel400,Inconel 625,Inconel 825
Diameter 1.5 to 15 mm OD, expecially 1/4inch, 3/8 inch used largely.



Stock size: 6.35mm*1.24mm ,8*0.5mm ,8*0.6mm,8*0.8mm, 8*0.9mm,8*1mm, 9.53*1.24mm,10*1mm,ect..
Shape Round
Unit Pipe Length we can produce at least 8000feet-10,000 feet per Length,



Also the Length can be customised by clients,
Range All sizes and length available
Size As per the requirment
Surface Bright annealed, Polished
Pipe Fluid Chemical, Water, Gas,Oil
Minimum Order Quantity 50 Feet

DIMENSIONS AND WALL THICKNESS OF STAINLESS STEEL COILED TUBE

STAINLESS STEEL CAPILLARY TUBE CHEMICAL COMPOSITION

The below table shows the chemical composition of the used for Stainless Steel COILED Tube:

STAINLESS STEEL COILED TUBE GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0

STAINLESS STEEL COILED TUBE MECHANICAL PROPERTIES

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
  º F(º C)
TP304 Solution 1900 (1040) 75(515) 30(205) 35
TP304L Solution 1900 (1040) 70(485) 25(170) 35
TP316 Solution 1900(1040) 75(515) 30(205) 35
TP316L Solution 1900(1040) 70(485) 25(170) 35

STAINLESS STEEL COILED TUBING EQUIVALENT GRADES

GRADE UNS NO DIN/WERKSTOFF
Stainless Steel Coiled Tubing 304 S30400 1.4301
Stainless Steel Coiled Tubing 304L S30403 1.4306
Stainless Steel Coiled Pipe 316 S31600 1.4436
Stainless Steel Coiled Tube 316L S31603 1.4404

SS COILED TUBE PRESSURE RATING

OD(INCH) WALLTHICKNESS(INCH) MIN TENSILE STRENGTH (PSI) THEORETICAL BURST PRESSURE * (PSI) WORKING PRESSURE (PSI) 25% OF BURST THEORETICAL YIELD POINT ** (PSI) COLLAPSE PRESSURE *** (PSI)
0.250 0.020 30,000 75,000 14,286 3,571 5,714 4,416
0.250 0.028 30,000 75,000 21,649 5,412 8,660 5,967
0.250 0.035 30,000 75,000 29,167 7,292 11,667 7,224
0.250 0.049 30,000 75,000 48,355 12,089 19,342 9,455
0.250 0.065 30,000 75,000 81,250 20,313 32,500 11,544
0.375 0.020 30,000 75,000 8,955 2,239 3,582 3,029
0.375 0.028 30,000 75,000 13,166 3,292 5,266 4,145
0.375 0.035 30,000 75,000 17,213 4,303 6,885 5,077
0.375 0.049 30,000 75,000 26,534 6,634 10,614 6,816
0.375 0.065 30,000 75,000 39,796 9,949 15,918 8,597
0.500 0.020 30,000 75,000 6,522 1,630 2,609 2,304
0.500 0.028 30,000 75,000 9,459 2,365 3,784 3,172
0.500 0.035 30,000 75,000 12,209 3,052 4,884 3,906
0.500 0.049 30,000 75,000 18,284 4,571 7,313 5,304
0.500 0.065 30,000 75,000 26,351 6,588 10,541 6,786
0.500 0.083 30,000 75,000 37,275 9,319 14,910 8,307
0.625 0.020 30,000 75,000 5,128 1,282 2,051 1,859
0.625 0.028 30,000 75,000 7,381 1,845 2,953 2,568
0.625 0.035 30,000 75,000 9,459 2,365 3,784 3,172
0.625 0.049 30,000 75,000 13,947 3,487 5,579 4,335
0.625 0.065 30,000 75,000 19,697 4,924 7,879 5,591
0.625 0.083 30,000 75,000 27,124 6,781 10,850 6,910
0.625 0.095 30,000 75,000 32,759 8,190 13,103 7,734
0.625 0.109 30,000 75,000 40,172 10,043 16,069 8,639
0.750 0.028 30,000 75,000 6,052 1,513 2,421 2,156
0.750 0.035 30,000 75,000 7,721 1,930 3,088 2,669
0.750 0.049 30,000 75,000 11,273 2,818 4,509 3,664
0.750 0.065 30,000 75,000 15,726 3,931 6,290 4,749
0.750 0.083 30,000 75,000 21,318 5,330 8,527 5,905
0.750 0.095 30,000 75,000 25,446 6,362 10,179 6,637
0.750 0.109 30,000 75,000 30,733 7,683 12,293 7,453
0.750 0.120 30,000 75,000 35,294 8,824 14,118 8,064
0.875 0.020 30,000 75,000 3,593 898 1,437 1,340
0.875 0.028 30,000 75,000 5,128 1,282 2,051 1,859
0.875 0.035 30,000 75,000 6,522 1,630 2,609 2,304
0.049 30,000 75,000 9,459 2,365 3,784 3,172
0.875 0.065 30,000 75,000 13,087 3,272 5,235 4,126
0.875 0.083 30,000 75,000 17,560 4,390 7,024 5,152
0.875 0.095 30,000 75,000 20,803 5,201 8,321 5,807
0.875 0.109 30,000 75,000 24,886 6,221 9,954 6,543
0.875 0.120 30,000 75,000 28,346 7,087 11,339 7,100
1.000 0.028 30,000 75,000 4,449 1,112 1,780 1,633
1.000 0.035 30,000 75,000 5,645 1,411 2,258 2,027
1.000 0.049 30,000 75,000 8,149 2,037 3,259 2,796
1.000 0.065 30,000 75,000 11,207 2,802 4,483 3,647
1.000 0.083 30,000 75,000 14,928 3,732 5,971 4,567
1.000 0.095 30,000 75,000 17,593 4,398 7,037 5,159
1.000 0.109 30,000 75,000 20,908 5,227 8,363 5,827
1.000 0.120 30,000 75,000 23,684 5,921 9,474 6,336
1.000 0.134 30,000 75,000 27,459 6,865 10,984 6,963
1.250 0.035 30,000 75,000 4,449 1,112 1,780 1,633
1.250 0.049 30,000 75,000 6,380 1,595 2,552 2,260

STAINLESS STEEL COILED TUBING STOCK ALSO SEARCH FOR

stainless steel Coiled Tubing trader,stainless steel Coiled Pipe astm,stainless steel coiled tubing cutter,hplc stainless steel capillary tubing,cutting stainless steel coiled tubing,stainless steel 1/16 in. capillary tubing, weight of stainless steel Capillary pipe per foot,weight of stainless steel Coiled pipe,stainless steel Coiled pipe for sale,stainless steel Coiled Pipe weight per foot,Stainless Steel Coiled tube Suppliers,stainless steel Coiled tubing grades,stainless steel Ciled tube hs code,stainless steel Capillary pipe weight chart india,stainless steel Coiled tubing metric,stainless steel Coiled tubing properties,stainless steel Coiled pipe section properties, stainless steel Coiled Tube supplier in china, exporter of stainless steel Coiled pipe 304 stainless steel Coiled pipes, stainless steel Coiled tubes distributor, stainless steel Coiled Tube manufacturer in china, ss seamless Coiled Tube stockholder in China,Stainless Steel Coiled Tubing Suppliers, seamless Coiled Tubing exporter.

3,.Production standard:

China Standard : GB/T14975/14976/13296
American Standard: ASTM A269/A312/A213/A511/A789/A790
Japanese standard: JISG3459/3463
German standard: DIN17456/17458

European standard: EN10216-5

4. The range of applications: petroleum, chemical, pharmaceutical, food, machinery, aerospace, construction, military, hardware,gas boilers, plumbing devices, ships, power plants and other industr

For example:

1)Medical Acupuncture with Capillary Coiled Tube,

2)High-pressure instrumentation with CoiledTube,

3)Coal exploration with a stainless steel Coiled Tubing

4)Thermostat with Coiled Tube

5)Beer machine with stainless steel Coiled Tube

6)Drinking water equipment with stainless steel Coiled Tube

5. Specifications:

1. Outer diameter :0.3mm-10mm Tolerance:0.005mm-0.01mm
2. Wall thickness :0.08mm-1.5mm Tolerance :0.01mm-0.02mm
3. Single length :10mm-8000mm
4. HV:150HV-450HV

Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube 0

Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube 1



Duplex 2205 Stainless Steel Coiled Tubing 1/4″ S31803 S32205 Seamless Coil Tube 2



FAQ

Q: Can you provide sample ?

A: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.



Q: How do you control quality ?

A: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q: Can you do OEM for me ?

A: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.



Q: Will you delivery the goods on time?

A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.

Tag:

ss seamless pipes,

seamless stainless steel tube,

astm stainless steel pipe

Contact Details
JIANGSU MITTEL STEEL INDUSTRIAL LIMITED

Contact Person: Mr. Gao Ben

Tel: +86-18068357371

Fax: 86-0510-88680060

Send your inquiry directly to us (0 / 3000)

About

Stainless Steel Seamless Tube

SMO 254 Seamless Stainless Steel Tube ASTM A213 UNS S31254 / 6MO / 1.4547 / Alloy 254

SUS 310S 2" Sch.160 SMLS ASTM A312 TP310S Stainless Steel Tubing

2205 Duplex Astm A790 Stainless Steel Pipe UNS S31803 UNS S32205 S322053 Seamless Tube

Stainless Steel Plates

316L DIN1.4404 Stainless Steel Plate ASTM A240 Grade

14Cr17Ni2 (1.4057) 431 Martensitic Hot Rolled Stainless Steel Plate 8-100mm Cutting By Laser

S31254 PLATE 254 SMO Hot Rolled Plate SA 240 UNS S31254 Plate SS 254 SMO F44 Plates

LEAVE MESSAGE

Privacy Policy | China Good Quality Stainless Steel Sheet Supplier. © 2014 - 2026 JIANGSU MITTEL STEEL INDUSTRIAL LIMITED. All Rights Reserved.
