Product Details:
|
| Material: | Brass,copper | Metal Type: | Copper,Pure Copper With Copper Handle |
|---|---|---|---|
| Color: | Copper Color In Red | Service: | OEM ODM Customised |
| Application: | Industry,Auto Parts,Machinery Partsdustry | ||
| High Light: | C11000 Copper Sheet Plate,600*1500mm Copper Plate,UNS C110-H02 Copper Sheet Plate |
||
ASTM C10100 C11000 Copper Sheet / Copper Plate UNS C110-H02 2.5 Thick 600*1500mm
| 1. | Item | C1011 C10100 TU0 OFE Oxygen-free Electronic Copper Plate | |
| 2. | Standard | ASTM,AISI,EN,BS,JIS,ISO,GB | |
| 3. | Material |
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910, C10920,C10930,C11000,C11300,C11400,C11500,C11600,C12000, C12200,C12300,TU1,TU2,C12500,C14200,C14420,C14500, C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000 ,C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400, C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620, C71000,C71500,C71520,C71640,C72200,etc. |
|
| 4.
|
Specifications | Thickness | 0.1mm~200mm |
| Width | 6mm~2500mm | ||
| 5. | Length | 10mm~12000mm, or as required. | |
| 6. | Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required. | |
| 7. | Price Term | Ex-work, FOB, CFR, CIF, etc. | |
| 8. | Payment Term | T/T, L/C, Western Union, etc. | |
| 9. | Delivery Time | According to order's quantity. | |
| 10. | Package |
Export standard package: bundled wooden box, suit for all kinds of transport, or be required. |
|
| 11. | MOQ | 300kg | |
| 12. | Application |
Copper products are widely used in aviation, aerospace, ships, military industry, metallurgy, electronics, electrical, mechanical, transportation, construction and other fields of the national economy. |
|
| 13. | Contact | If you have any question, please feel free to contact me. | |
| Alloy | Chemical Composition | ||||
| QB | JIS /ASTM | Cu | P | O | Other |
| T2 | JIS C1100 | 99.9 | 0.015-0.040 | - | balance |
| TU | ASTM C10300 | 99.95 | 0.001-0.005 | - | balance |
| TP1 |
JIS C1220 ASTM C12200 |
99.9 | 0.004-0.012 | - | balance |
| Grade(China) | Grade(Japan) | Temper | Vickers Hardness (HV) | Tensile strength(Mpa) | Elongation(%) |
| T2/T3/TP1/TP2 |
C11000/C1201 C1220.etc. |
M | - | ≥290 | ≥40 |
| Y4 | 75-125 | 325~410 | ≥35 | ||
| Y2 | 85-145 | 340~460 | ≥25 | ||
| Y | 105-175 | 390~530 | ≥13 | ||
| T | - | ≥490 | - |

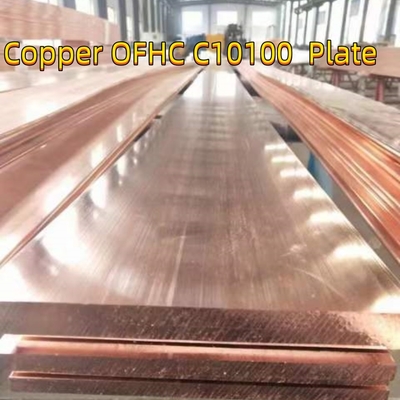

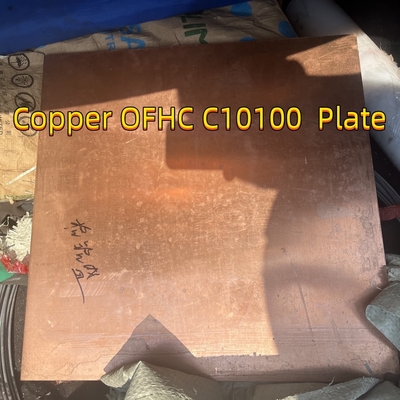

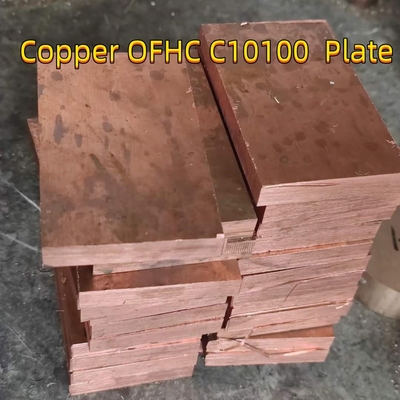

C10100 Oxygen Free High Conductivity Copper (OFHC)
C10100 OFHC Copper is produced by the direct conversion of selected refined cathodes and castings under carefully controlled conditions to prevent contamination of the pure oxygen-free metal during processing. The method of producing OFHC copper ensures extra high grade of metal with a copper content of 99.99%. With so small a content of extraneous elements, the inherent properties of elemental copper are brought forth to a high degree.
Characteristics of OFHC copper are:
FAQ:
Q1:How long time is the shortest delivery?
A1:For stock material,the delivery time is just 3-5 working days.
And for customized product,it will takes 25-35 working days based on different size and quantity.
Q2:Can you supply the sample?Does it free or not?
A2:For partial materials,we can supply the sample free(without the freight charge).
If you want to know more details,please contact our sales online.
Q3:What's the terms of payment?
A3:We can accept T/T,100% irrevocable LC at sight,Western Union,etc,
Q4:How to ensure the quality?
A4: We can supply QC,such as MTC,SGS, UT Certificate,etc.
Besides,we have Trade Assurance Amount from Alibaba Group.
If our quality is unapproved,we need and will refund full payment to customers
Q4.How can we get your price ?
We need below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
