Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations

Certification
china JIANGSU MITTEL STEEL INDUSTRIAL LIMITED certification
china JIANGSU MITTEL STEEL INDUSTRIAL LIMITED certification
Customer Reviews
this is the second order l buy this company ,quality is very good ,same as europure quality .we will go on ccooperate with this company .

—— Andrew Greg - Turkey

200 ton Stainless steel sheet is arrived on 10th Oct 2014 , the quality is very good.,deliver time is very fast It's very lucky we find this factory

—— Mechile Kilar Chard - Brazial

We Have Cooperate With this Factory Many Years , Everything Goes Very Well.l Like This Factory !

—— Tony Hilton - Poland

This is Our Thrid Time Buy from Mittel,Quality is Very Goods ,We Are Glad to Find This Reliable Factory

—— Natalya Ugay-Russia

Quality is very good and delivery time very fast ,we want to do long terms business with this company

—— Pongpol Pluemsati-Thailand

I'm Online Chat Now

Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations

Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations
Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations

Large Image :  Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations

Product Details:
Place of Origin: China
Brand Name: TSING SHAN
Certification: ISO SGS MTC
Model Number: C1100 C1200 C1220
Payment & Shipping Terms:
Minimum Order Quantity: 10KGS
Price: 13.2-20.5 USD/KG
Packaging Details: Export Packing
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS

Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations

Description
Length: Custom As Request Dimensions: Customizable
Samples: Available Service: Drawing Custom
Advantage: High Ductility Shape: Round Square
Size: Customized Size Sample: Avaliable
Availability: Abundant And Widely Available Transport Package: Standard Seaworthy Export Packing
Feature: Eco-Friendly,Stocked,with Copper Plated Type: Beer Mugs,Drinkware Mug
Form: Sheets, Rods, Wires, Tubes
Highlight:

99.9% pure red copper bar

,

150mm OD copper earthing rod

,

red copper rod for electrical installations

Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations



Product Description

ASTM C10100 C11000 C12000 Copper Sheet / ETP DHP Copper Plate
1.5mm copper sheet plate sheet prices 4ft x 8 ft

Pure copper is a soft metal. When the surface is just cut, it is red orange with metallic luster, and the simple substance is purplish red. Good ductility, high thermal conductivity and conductivity, so it is the most commonly used material in cables and electrical and electronic components. It can also be used as building materials and can form many kinds of alloys.
Copper alloy has excellent mechanical properties and low resistivity, among which bronze and brass are the most important.
In addition, copper is also a durable metal, which can be recycled many times without damaging its mechanical properties.

Copper Sheet, Copper Plate,Copper Bar
Material C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,
C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,
C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,
C44300,C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,
C70620,C71000,C71500,C71520,C71640,C72200,etc.
Specifications Thickness 0.1mm-200mm
Width 10mm-2500mm
Length 10mm~12000mm,or as required.

 CHEMICAL COMPOSITION

Grade Chemical Composition(%)
  GB JIS Cu+Ag P Bi Sb As Fe Ni Pb Sn S Zn O
Refined Copper T1 C1020 99.95 0.001 0.001 0.002 0.002 0.005 0.002 0.003 0.002 0.005 0.005 0.02
T2 C1100 99.9 - 0.001 0.002 0.002 0.005 - 0.005 - 0.005 - -
T3 C1221 99.7 - 0.002 - - - - 0.01 - - - -
Oxygen Free Copper TU0 C1011 99.99 0.0003 0.0001 0.0004 0.0005 0.001 0.001 0.0005 0.0002 0.0015 0.0001 0.0005
TU1 C1020 99.97 0.002 0.001 0.002 0.002 0.004 0.002 0.003 0.002 0.004 0.003 0.002
TU2 99.95 0.002 0.001 0.002 0.002 0.004 0.002 0.004 0.002 0.004 0.003 0.003


PHYSICAL PROPERTIES

Grade Temper Hardness(HV) Tensile strength(Mpa) Elongation(%)
C1000 C1200 C1220 etc. Soft <60 >205 ≥40
1/4H 55-100 217-275 ≥35
1/2H 75-120 245-345 ≥25
H 105-175 >295 ≥13

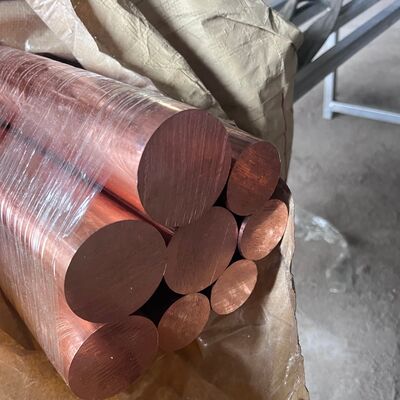

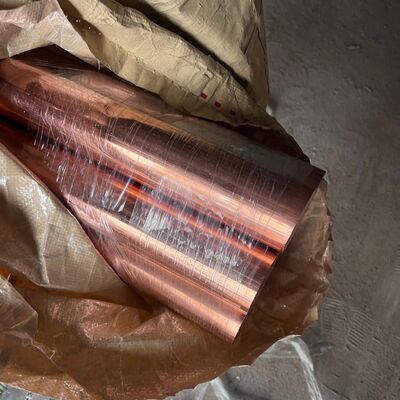

PHOTO:

Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations 0

Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations 1

Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations 2Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations 3Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations 4

Pure 99.9% Red Copper Bar 150mm OD Red Copper Earthing Rod For Electrical installations 5



APPLICATION
1) Further making utensil.
2) Solar reflective film
3) The appearance of the building
4) Interior decorating:ceilings,walls,etc.
5) Furniture cabinets
6) Elevator decoraction
7) Signs,nameplate,bags making.
8) Decorated inside and outside the car
9) Household appliances:refrigerators,microwave ovens,audio equipment,etc.
10) The consumer electronics:mobile phones,digital cameras,U disk,etc.





FAQ

Q: How about the MOQ? If my first order qty is small, will you accept?
A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company.

Q: What is your payment terms ?
A: Commonly two payment term for new customers: 1) 30% T/T as deposit , 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight;If you need any other terms, pls feel free to contact us too, we will try our best.

Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from new production, delivery 7 days.

Q: How about the samples ? is it free or extra fees?
A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.

Q: How to control and guarantee your shipment quality?
A: 1) All our factories are ISO9001, CE certified facility; 2) World famous origin mills as TISCO, Baosteel. 3) Ex factory inspection by our own laboratory. 4) SGS/BV Third party inspection before delivery.
