Factory sale stainless steel pipe sizes for thin wall steel pipe
|
|
Grade
|
201/202/304/304L/316/316L/309S/310S/S31803/S32750/410/420/430 etc.
|
|
Condition:
|
Hot Rolled & Pickled, Hot Rolled Black Bar,Cold Drawn,
|
|
Wall Thickness
|
2.5-30mm or as your requirement
|
|
Out diameter
|
6-1200mm or as customer's requirements
|
|
Length
|
6000mm or as your requirement
|
|
Size(round pipe)
|
9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6, 14.3, 127, 133, 159, 168, 219 mm or customized
|
|
Size (square pipe)
|
10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10,23×10,24×12,25×13,36×23,40×20,50×20,60×15,75×45,80×60,95×45,100×60,150×100 mm or customized
|
|
Process method
|
Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished
|
|
Surface
|
A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum
E : HL brushed & mirror (two kinds of finishing for one pipe)
|
|
Type
|
Seamless and Welding
|
|
End Type
|
Plain End, Butt Weld End,Beveled End
|
|
Shape
|
Round , Square, Rectangular pipe
|
|
Quality assurance
|
Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable.
|
|
Payment
|
30% as deposit by T/T, balance will be paid by T/T against the copy of B/L
|
|
Serive
|
24-hour reply to customer's enquiry
|
|
Packing
|
Nylon bag or according to client's requirement
|
|
Delivery time
|
10-15 working days after received T/T or L/C deposit.
|

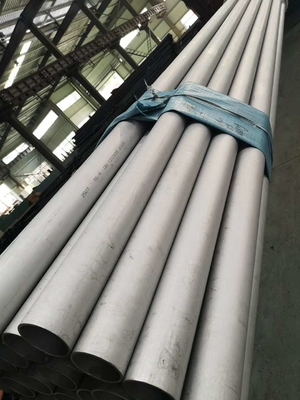

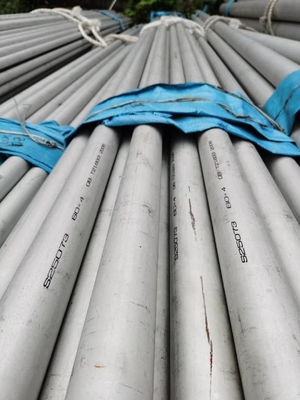

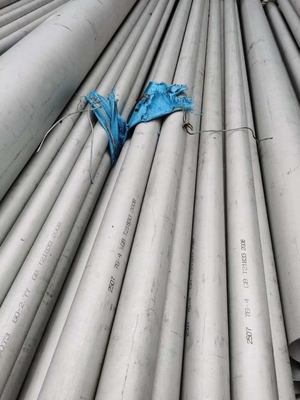

Sanitary Stainless Steel Seamless Pipe Outside and Inside Polished Sanitary Stainless Steel Tubing
Product Name: 304 seamless stainless steel sanitary tubing
Standard: ASTM A270, A269, A312, A249 ,A 554,A358,A409 ,A778,A789, A790,A928 , EN 10217, EN 10296,DIN 17456, DIN 17458, JISG3459, JIS G3463, JIS G3467, JIS G3448,JIS G3468
Material: TP316/316L/316H, 304/304L/304H, 321/321H, 317/317L, 347/347H, 309S, 310S, 2205, 2507, 904L (1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4541, 1.4833, 1.4878, 1.4550, 1.4462, 1.4438, 1.4845)
Nominal Dia: 3/8" to 80" NB for welded pipe ,Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS
All dimensions are in accordance with ANSI B36.19 and ANSI B36.10
Size range for tube:OD 1/4" to 80" (6mm to 2000mm),THk 0.02" to 2" (0.5mm to 50mm)
Length:20 m(Max) or as your requirement
Process: EFW (argon arc welding /TIG, plasma arc welding/PAW, and submerged arc welding/SAW)
Finish: Mirror polished, bright annealing, Annealed & pickled,
Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end
Inspection & Test
| 1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
| 2.100% Dimension & Visual Examination |
| 3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
| 4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
| 5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
| 6.Straightness Test (optional) |
| 7.Roughness Test (optional) |
| 8.Intergranular Corrosion Test(optional) |
| 9.Impact Test (optional) |
| 10.Grain Size Determinations (optional) |
| NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
