Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate

Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate
Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate

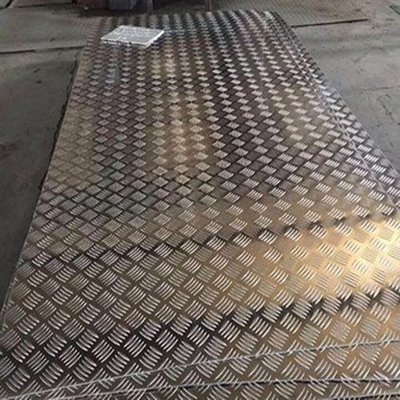

Large Image :  Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate

Product Details:
Place of Origin: China
Brand Name: MITTEL
Certification: SGS MTC ISO
Model Number: 6061
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 3.05 USD/KG
Packaging Details: Export Packing
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS

Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate

Description
Material: Aluminum Alloy Feature: Disposable
Drinkware Type: Drink Cups Product Name: Foundry Casting
Metal Type: Aluminum Color: Natural Polish
Capacity: 6 Sizes For Choice Service: OEM/ODM For Copper Foundry Products
Application: Auto Parts Type: Travel Mugs
Surface Treatment: Brushing Style: Modern Creative Popular
Usage: Home Logo: Customized Logo Acceptable
Process: Bending Accessories: With None
Dimensions: Customized Sizes,Customer's Drawings
High Light:

copper pipes

,

brass tube

Aluminum Sheet Tread Sheets 5 Small Bar 1050 H244, Paper Interleave Aluminum Checkered Plate

Diamond Alumina | Aluminio | Aluminum Checker coil Plate | Aluminium Tread Plate 5 Bar FIVE BAR

Aluminum checker plate is also called treadplates,because of its raised patterns.



Tread plate—also known as floor plate, diamond plate, or diamond tread plate—provides a durable, anti-slip surface for dock surfaces, vehicle running boards, and more. Because it is highly resistant to weathering, corrosion, and chemicals, tread plate requires no maintenance or surface treatments.


Aluminum diamond plate sheet coil, also known as aluminum checker plate, aluminium tread plate and aluminium floor plate, is a type of lightweight metal stock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless. Aluminum diamond plates sheets coils are normally made by machine rolling, make a raised and pressed diamond design.
The added texture reduces the risk of slipping, making aluminum diamond plate sheet a solution for stairs, catwalks, walkways, and ramps in industrial settings. Its non-skid properties mean that aluminum diamond plate sheet coil is frequently used on the interior of ambulances and on the footplates of firetrucks. Additional applications include truck beds and trailer floors

Product Specification
Grace 1000 Series:1050 1060 1070 1100 1200 1235 etc pure aluminum
2000 Series: 2011, 2014, 2017, 2024 etc Aluminum copper alloy
3000 Series: 3003 3004 3005 3104 3105 3A21 etc Aluminum manganese Alloy
4000 Series: 4A01 4045, 4343 etc Aluminum silicon alloy
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc Aluminum magnesium alloy
6000 Series: 6061 6063 6082 6A02 etc Aluminum magnesium silicon alloy
7000 Series: 7075, 7005.7050,ect Aluminum magnesium silicon copper alloy
8000 Series: 8006 8011 8079 etc Aluminum foil alloy
Thickness 0.20-350mm
Width 2400mm max
Length 12000max
Grade 1000,3000,4000,5000,6000,7000,8000series
Temper
F processing state
H strain hardening state
O annealing
T heat treatment state
H112 pure state of strain hardening, adjustment has been made to degree of strain hardening and annealing
T4 solid solution treatment and natural efficiency to achieve sufficient stability condition
T5 artificial aging condition of the reentry after high temperature thermal cooling
T6 artificial aging state after solid solution treatment
Surface

1)Brushed aluminum

2)Printed aluminum

3)Embossed aluminum

4)Color coated aluminum

5)Anodized aluminum

6)Powder coated aluminum

Product Manufacturing
Ingot + Master Alloy → Melting → Holding Fumace → Continuous Casting → Cold Rolling(Mediate Annealing) → Horizontal shear → Annealing → Aluminum Sheet

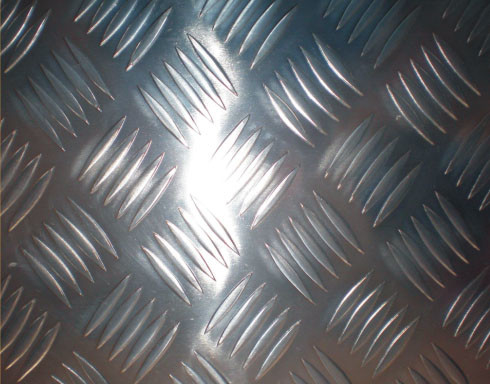

Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate 0


Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains

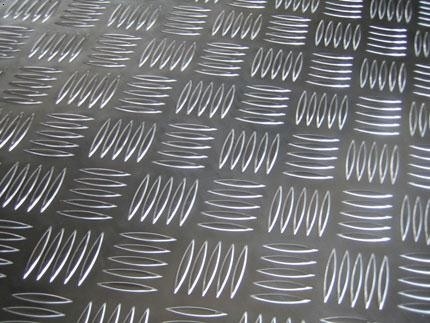

Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate 1

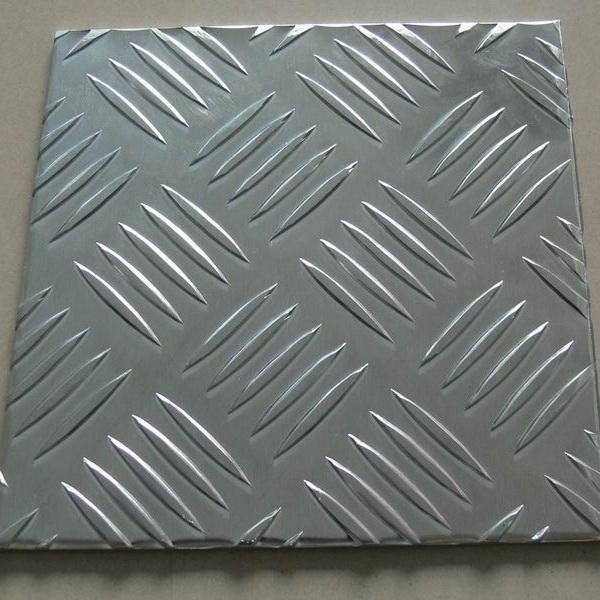

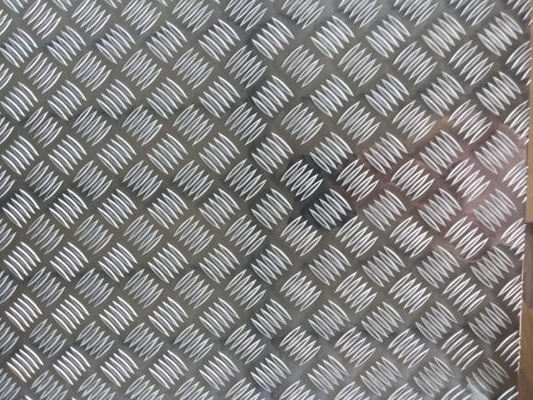

Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate 2Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate 3Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate 4Tread Aluminum Sheet 5 Small Bar 1050 H244 Paper Interleave Aluminum Checkered Plate 5
