Product Details:
|
| Material: | Brass Red Copper | Metal Type: | Copper,Pure Copper With Copper Handle |
|---|---|---|---|
| Thickness: | 0.3-50mm | Width: | 20-1500mm |
| Length: | 2000-12000mm | Service: | OEM ODM Customised |
| Application: | Industry,Auto Parts,Machinery Parts,Machinery Partsdustry | ||
| High Light: | Cu-Dhp Pure Copper Plate,C1100 Pure Copper Plate,C17200 Copper sheet Plate |
||

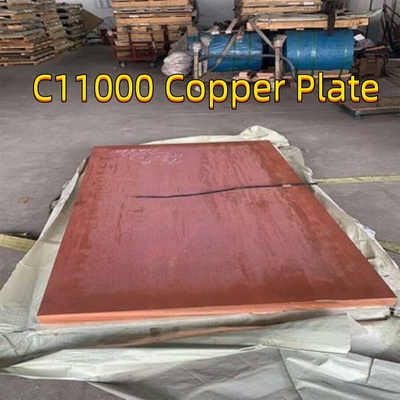

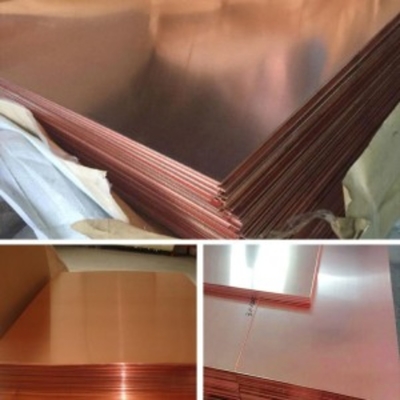

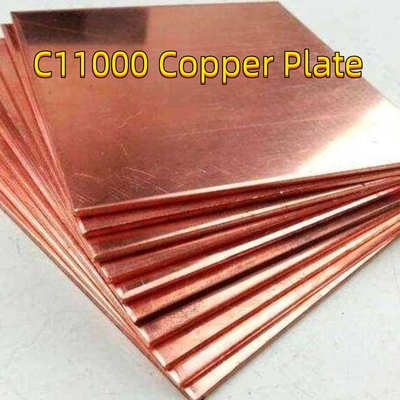

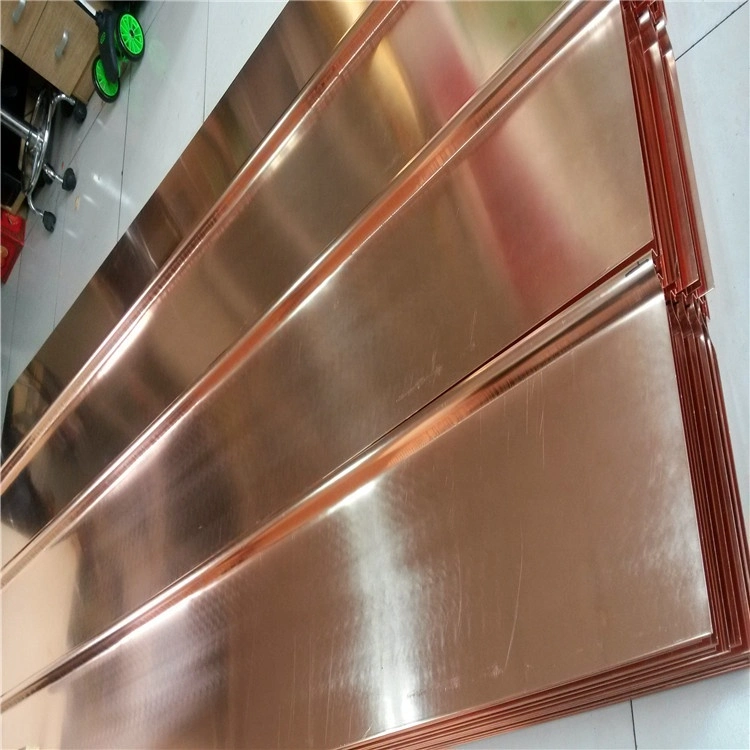

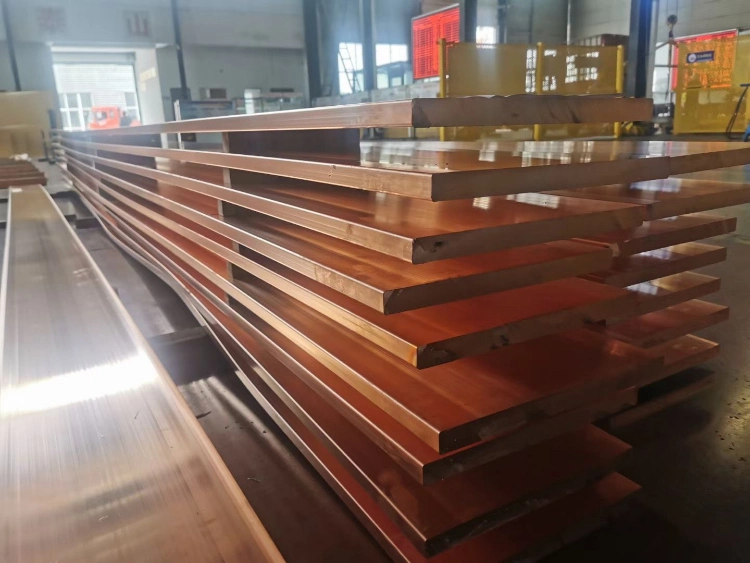

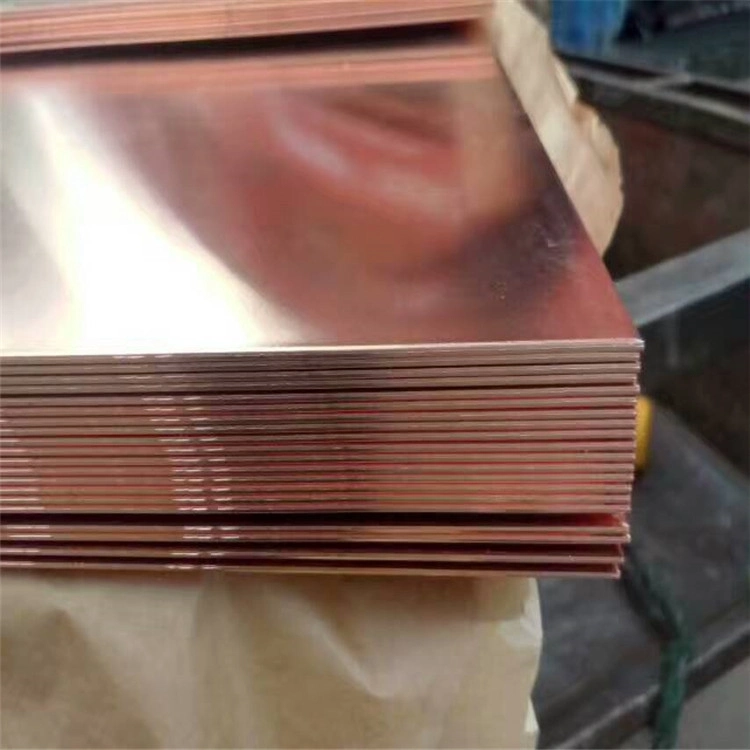

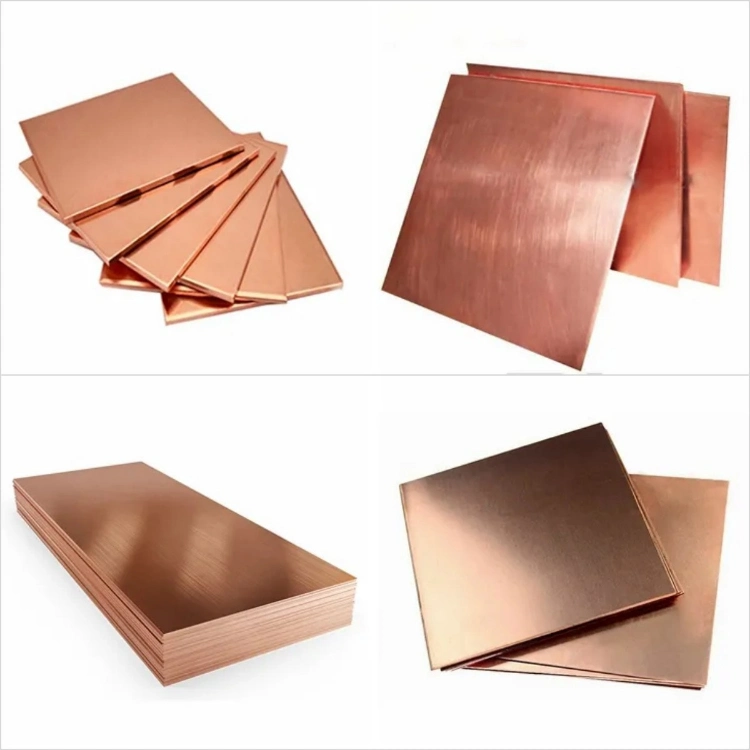

C11000 1/2H C1011 C1100 C12200 C71500 Cu-Dhp C61400 C17200 Pure Copper Plate 0.5*600*2000
| Product introduction | ||||||||||||
| C10200 oxygen-free copper has excellent cold and hot workability. Good malleability. It can be used as lead-in line and anode of bus, waveguide, electron tube, vacuum seal, transistor component, klystron, microwave tube and rectifier. | ||||||||||||
| Properties of C10200 copper; | 1. No hydrogen embrittlement, 2. High conductivity, 3. Machinability and welding performance, 4. Good corrosion resistance and low temperature performance. |
|||||||||||
| The use of C10200 copper: | C10200 oxygen-free copper has high purity, excellent electrical and thermal conductivity, no "hydrogen disease" or little "hydrogen disease"; Good processability, welding, corrosion resistance and corrosion resistance. TU2 oxygen-free copper is used for electric vacuum devices, instruments and meters. | |||||||||||
| Mechanical properties: | Tensile strength: (σb,N/mm² )≥275 Density: 8.9 |
|||||||||||
| technical parameter | ||||||||||||
| Outside diameter: | 20-450mm | |||||||||||
| Wall thickness: | 0.2-40mm | |||||||||||
| Product characteristics | High purity, fine structure, low oxygen content, good electrical conductivity and good hot spot conductivity, processability, ductility, corrosion resistance and weather resistance. | |||||||||||
| GB standard | GB /T 11091-2014 | |||||||||||
| American Standard | ASTM B68-1992, | |||||||||||
| German standard | DIN EN/DIN-OF-Cu | |||||||||||
| Typical product | Electric vacuum devices, instruments, meters, | |||||||||||
| Chemical Composition | ||||||||||||
| ingredient | Fe | P | S | Ni | Cu | As | Pb | Zn | Sn | Bi | Sb | O |
| minimum value | - | - | - | - | 99.95 | - | - | - | - | - | - | - |
| maximum | 0.004 | 0.002 | 0.004 | 0.002 | - | 0.002 | 0.004 | 0.003 | 0.002 | 0.001 | 0.002 | 0.003 |
| comparison table | ||||||||||||
| China | Japan | United States of America | International organization for standards | Germany | Britain | |||||||
| GB | JIS | ASTM | ISO | DIN EN/DIN | BS EN/BS | |||||||
| TU2 | C1020 | C10200 | Cu-OF | OF-Cu | 103 | |||||||
| Product Name | copper plate copper sheet | Standard | GB ASTM DIN JIS |
| Material | C11000 C10200 C12000 C12100 | Specfication | Thickness:0.1-120mm, Width:10-2500mm or customized Length:600-2500mm |
| Surface | Mill polished, bright, mirror, hair line. brush, checkered, antigue. sand blast, etc | Sample | Available |
| OEM | Accept | MOQ | 300kg |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching | Cu (Min) | 99.9% |
| Price Term | EX-Work.FOB.CFR.CIFCNF | Payment Term | 30% T/T deposit,70% payment before delivery |
| Ultimate Strength (2 MPa) | 220~400 | Elongation (%) | 40 |
| Transport Package | Standard seaworthy packing | Trademark | YINGYI |
| Origin | China | Application | Decoration, carving, villa exterior wall, hydraulic engineering, handicrafts, tableware, electronic products, circuit boards, wires, radiators,etc. |
