Product Details:
|
| Application: | Construction,Decoration,Industry,boiler | Standard: | DIN,ASTM,JIS,AISI |
|---|---|---|---|
| Steel Grade: | 304 304L 316 316L 310S 321 | Type: | Seamless |
| Welding Line Type: | Seamless | Thickness: | 1mm-20mm |
| Length: | 3000mm~6000mm,Customer Request | Shape: | Round.square.Rectangle |
| Outer Diameter: | 6-762mm | Technique: | Cold Drawn |
| Surface: | Annealing,pickling,polishing | Material: | 200 Series/300 Series/400series |
| Grade: | 304L 316 316L 310s 321 321H 347 347H | Finish: | Polished,Ba,pickled |
| High Light: | Annealed Pickled Stainless Steel Seamless Pipe,ASTM A269 Stainless Steel Seamless Pipe,12*1.5 Stainless Steel Seamless Pipe |
||

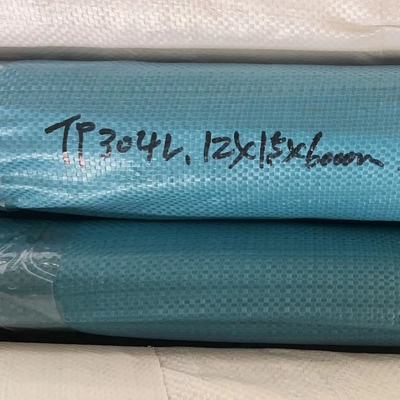

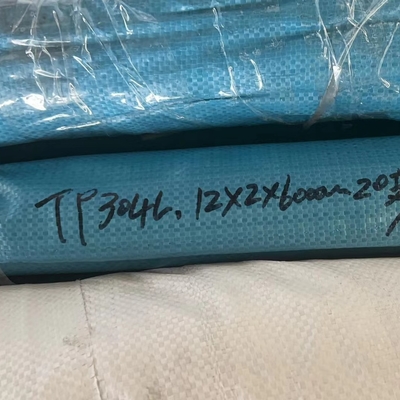

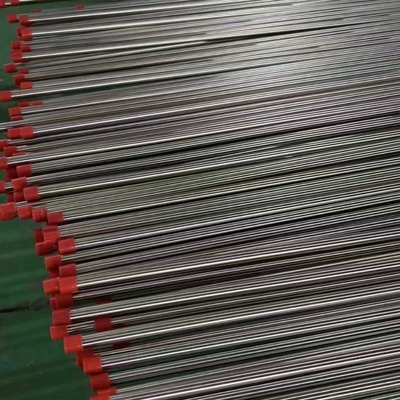

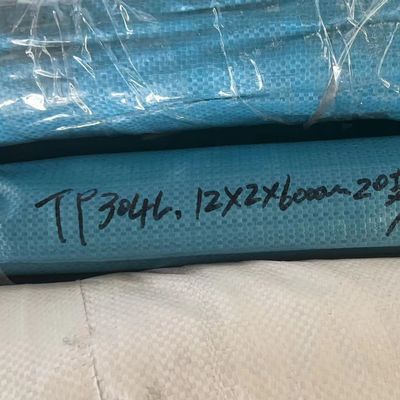

SUS304 TP304 12*1.5 Stainless Steel Seamless Pipe Bright Annealed BA Surface
Our quality policy is to continuously improve the quality management system, provide high-performance seamless 1/4 Stainless Steel Instrument Tube, cold drawn Electro Polished Pipes, seamless Natural Gas Annealed Stainless Steel Pipes and constantly meet customers' demands and expectations for product quality. We embody our corporate social responsibility in a series of actions to improve our own connotation and actively return to society. Communication and execution, team innovation, satisfaction and win-win are our business philosophy and purpose.
Seamless stainless steel bright annealed tube is a kind of heat treatment and surface delivery requirements in the production process of steel pipes. The heat treatment is in the state of protective gas (H2+N2 mixed gas), and the temperature control range is 1010-1100 degrees Celsius. It is seamless for clean cleaning. The stainless steel tube is annealed. This heat-treated stainless steel pipe has excellent surface quality, good mechanical properties, and strong bending plasticity, which is convenient for customers to perform various bending, welding, Lok connection and other processing.
Bright annealing heat treatment can be applied to the manufacturing process of instrument pipes, hydraulic pipes, high-pressure pipes, precision pipes, fluid conveying pipes, high-purity gas/bulk gas conveying pipes, automobile pipes and other industries. The inner surface of bright annealed steel pipes is clean and free. Oil, no impurities, no falling particles, corrosion resistance and other properties can meet the pollution-free transportation of various fluid media.
Details of the bright annealing tube manufactured by KC-SCT
Strict production control system:
-Cold rolled or cold drawn control tolerance
-Excellent oil control and grease removal technology
-Strictly monitor the natural gas heat treatment process and bright heat treatment.
-Environmental protection and efficient pickling passivation + neutralization + cleaning
-A rigorous quality inspection team (dimension inspection, surface inspection, non-destructive inspection, mechanical performance inspection, metallographic inspection)
1. Material
| Standard | Grade | |||||
| UNS | S31603 | S31600 | S31635 | S30400 | S30403 | S32100 |
| ASTM/ANSI | TP316L | TP316 | TP316ti | TP304 | TP304L | TP321 |
| ISO/EN | 1.4404 | 1.4401 | 1.4571 | 1.4301 | 1.4306 | 1.4541 |
| JIS | SUS316L | SUS316 | SUS | SUS304 | SUS304L | SUS321 |
| GB | S31603 | S31608 | S31668 | S30408 | S30403 | S32168 |
The materials listed above are often manufactured, and materials within national standards can also be provided for manufacturing.
2. Standard
| Standard | ||||||||
| ASTM/ANSI | A269 | A270 | A312 | A213 | A789 | A632 | A790 | |
| ISO/EN/DIN | EN 10305-1 | EN 1127 | DIN 11850 | DIN 2470 | DIN 10216-5 | DIN 10208 | DIN 10297-2 | ISO 2037 |
| JIS | G3447 | G3459 | G3463 | G3464 | G7222 | |||
| GB | 14976 | 13296 | 18984 | 3090 | 3093 | 3639 | ||
3. Specification
| Standard | Diameter | Wall thinkness | |||
| in | mm | in | mm | ||
| ASTM | A269A270A632A213 | 1/8"~2" | 3.18~50.8 | 0.15"~0.12" | 0.4~3.05 |
| A312 | 1/8"~2" | 10.3~60.3 | 5S,10S,40S | ||
| ISO/EN/DIN | 1127 | / | 3.0~60.3 | / | 0.4~4.0 |
| JIS | G3447 | 1/2"~2" | 12.7~50.8 | 1.2~2.0 | |
| G3459 | 1/8~2(6A~50A) | 10.5~60.5 | 5S,10S,40S | ||
| G3463G3464 | / | 15.9~60.3 | / | 1.2~4.0 | |
| GB | 14976 | / | 3.0~60.3 | / | 0.4~4.0 |
#It is possible to customize pipes with outside diameter and wall thickness not specified in the standard;
4. Tolerance
The tolerances of the outer diameter and wall thickness of the pipes produced in accordance with the standards can also be agreed with the purchaser separately;
Special (non-standard) pipe tolerances for outer diameter and wall thickness can be more precise.
5. Surface delivery status
Bright annealing: atmosphere protection heat treatment, the inner and outer surfaces are bright and smooth.
Bright annealed tube customization can make requirements for the roughness or polishing of the inner and outer surfaces:
| Inside surface | Outside surface | ||||
| Roughness (BA) | Polishing mesh (MPBA) |
Roughness | Polishing mesh | ||
| ≤Ra0.4um | ≤Ra0.8um | 240# 320# 400# |
≤Ra0.4um | ≤Ra0.8um | 240# 320# 400# |
The accuracy of the inner and outer surface roughness of bright annealed steel pipes can be met by mechanical polishing or without mechanical polishing;
6. Clean cleaning process
The steel pipe manufacturing process adopts ultrasonic + degreasing cleaning process to effectively remove various pollutants generated in the pipeline manufacturing.
7. Non-destructive inspection
Each stainless steel pipeline is tested according to the standard of water pressure testing and eddy current testing:
Hydrostatic pressure detection: maximum pressure 20Mpa, time 5 seconds
Eddy current flaw detection: Perform inspection according to standard sample tubes, and comply with standards such as ASTM, JIS, ISOENDIN, GB, etc.
8. Other inspections
Perform random inspections of stretching, flattening, flaring, grain size, hardness, etc. according to the standard.
With advanced technology, relentless pursuit for innovation and dedicated engineers, we have become the professional TP304/304L 8mmx1mm Bright Annealing Seamless Stainless Steel Tube for Instrument, Chromatography, Hydraulic manufacturer with a full range of products line. 'Developing customers with integrity, supplying high quality products with the most competitive price and the shortest delivery time, serving them with heart and soul' is the philosophy of our company. Welcome your enquiry! We continue to absorb and introduce various professional technical and management talents, hoping to enrich the management team and strengthen technical productivity, so that our company can achieve long-term development.
Hot Tags: bright annealed tubing, China, suppliers, manufacturers, factory, wholesale, price, cost, size, seamless, cold drawn, made in China, seamless Annealed Pickled Stainless Steel Pipes, cold drawn 316L Medical Tubes, seamless Pressure Stainless Steel Precision Tubes, seamless Hydraulic Tube, Oil And Gas Stainless Steel Hydraulic Tube SIZE, cold drawn Stainless Steel Tubes
