Product Details:
|
| Application: | Construction,Industry,boiler,Chemical | Standard: | DIN,ASTM,JIS,AISI |
|---|---|---|---|
| Steel Grade: | 300 Series S31635 | Type: | Seamless |
| Welding Line Type: | Seamless | Thickness: | 1-95mm |
| Length: | 1-12m Or As Your Requirements | Shape: | Round.square.Rectangle |
| Outer Diameter: | 6-630mm | Technique: | Cold Drawn |
| Surface: | Annealing,pickling,polishing | Material: | 316Ti |
| High Light: | Thread Male Stainless Steel Seamless Tubes,95mm Stainless Steel Seamless Tubes,S31635 Stainless Steel Seamless Tubes |
||

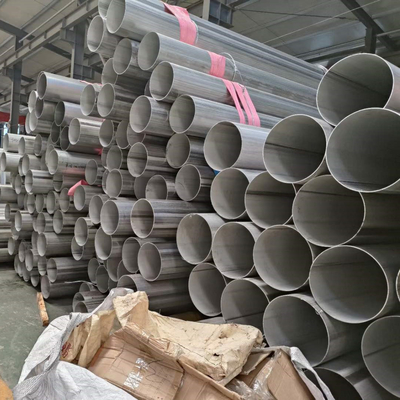

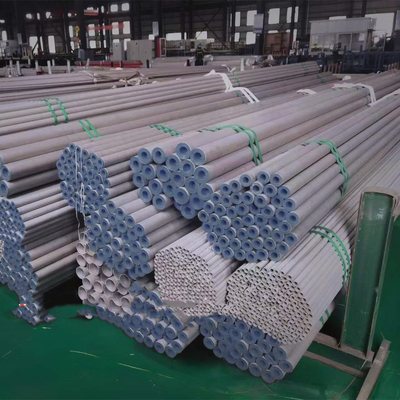

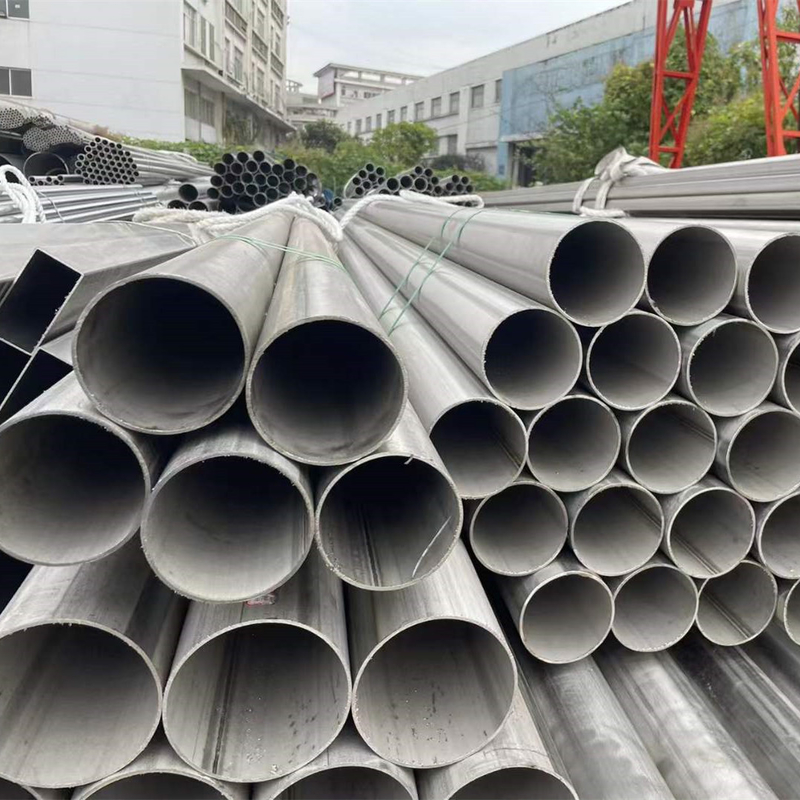

Stainless Steel Pipe/Tube.
Stainless steel pipe is an economical cross-section steel and an important product in the steel industry. It can be widely used in life decoration and industry. Many people on the market use it to make valves, fittings etc. The common materials are 304 and 316L.
|
Product Name
|
Stainless steel tube / pipe
|
|
Type
|
Seamless or Welded
|
|
Material (ASTM)
|
201 202 304 304L 309s 310s 316 316L 316TI 317L 321 904L S32205/custom
|
|
Material (DIN)
|
1.4301 1.4306 1.4541 1.4401 1.4404 1.4571 1.4539 1.44621.4410 1.4833 1.4845
|
|
Outter Diameter (OD)
|
3-1220mm/custom
|
|
Thickness
|
0.5-50mm/custom
|
|
Length
|
6000mm 5800mm 12000mm or Customized
|
|
Surface Finished
|
No.1 No.3 No.4 HL 2B BA 4K 8K 1D 2D
|
|
Technique
|
Cold Drawn or Hot rolled
|
|
Standard
|
ASTM AISI DIN JIS GB EN
|
|
Application
|
Construction, Industry, decoration and foodstuff etc.
|
|
Monthly Supply
|
5000 Tons
|
|
Delivery Time
|
7-10 Working Days after Deposit
|
|
Package
|
Plywood Case/Pallet or Other Export Package Suitable for Long Distance Shipping
|
|
End/Edge
|
Plain Mill
|
|
Service
|
OEM/ODM service
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
