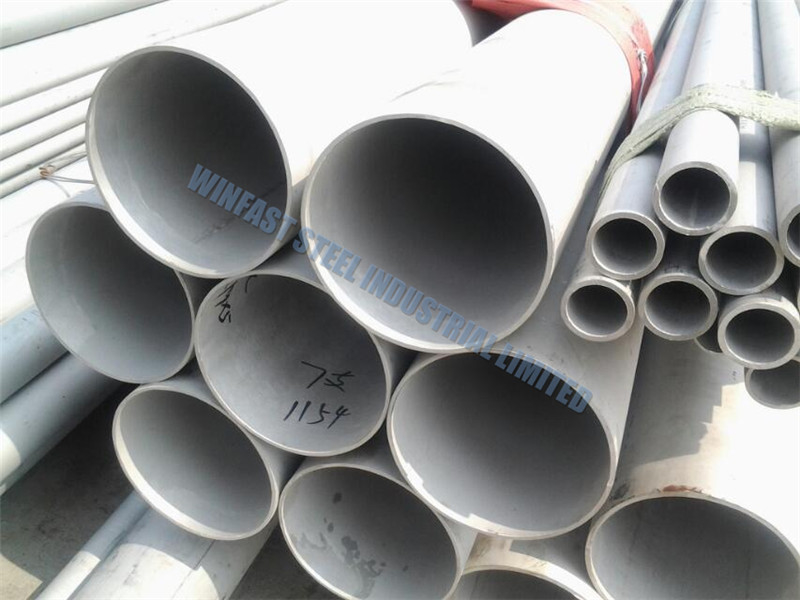

Welded Stainless Steel Seamless Pipe Tube 304 304L 316 316L 904L

Welded Stainless Steel Seamless Pipe Tube 304 304L 316 316L 904L
Welded Stainless Steel Seamless Pipe Tube 304 304L 316 316L 904L

Large Image :  Welded Stainless Steel Seamless Pipe Tube 304 304L 316 316L 904L

Product Details:
Place of Origin: China
Brand Name: MITTEL TISCO BAO STEEL
Certification: SGS ISO MTC
Model Number: 904L
Payment & Shipping Terms:
Minimum Order Quantity: 300KGS
Price: 6.5 USD/KG
Packaging Details: Wooden Box
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS
Contact Now

Welded Stainless Steel Seamless Pipe Tube 304 304L 316 316L 904L

Description
Application: Construction,Industry,boiler,Chemical Standard: DIN,ASTM,JIS,AISI
Type: Seamless Welding Line Type: Seamless
Thickness: 0.5 ~ 60mm Length: 3000mm~6000mm,Customer Request
Shape: Round Pipe Tube Outer Diameter: 6-630mm
Technique: Cold Drawn Surface: Annealing,pickling
Highlight:

Welded Stainless Steel Seamless Pipe Tube

,

630mm Stainless Steel Seamless Pipe

,

Stainless Steel 316L Seamless Pipe

Welded Stainless Steel Pipe 304 304L 316 316L 904L Stainless Steel Tube

Seamless stainless steel round pipe, also known as stainless steel seamless pipe, is made of steel ingot or solid pipe blank through perforation to make a capillary, and then by hot rolling, cold rolling or cold dialing. The specifications of seamless steel pipes are expressed in millimeters of outer diameter * wall thickness.

904L has high nickel composition with low carbon content, copper alloy adding improve its resistance to corrosion, the “L” in 904L stands for low carbon, it is typical Super Austenitic stainless steel, equivalent grades are DIN 1.4539 and UNS N08904, 904L has better properties than other austenitic stainless steels.

Specification
Standard
API, ASTM, BS, DIN, GB, JIS
Outer Dia:
21.3mm-660mm
Wall Thickness
0.5mm-20mm
Dia Tolerance
Control with in the standard, OD:+-1%, WT:+-10%


Materials
10#,20#,45#,Q235,Q345,Q195,Q215,Q345C,Q345A
ASTM A53A/A53B/ A178C/A106B API5L
ST37,ST37-2,DIN 1629 ST35, ST45,DIN 17175 ST35.8,DIN 17175 19Mn5
16Mn,Q345B,T1,T2,T5,T9,T11,T12,T22,T91,T92,P1,P2,P5,P9,P11,P12,P22,P91,P92,15CrMO,
Cr5Mo,10CrMo910,12CrMo,13CrMo44,30CrMo,A333
GR.1,GR.3,GR.6,GR.7
Gr.B,X42,X46,X52,X60,X65,X70,X80,X100
Inspection
ISO,BV,SGS,MTC
Packing
Steel strip packed. Standard Export Seaworthy Package.Suit forall kinds of transport,or as required


Application
Widely used in Structure, Accessorize,Construction,
Fluid transportation,machinery parts,the stress parts of the automobile
tractor parts and so on
MOQ
5metric ton,sample order accepted
Shipment time
Within 7-10 workdays after receiving deposit or L/C

904L Stainless Steel Chemical Composition (Max %):



Grade Ni Cr Mo Cu C Mn Si P S Fe
904L 23 – 28 19 – 23 4 -5 1 – 2 0.02 2 1 0.045 0.035 Balance

904L Stainless Steel Mechanical Properties

Grade Tensile Strength, Min Yeild Strength, Min Elognation Hardness
904L 490 Mpa 215 Mpa 35% 90 HRB Max

904L Stainless Steel Physical Properties

Grade Density
(Kg/M3)		 Elastic Modulus
(GPa)		 Mean Co-Eff Of
Thermal Expansion
(Μm/M/°C)		 Thermal Conductivity
(W/M.K)		 Specific Heat 0-100°C
(J/Kg.K)		 Elec Resistivity
(NΩ.M)
0-100°C 0-315°C 0-538°C At 20°C At 500°C
904L 7900 190 15 – – 11.5 – 500 952

904L Stainless Steel Properties

  • Excellent resistance to stress corrosion cracking due to the presence of high amounts of nickel content.
  • Pitting and crevice corrosion, intergranular corrosion resistance.
  • Grade 904L is less resistant to nitric acid.
  • Excellent formability, toughness and weldability, due to low carbon composition, it can be welded using any standard method, 904L cannot be hardened by heat treatment.
  • Non-magnetic, 904L is an Austenitic stainless steel, therefor 904L possesses Austenitic structure properties.
  • Heat Resistance, Grade 904L stainless steels offer good oxidation resistance. However, the structural stability of this grade collapses at high temperatures, particularly above 400°C.
  • Heat Treatment, Grade 904L stainless steels can be solution heat-treated at 1090 to 1175°C, following by rapid cooling. Thermal treatment is suitable for hardening these grades.

904L Stainless Steel Equivalents

  • WERKSTOFF NR 1.4539
  • UNS N08904
  • BS 904S13
  •

SMLS Pipe 904L A312 45 mm x 5 mm UNS N08904 Stainless Steel Seamless Tube



Welded Stainless Steel Seamless Pipe Tube 304 304L 316 316L 904L 0Welded Stainless Steel Seamless Pipe Tube 304 304L 316 316L 904L 1Welded Stainless Steel Seamless Pipe Tube 304 304L 316 316L 904L 2

Tag:

ss seamless pipes,

seamless stainless steel tube,

astm stainless steel pipe
