Product Details:
|
Application: | Construction,Decoration,Industry,boiler,Chemical | Standard: | DIN,ASTM,JIS |
---|---|---|---|
Steel Grade: | INCONEL 600 | Type: | Seamless |
Thickness: | 1mm-20mm | Length: | 3000mm~6000mm,Customer Request |
Shape: | Round Pipe Tube | Outer Diameter: | 6-630mm |
Technique: | Cold Drawn | Grade: | 304L 316 316L 310s 321 321H 347 347H |
High Light: | Astm Alloy Seamless Pipe,Uns N06600 Alloy Seamless Pipe,Inconel 600 Alloy Seamless Pipe |

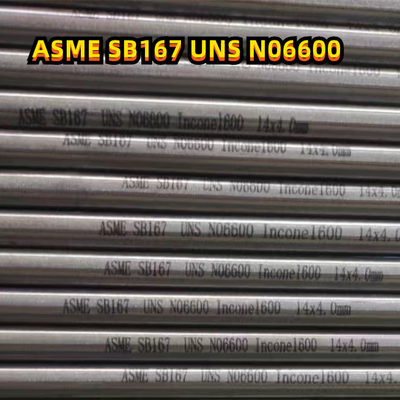

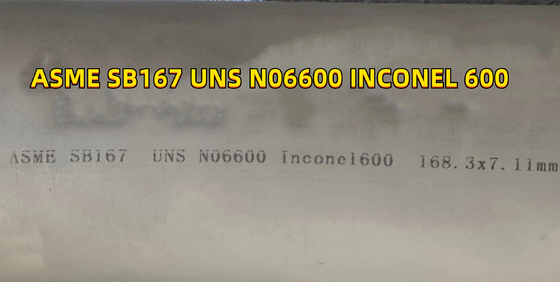

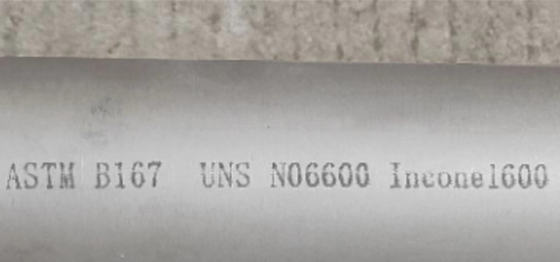

ASTM B167 UNS N06600 INCONEL 600 Alloy SEAMLESS PIPE O.D31.8 X 2.9mmT X 2mL
Grade | C | Mn | Si | Fe | S | Cr | Cu | Ni | |
---|---|---|---|---|---|---|---|---|---|
600 | min. | – | – | – | 6.0 | – | 14.0 | – | 72.0 |
max. | 0.15 | 1.0 | 0.5 | 10.0 | 0.015 | 17.0 | 0.5 | – |
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
---|---|---|---|---|---|
Rockwell B (HR B) max | Brinell (HB) max | ||||
600 | Psi – 95,000 , MPa -655 | Psi – 45,000 , MPa – 310 | 40 | – | – |
Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
---|---|---|---|---|---|---|---|
BS | En | No | AFNOR | ||||
Inconel 600 | N06600 | NA 13 | NiCr15Fe | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | NCF 600 |
Specifications | ASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517 |
---|---|
Dimensions | ASTM, ASME and API |
Seamless 600 Pipes | 4 to 219mm W. T.: 0.5 to 20mm |
Welded 600 Pipes | 5.0 mm – 1219.2 mm |
EFW 600 Pipes | 5.0 mm – 1219.2 mm |
Size | 15″NB TO 150″NB IN |
Specialized in | Large Diameter Size |
Schedule | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | Round, Hydraulic Etc |
Length | Single Random, Double Random & Cut Length. |
End | Plain End, Beveled End, Treaded |
Grade |
Maximum internal pressure, ksi
|
|||||||||
---|---|---|---|---|---|---|---|---|---|---|
100°F | 200°F | 300°F | 400°F | 500°F | 600°F | 700°F | Comments | |||
N06600 :1 | 8.02 | 8.02 | 8.02 | 8.02 | 8.02 | 8.02 | 8.02 | B167 OD>5" and hotworked | ||
N06600 :2 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | B167 OD<=5" and hotworked + OD>5" and coldworked | ||
N06600 :3 | 11.19 | 11.19 | 11.19 | 11.19 | 11.19 | 11.19 | 11.19 | B167 OD<=5" and coldworked |
