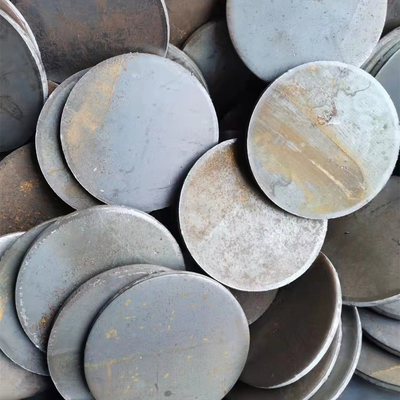

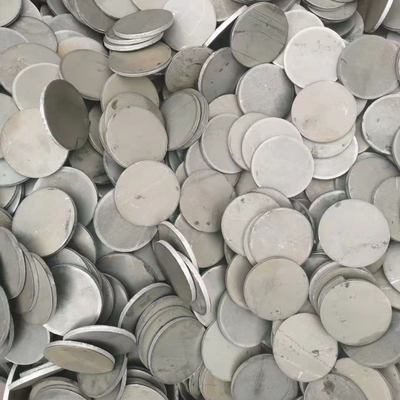

Laser Cutting Stamping Process Metal Steel Plate Discs For Grinding Class OD 100MM

Laser Cutting Stamping Process Metal Steel Plate Discs For Grinding Class OD 100MM
Laser Cutting Stamping Process Metal Steel Plate Discs For Grinding Class OD 100MM Laser Cutting Stamping Process Metal Steel Plate Discs For Grinding Class OD 100MM Laser Cutting Stamping Process Metal Steel Plate Discs For Grinding Class OD 100MM

Large Image :  Laser Cutting Stamping Process Metal Steel Plate Discs For Grinding Class OD 100MM

Product Details:
Place of Origin: China
Brand Name: TISCO,BAO STEEL MITTEL
Certification: SGS ISO MTC
Model Number: A36 S235JR Q235B ST37 ST52
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: 650 USD/Ton
Packaging Details: Wooden Pallet
Delivery Time: 7 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000Tons
Contact Now

Laser Cutting Stamping Process Metal Steel Plate Discs For Grinding Class OD 100MM

Description
OD: 10-2500mm Grade: Q235,Q345,SS400
Technique: Hot Rolled Standard: ASTM,AISI,JIS,DIN
Surface Treatment: Coated,Galvanized,black Special Use: High-strength Steel Plate
Thickness: 0.5-100mm Surface: Galvanized Coated,Black Painted
Highlight:

Laser Cutting Metal Steel Discs

,

Stamping Process Metal Steel Plate Discs

,

Steel Plate Discs For Grinding Class

Laser Cutting And Stamping Process Steel Plate Discs For Grinding Class OD 100MM 200MM

A36 Sheets & Plates Specifications

Specifications for ASTM A36 Carbon Steel Sheets & Plates. If any specification is not mentioned here, please use the contact button for quick quote.

Specifications ASTM A36 / ASME SA36
Standard ASTM, ASME, AISI, DIN, BS, EN, IS, JIS & Other International Standards.
Thickness 0.5 -100mm
Specialize Plain Sheet, Shim Sheet, Perforated Sheet, B. Q. Profile, etc.
Length 2000 -12000 mm / Custom Length
Form Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Grade ASTM A36, (UNS K02600)





































Types of A36 Sheets & Plates



  • ASTM A36 Steel Polished Sheets
  • UNS K02600 Polished Sheets
  • WERKSTOFF NR. 50049 3.1 Polished Sheets
  • ASTM A36 Steel Hot Rolled Sheets
  • ASTM A36 Steel Cold Rolled Sheets
  • ASTM A36 Steel Sheets
  • ASTM A36 Steel Shim Sheets
  • ASTM A36 Steel Perforated Sheets
  • ASTM A36 Steel Class 1 Sheets
  • ASTM A36 Steel Plates





  • WERKSTOFF NR. 50049 3.1 Hot Rolled Plates
  • ASTM A36 Steel Checkered Plates
  • UNS K02600 Cold Rolled Plates
  • WERKSTOFF NR. 50049 3.1 Cold Rolled Plates
  • ASTM A36 Steel Polished Plates
  • ASTM A36 UNS K02600 Polished Plates
  • WERKSTOFF NR. 50049 3.1 Polished Plates
  • ASTM A36 Hot Rolled Plates
  • ASTM A36 Steel Cold Rolled Plates
  • ASTM A36 Steel Class 1 Plates





ASTM A36 Sheets & Plates Chemical Composition

Grade min max
C 0.25 0.290
Cu – 0.20
Fe – 98.0
Mn – 1.03
P – 0.040
Si – 0.280
S – 0.050



Mechanical Properties of ASTM A36 Sheets & Plates

Properties Metric Imperial
Density 7.85 g/cm3 0.284 lb/in3
Tensile Strength, Ultimate 400 – 550 MPa 58000 – 79800 psi
Tensile Strength, Yield 250 MPa 36300 psi
Elongation at Break (in 200 mm) 20.0 % 20.0 %
Elongation at Break (in 50 mm) 23.0 % 23.0 %
Modulus of Elasticity 200 GPa 29000 ksi
Bulk Modulus (typical for steel) 140 GPa 20300 ksi
Poissons Ratio 0.260 0.260
Shear Modulus 79.3 GPa 11500 ksi



ASTM A36 Sheets & Plates – Equivalent Grades

STANDARD MS A36
WERKSTOFF NR. 50049 3.1
UNS K02600





































































A36 Sheets & Plates Forms & Availability



  • ASTM A36 Coils
  • ASTM A36 UNS K02600 Coils
  • A36 WERKSTOFF NR. 50049 3.1 Coils
  • A36 Strips
  • ASTM A36 UNS K02600 Strips
  • A36 WERKSTOFF NR. 50049 3.1 Strips





  • ASTM A36 Foils
  • A36 UNS K02600 Foils
  • A36 WERKSTOFF NR. 50049 3.1 Foils
  • ASTM A36 Shim Sheet
  • ASTM A36 UNS K02600 Shim Sheet
  • A36 WERKSTOFF NR. 50049 3.1 Shim Sheet





ASTM A36 Sheets & Plates Updated Price List

Request the latest A36 Sheets & Plates List. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. maintains a stock of all standard items and can export them at best price for A36 Sheets & Plates.
