Cutting 310S Stainless Steel Seamless Pipe Tube With Corrosion Resistance

Cutting 310S Stainless Steel Seamless Pipe Tube With Corrosion Resistance
Cutting 310S Stainless Steel Seamless Pipe Tube With Corrosion Resistance Cutting 310S Stainless Steel Seamless Pipe Tube With Corrosion Resistance Cutting 310S Stainless Steel Seamless Pipe Tube With Corrosion Resistance Cutting 310S Stainless Steel Seamless Pipe Tube With Corrosion Resistance

Large Image :  Cutting 310S Stainless Steel Seamless Pipe Tube With Corrosion Resistance

Product Details:
Place of Origin: Wuxi city, Jiangsu province
Brand Name: DELTA
Model Number: 317L / S31703
Payment & Shipping Terms:
Minimum Order Quantity: 1 tons
Price: USD1000-USD4000 per ton
Packaging Details: Standard seaworthy packaging by waterproof paper + plywood pallets.
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000 tons per month

Cutting 310S Stainless Steel Seamless Pipe Tube With Corrosion Resistance

Description
Certification: CE, ISO, BV, SGS Stock: Always In Good Stock
Product Name: Stainless Steel Seamless Pipe & Tube Outer Diameter: DN10 - DN500
Wall Thickness: SCH5 - SCH160 Standard: AISI, ASTM, JIS, DIN, EN, GB
Color: Natural Color Quality: Class 1
Type: Seamless Main Grade: 304 304L 304H 309S 310S 316L 316Ti 317L 321 347 .etc
High Light:

Stainless Seamless pipe with Corrosion Resistance

,

310S Stainless Steel Seamless Tube

,

Cutting Stainless Steel Seamless Tube



UNS S31703 / 317L Stainless Steel Pipe Tube ASTM EN GB Standard DN10 - DN400 in Stock




More informations of our stainless steel pipe



Products Stainless Steel Pipe &Tube
Model Number 200 Series:201 202
300 Series:301 302 303 304 304L 309 309S 310 316 316L 316Ti 317L 321 904L
400 Series:410 420 430 440
Duplex stainless:2205 2507
Type Flat/corrugated/checkered
Processing Service Bending,Welding,Decoiling,Punching,Cutting, Moulding
Delivery Time 3-10 days
Payment terms 30%TT Advance+70% Balance against the copy of bill of loading
Sample Sample Avaliable
Inspection Accept Thrid Party Inspection
Port Tianjin Shanghai Qingdao
Certification ISO9001

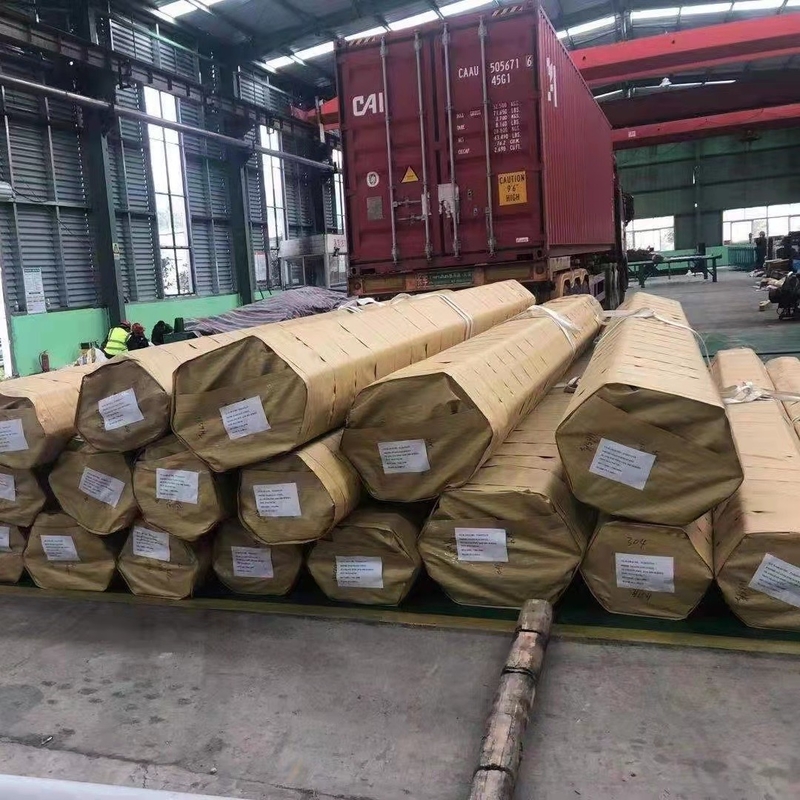

Packing Standardsea worthy export packing or according to the customers' request.
Applications: Kitchenware,home appliances,construction decoration,stairs,refrigerated container,burner parts,exhaust parts of auto
Container Size: 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)68CBM



Forms of 317L Stainless Steel Available at Mega Mex

  • Sheet
  • Plate
  • Bar
  • Pipe & Tube (welded & seamless)
  • Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
  • Weld Wire (AWS E317L-16, ER317L)


317L Stainless Steel Overview

317L is a molybdenum bearing, low carbon content “L” grade austenitic stainless steel that provides improved corrosion resistance over 304L and 316L stainless steels. The low carbon provides resistance to sensitization during welding and other thermal processes.

Corrosion Resistance

317L has excellent corrosion resistance in a wide range of chemicals, especially in acidic chloride environments such as those encountered in pulp and paper mills. Increased levels of chromium, nickel and molybdenum compared to 316L stainless steel improve resistance to chloride pitting and general corrosion. Resistance increases with molybdenum alloy content. 317L is resistant to sulfuric acid concentrations up to 5 percent at temperatures as high as 120°F (49°C). At temperatures under 100°F (38°C) this alloy has excellent resistance to solutions of higher concentration. However, service tests are recommended to account for the affects of specific operating conditions that may affect corrosion behavior. In processes where condensation of sulfur-bearing gases occurs, 317L is much more resistant to attack at the point of condensation than conventional alloy 316. The acid concentration has a marked influence on the rate of attack in such environments and should be carefully determined by service tests.

Chemical Composition, %

Ni Cr Mo Mn Si C N S P Fe
11.0 - 15.0
18.0 - 20.0
3.0 - 4.0
2.0 Max
.75 Max
0.03 Max
0.1 Max
0.03 Max
0.045 Max
Balance

What are the characteristics of 317L Stainless?

  • Improved general and localized corrosion to 316L stainless
  • Good formability
  • Good weldability

In what applications is 317L Stainless used?

  • Flue-gas desulfurization systems
  • Chemical process vessels
  • Petrochemical
  • Pulp and Paper
  • Condensers in power generation

Mechanical Properties

Minimum Specified Properties, ASTM A240

Ultimate Tensile Strength, ksi Minimum .2% Yield Strength, ksi Minimum Elongation Percent Hardness Max.
75
30
35
217 Brinell

Welding 317L

317L is readily welded by a full range of conventional welding procedures (except oxyacetylene). AWS E317L/ER317L filler metal or austenitic, low carbon filler metals with molybdenum content higher than that of 317L, or a nickel-base filler metal with sufficient chromium and molybdenum content to exceed the corrosion resistance of 317L should be used to weld 317L steel.

Stainless steel pipe dimension as per astm & weight



Nominal Outside Diameter Sch 5S Sch 10S Sch-40S Sch-80S Sch-160S Sch-XXS
mm inch mm WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt) WT mm Weight (Kg/mt)
3 1/8 10.3 1.24 0.276 1.24 0.28 1.73 0.37 2.41 0.47 - - - -
6 1/4 13.7 1.24 0.390 1.65 0.49 2.24 0.631 3.02 0.80 - - - -
10 3/8 17.1 1.24 0.490 1.65 0.63 2.31 0.845 3.20 1.10 - - - -
15 1/2 21.3 1.65 0.800 2.11 1.00 2.77 1.27 3.75 1.62 4.75 1.94 7.47 2.55
20 3/4 26.7 1.65 1.03 2.11 1.28 2.87 1.68 3.91 2.20 5.54 2.89 7.82 3.63
25 1 33.4 1.65 1.30 2.77 2.09 3.38 2.50 4.55 3.24 6.35 4.24 9.09 5.45
32 1 1/4 42.2 1.65 1.65 2.77 2.70 3.56 3.38 4.85 4.47 6.35 5.61 9.70 7.77
40 1 1/2 48.3 1.65 1.91 2.77 3.11 3.68 4.05 5.08 5.41 7.14 7.25 10.16 9.54
50 2 60.3 1.65 2.40 2.77 3.93 3.91 5.44 5.54 7.48 8.74 11.1 11.07 13.44
65 2 1/2 73.0 2.11 3.69 3.05 5.26 5.16 8.63 7.01 11.4 9.53 14.9 14.2 20.39
80 3 88.9 2.11 4.51 3.05 6.45 5.49 11.30 7.62 15.2 11.1 21.3 15.24 27.65
100 4 114.3 2.11 5.84 3.05 8.36 6.02 16.07 8.56 22.3 13.49 33.54 17.12 41.03
125 5 141.3 2.77 9.47 3.40 11.57 6.55 21.8 9.53 31.97 15.88 49.11 19.05 57.43
150 6 168.3 2.77 11.32 3.40 13.84 7.11 28.3 10.97 42.7 18.2 67.56 21.95 79.22
200 8 219.1 2.77 14.79 3.76 19.96 8.18 42.6 12.7 64.6 23.0 111.2 22.23 107.8
250 10 273.1 3.40 22.63 4.19 27.78 9.27 60.5 12.7 96.0 28.6 172.4 25.40 155.15
300 12 323.9 3.96 31.25 4.57 36.00 9.52 73.88 12.7 132.0 33.32 238.76 25.40 186.97
350 14 355.6 3.96 34.36 4.78 41.3 11.13 94.59 19.05 158.08 35.71 281.70 - -
400 16 406.4 4.19 41.56 4.78 47.29 12.7 123.30 21.41 203.33 40.46 365.11 - -
450 18 457.2 4.19 46.80 4.78 53.42 14.27 155.80 23.8 254.36 45.71 466.40 - -
500 20 508.0 4.78 59.25 5.54 68.71 15.09 183.42 26.19 311.2 49.99 564.68 - -
600 24 609.6 5.54 82.47 6.35 94.45 17.48 255.41 30.96 442.08 59.54 808.22 - -
