Product Details:
|
| Certification: | ISO9001-2000 | Alloy Or Not: | Non-alloy |
|---|---|---|---|
| Technique: | ERW | Thickness: | 2.87 - 13.84 Mm |
| Application: | Structure Pipe | Length: | 5.8-12m |
| Shape: | Square | ||
| High Light: | 60x275mm carbon rectangular tube,q355b carbon rectangular tube,s355jr carbon steel rectangular tubing |
||

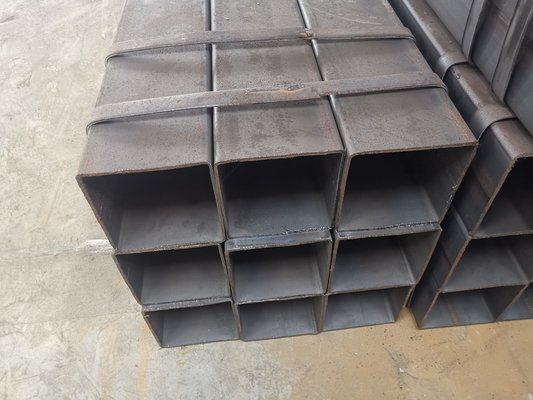

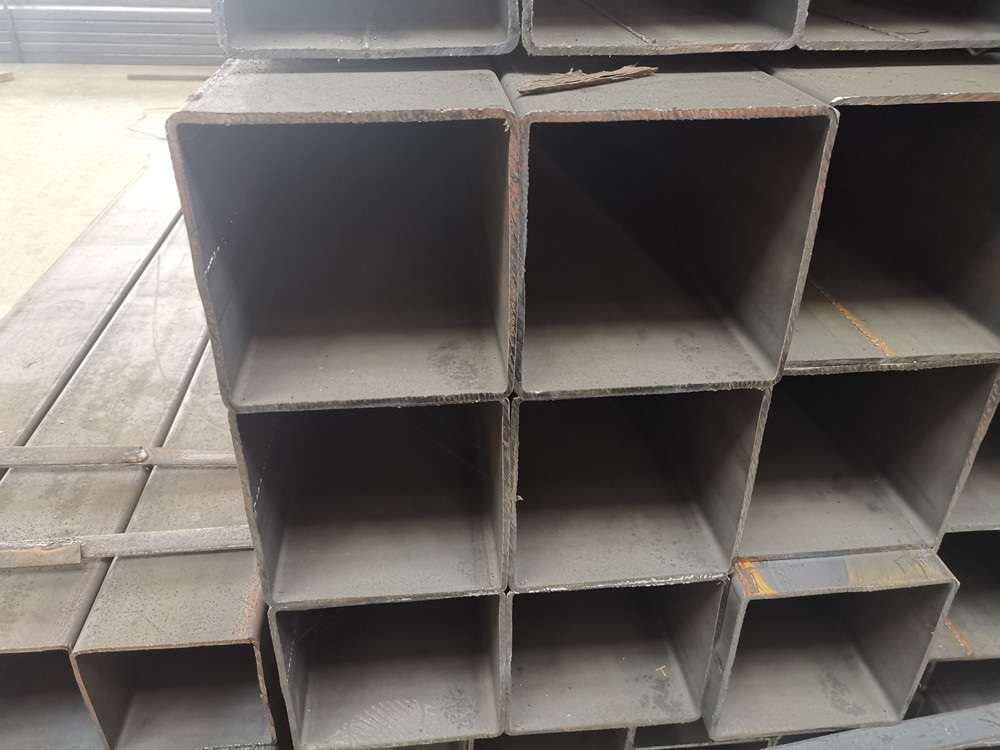

S235 / S275 / S355 Square Steel Pipes / ERW Steel Structural Hollow Section Sch 40
| EN10210 EN10219 S355 S235 S275 steel tube,galvanized steel pipe | ||
|
Name |
Diameter or Size |
Wall Tickness |
|
Round pipe |
8mm-3000mm |
0.4mm-60mm |
|
Square pipe |
30×30mm-800×800mm |
2mm-30mm |
| Rectangular pipe |
50×30mm-800×300mm |
2mm-30mm |
|
Length |
1m-16m or according to customers’requirements |
|
|
Standards |
EN 10210 EN10219 ASTM A500 JIS G3466 STKR etc |
|
|
Grade |
S235JRH S275J2H S355J0H S355J2H Grade A/B/C/D 400/490 |
|
|
Surface finish |
Black Bright and Galvanized or painted |
|
|
Packing |
With steel belts or nylon or according to customers’requirements |
|
|
Application |
Structural pipe Pressure pipe Mechanical system roller,etc |
|
|
Supply ability |
10000T per month |
|
|
Payment terms |
L/C T/T or Western Union |
|
| Trade terms |
FOB/CIF/CFR |
|
| Certification |
CE CCS ISO9001 and so on |
|
S355 steel is a European standard structural steel grade, according to EN 10025-2: 2004, material S355 is divided into 4 main quality grades:
The properties of structural steel S355 is better than steel S235 and S275 in yield strength and tensile strength.
The following letters and numbers explains the steel grade S355 meaning.
Below are the tables to show the steel grade S355 datasheet including chemical composition, yield strength, tensile strength and elongation, etc. All data sheet of DIN EN 10025-2 is the same as BS EN 10025-2 and other EU member states.
The datasheet below shows grade S355 steel chemical composition.
| S355 Chemical Composition % (≤) | ||||||||||
| Standard | Steel | Grade | C | Si | Mn | P | S | Cu | N | Method of deoxidation |
| EN 10025-2 | S355 | S355JR | 0.24 | 0.55 | 1.60 | 0.035 | 0.035 | 0.55 | 0.012 | Rimmed steel is not allowed |
| S355J0 (S355JO) | 0.20 | 0.55 | 1.60 | 0.030 | 0.030 | 0.55 | 0.012 | |||
| S355J2 | 0.20 | 0.55 | 1.60 | 0.025 | 0.025 | 0.55 | – | Fully killed | ||
| S355K2 | 0.20 | 0.55 | 1.60 | 0.025 | 0.025 | 0.55 | – | Fully killed | ||
The datasheet below gives EN 10025 S355 steel mechanical properties such as yield strength, tensile strength and elongation.
| S355 Yield Strength (≥ N/mm2); Dia. (d) mm | |||||||||
| Steel | Steel Grade (Steel Number) | d≤16 | 16< d ≤40 | 40< d ≤63 | 63< d ≤80 | 80< d ≤100 | 100< d ≤150 | 150< d ≤200 | 200< d ≤250 |
| S355 | S355JR (1.0045) | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 |
| S355J0 (1.0553) | |||||||||
| S355J2 (1.0577) | |||||||||
| S355K2 (1.0596) | |||||||||
| S355 Tensile Strength (≥ N/mm2) | ||||
| Steel | Steel Grade | d<3 | 3 ≤ d ≤ 100 | 100 < d ≤ 250 |
| S355 | S355JR | 510-680 | 470-630 | 450-600 |
| S355J0 (S355JO) | ||||
| S355J2 | ||||
| S355K2 | ||||
| Elongation (≥%); Thickness (d) mm | ||||||
| Steel | Steel Grade | 3≤d≤40 | 40< d ≤63 | 63< d ≤100 | 100< d ≤ 150 | 150< d ≤ 250 |
| S355 | S355JR | 22 | 21 | 20 | 18 | 17 |
| S355J0 (S355JO) | ||||||
| S355J2 | ||||||
| S355K2 | 20 | 19 | 18 | 18 | 17 |
|
