Asme Sa789 S22053 S31803 2205 Duplex Tube Surface Finish Annealed / Pickling / Polished

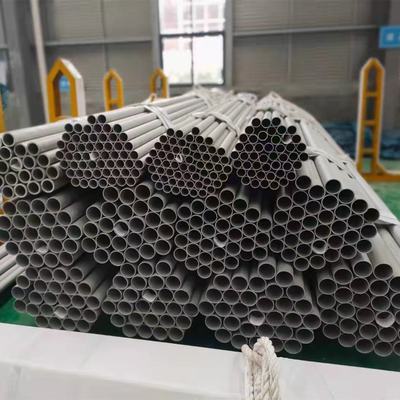

Large Image : Asme Sa789 S22053 S31803 2205 Duplex Tube Surface Finish Annealed / Pickling / Polished

Product Details:

Place of Origin:	CHINA
Brand Name:	MITTEL
Certification:	SGS
Model Number:	s32205 s31803 2205

Payment & Shipping Terms:

Minimum Order Quantity:	2TON
Price:	5200 USD/Ton
Packaging Details:	export packing
Delivery Time:	7 days after receive the deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000 tons per month

Contact Now

Asme Sa789 S22053 S31803 2205 Duplex Tube Surface Finish Annealed / Pickling / Polished

Description

Secondary Or Not:	Non-secondary	Size Range:	1/2''-25''
Technique:	SEAMLESS	Surface Treatment:	Pickled
LENGTH:	6M	Thickness:	SCH10-SCH160
Highlight:	asme 2205 duplex tube , annealed 2205 duplex tube , s31803 ss hollow bar

A duplex steel is one that has a mixture of two different metallurgical phases within its microstructure. Although many different grades of steel possess two or more different phases, the term duplex is used almost exclusively for a family of stainless steels that combine austenitic and ferritic phases.

Item	Description
Basic Information	Material Grade	S32205 , S31803 , S32304 , S32750 , F51 , F53 , 2205 , 2507 etc
	Outer Diameter	3.18mm - 101.6mm
	Wall Thickness	0.5mm - 20mm
	Length	Normally fixed length 6m , can as per customer’s requirement
	Standard	ASTM A789 ; ASTM A790 ; EN 10216-5 etc.
	Process Method	Cold Drawn or Cold Rolled

UNS Designation	C	Si	Mn	P	S	Cr	Ni	Mo	N	Cu
UNS Designation	max	max	max	max	max	Cr	Ni	Mo	N	Cu
S31803	0.03	1	2	0.03	0.02	21.0 - 23.0	4.5 - 6.5	2.5 - 3.5	0.08 - 0.20	-
S32205	0.03	1	2	0.03	0.02	22.0 - 23.0	4.5 - 6.5	3.0 - 3.5	0.14 - 0.20	-
S32750	0.03	0.8	1.2	0.035	0.02	24.0 - 26.0	6.0 - 8.0	3.0 - 5.0	0.24 - 0.32	0.5 max
S32760	0.05	1	1	0.03	0.01	24.0 - 26.0	6.0 - 8.0	3.0 - 4.0	0.20 - 0.30	0.50 -1.00

Application

a) Petroleum

b) Chemical industry

c) Instrument

d) Industrial transportation

e) Mechanical structure industry

f) Need high corrision ability pipe's industry, such as offshore industry etc

Advantages

a) Superior surface finish,

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment

Asme Sa789 S22053 S31803 2205 Duplex Tube Surface Finish Annealed / Pickling / Polished 0
