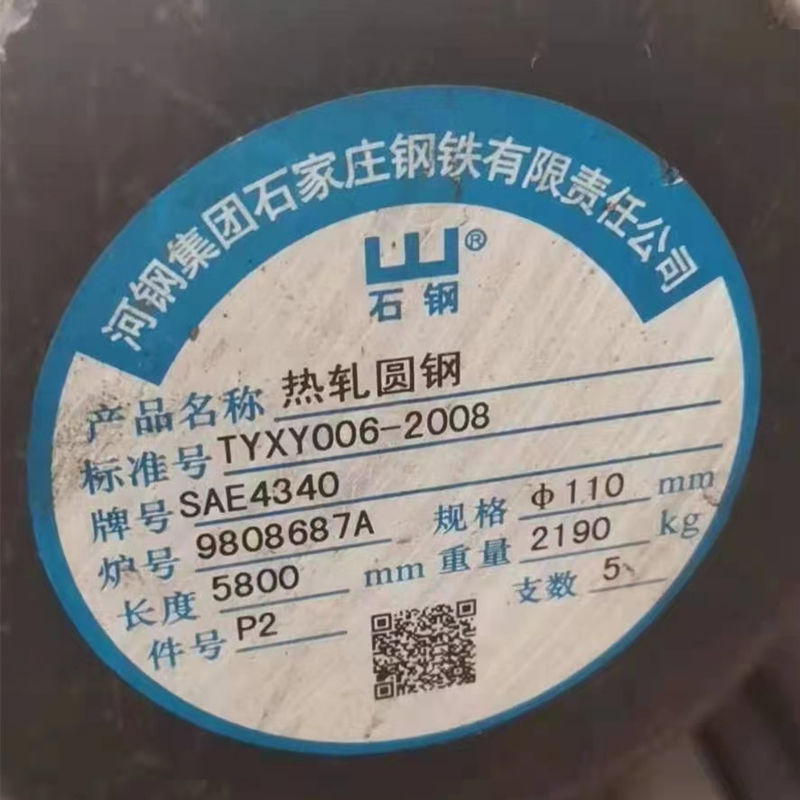

AISI / SAE 4340 ALLOY STEEL

GENERAL CHARACTERISTICS OF ALLOY STEEL 4340

4340 is a nickel-chromium-molybdenum alloy steel known for its toughness and its ability to attain high strengths in the heat-treated condition. It has very good fatigue resistance.

This alloy, 4340, may be heat treated to high strength levels while maintaining good toughness, wear resistance and fatigue strength levels, combined with good atmospheric corrosion resistance, and strength.

APPLICATIONS

Commercial and military aircraft, automotive systems, forged hydraulic and other machine tool applications, forged steel crankshafts.

FORGING

Forging should be carried out between 2250 and 1800 º F (1230 and 980 º C.). Parts should be slow cooled after forging in ashes or sand etc.

HEAT TREATMENT

Heat treatment after forging is carried out to render the steel suitable for machining, and to meet the mechanical property limits specified for the steel’s particular applications. There are several ways to heat treat a given steel part and it is only through practice that the optimum temperature and conditions may be defined. The following information should be taken as a guide only.

ANNEALING

To obtain a pearlitic structure on certain parts for machining, 4340 should be annealed at a nominal temperature of 1525 º F (830 º C,) cooling to 1350 º F (730 º C) and furnace cooling to 1130 º F (610 º C) at a rate of 20 º F (11 º C) per hour, then air cooling. This process, known as full annealing, is very time consuming as it involves slow cooling over the entire temperature range from the austenitizing temperature to a temperature well below that at which transformation is complete.

To obtain a spheroidized structure in 4340 grade involves austenitizing at 1380 º F (750 º C,) furnace cooling to 1300 º F (705 º C) then to 1050 º F (565 º C) at a rate of 5 º F (3 º C) per hour. This structure will probably result in better machinability than will the coarse lamellar pearlite structure obtained by the full anneal process.

NORMALIZING

This process is defined as heating a steel to a temperature above the ferrite to austenite transformation temperature, then cooling in air to a temperature well below this transformation temperature. The treatment may be carried out on forged products as a conditioning treatment prior to final heat treatment. Normalizing also serves to refine the structure of forgings that might have cooled non-uniformly from their forging operation. The nominal normalizing temperature for 4340 grade is 1500 º F (815 º C,) but production experience may necessitate a temperature either 50 º F (10 º C) above or below this temperature. . As a rule of thumb, when forgings are normalized before, say, carburizing or hardening and tempering, the upper range of normalizing temperatures is used. When normalizing is the final heat treatment, the lower temperature range is used.

HARDENING

This heat treatment results in the formation of martensite after quenching, resulting in increased hardness and tensile strength. A temperature range of 1500 – 1550 º F (815 – 845 º C) is the normal austenitizing temperature for direct hardening of 4340 grade. Oil quenching is normally used for 4340 as the alloy’s hardenability is suited to this quenching method.

TEMPERING

Tempering is carried out to relieve stresses from the hardening process, but primarily to obtain mechanical properties required for the final application. The actual tempering temperature will be chosen to meet the required properties, and in many cases will be a matter of trial and error.

This grade 4340 may also be hardened by nitriding or flame or induction hardening.

MACHINABILITY

This grade is readily machinable, with either a coarse lamellar pearlitic structure or a spheroidized structure being best advised, depending upon section size and complexity and amount of machining to be carried out. If there is doubt about the suitability of any other structure, then a spheroidizrd structure should be aimed for in heat treatment.

WELDING

This grade is readily welded in the annealed condition, but welding in the hardened and tempered condition should be avoided where possible because of the effect on mechanical properties. Welding in the nitrided or flame or induction hardened conditions is not recommended.
