Product Details:
|
| Products: | Stainless Steel Pipe | Grade: | TP304 TP316L TP321.etc |
|---|---|---|---|
| Standard: | ASTM A312/312M | Diameter: | DN6 - DN400mm |
| Length: | 6m Or Cutting As Request | Surface: | Pickled Finishing |
| High Light: | S31803 Duplex Stainless Steel Pipe,S32101 Duplex Stainless Steel Pipe,S32205 Duplex Steel Pipe |
||
Duplex Stainless Steel Pipe Grade S31803 S32205 S32750 S32760 S32101 SS Pipe
Stainless Steel Seamless Pipe is made from round bar. There are many processes to make round bar to seamless pipe. It is different from welded pipe, seamless pipe has no welding seam across the whole section. Hence, it can bear higher pressure than welded pipe.
It is widely used in the food industry, home appliances and consumer electronics, medical equipment, architectural decoration, hardware tools, automotive industry, petrochemical, water treatment plants, aerospace, etc.
Tubinox is able to make stainless steel seamless pipe as per different standards/specifications, like ASTM A312 / ASME SA312, ASTM A213 / ASME SA213, ASTM A269, ASTM A632 / ASME SA632, JIS G3459, JIS G3448, JIS G3463, EN10216-5, EN ISO1127, DIN 17456, DIN 17458, GOST 9941, etc. We can also make as per custom specification.
| Type | Seamless/Welded |
| Size | Outside diameter: 10mm--630mm(seamless); 10mm-2500mm(welded) Wall thickness: 0.5mm--50mm |
| Standard | ASTM A312,ASTM A269, ASTM213,EN10216-5 ASTM A789 (ASME SA789), ASTM A790 (ASME SA790) etc. |
| Grade | TP304, 304L, 304H, TP316, 316L, 316H, TP321/321H, TP347/347H, S31803, S32205, S31500, S32304, S32750, S32760 etc. |
| Surface | Pickling,solid solution, polished or as customer's requirement |
| Packing | Bundle, plastic bag, woven bag, wooden case |
| Delivery | stock, 5-30days to port |
| Payment | T/T, D/P, L/C at sight, Usance L/C etc. |
| DN | NPS | OD | ASME B36.19M | ASME B36.10M | |||||||||||||||
| Sch5S | Sch10S | Sch40S | Sch80S | Sch5 | Sch10 | Sch20 | Sch30 | Sch40 | Sch60 | Sch80 | Sch120 | Sch140 | Sch160 | STD | XS | XXS | |||
| (Inch) | (mm) | Wall Thickness (mm) | Wall Thickness (mm) | ||||||||||||||||
| 6 | 1/8 | 10.3 | - | 1.24 | 1.73 | 2.41 | - | 1.24 | - | 1.45 | 1.73 | - | 2.41 | - | - | - | 1.73 | 2.41 | - |
| 8 | 1/4 | 13.7 | - | 1.65 | 2.24 | 3.02 | - | 1.65 | - | 1.85 | 2.24 | - | 3.02 | - | - | - | 2.24 | 3.02 | - |
| 10 | 3/8 | 17.1 | - | 1.65 | 2.31 | 3.20 | - | 1.65 | - | 1.85 | 2.31 | - | 3.20 | - | - | - | 2.31 | 3.20 | - |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 3.73 | 1.65 | 2.11 | - | 2.41 | 2.77 | - | 3.73 | - | - | 4.78 | 2.77 | 3.73 | 7.47 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 3.91 | 1.65 | 2.11 | - | 2.41 | 2.87 | - | 3.91 | - | - | 5.56 | 2.87 | 3.91 | 7.82 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | 1.65 | 2.77 | - | 2.90 | 3.38 | - | 4.55 | - | - | 6.35 | 3.38 | 4.55 | 9.09 |
| 32 | 1-1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 4.85 | 1.65 | 2.77 | - | 2.97 | 3.56 | - | 4.85 | - | - | 6.35 | 3.56 | 4.85 | 9.70 |
| 40 | 1-1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 5.08 | 1.65 | 2.77 | - | 3.18 | 3.68 | - | 5.08 | - | - | 7.14 | 3.68 | 5.08 | 10.15 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 5.54 | 1.65 | 2.77 | - | 3.18 | 3.91 | - | 5.54 | - | - | 8.74 | 3.91 | 5.54 | 11.07 |
| 65 | 2-1/2 | 73.0 | 2.11 | 3.05 | 5.16 | 7.01 | 2.11 | 3.05 | - | 4.78 | 5.16 | - | 7.01 | - | - | 9.53 | 5.16 | 7.01 | 14.02 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 | 2.11 | 3.05 | - | 4.78 | 5.49 | - | 7.62 | - | - | 11.13 | 5.49 | 7.62 | 15.24 |
| 90 | 3-1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 | 2.11 | 3.05 | - | 4.78 | 5.74 | - | 8.08 | - | - | - | 5.74 | 8.08 | - |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | 2.11 | 3.05 | - | 4.78 | 6.02 | - | 8.56 | 11.13 | - | 13.49 | 6.02 | 8.56 | 17.12 |
| 125 | 5 | 141.3 | 2.77 | 3.40 | 6.55 | 9.53 | 2.77 | 3.40 | - | - | 6.55 | - | 9.53 | 12.70 | - | 15.88 | 6.55 | 9.53 | 19.05 |
| 150 | 6 | 168.3 | 2.77 | 3.40 | 7.11 | 10.97 | 2.77 | 3.40 | - | - | 7.11 | - | 10.97 | 14.27 | - | 18.26 | 7.11 | 10.97 | 21.95 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 12.70 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 10.31 | 12.70 | 18.26 | 20.62 | 23.01 | 8.18 | 12.70 | 22.23 |
| 250 | 10 | 273.0 | 3.40 | 4.19 | 9.27 | 12.70 | 3.40 | 4.19 | 6.35 | 7.80 | 9.27 | 12.70 | 15.09 | 21.44 | 25.40 | 28.58 | 9.27 | 12.70 | 25.40 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 12.70 | 3.96 | 4.57 | 6.35 | 8.38 | 10.31 | 14.27 | 17.48 | 25.40 | 28.58 | 33.32 | 9.53 | 12.70 | 25.40 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | 9.53 | 12.70 | 3.96 | 6.35 | 7.92 | 9.53 | 11.13 | 15.09 | 19.05 | 27.79 | 31.75 | 35.71 | 9.53 | 12.70 | - |
| 400 | 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.70 | 4.19 | 6.35 | 7.92 | 9.53 | 12.70 | 16.66 | 21.44 | 30.96 | 36.53 | 40.49 | 9.53 | 12.70 | - |
| 450 | 18 | 457.0 | 4.19 | 4.78 | 9.53 | 12.70 | 4.19 | 6.35 | 7.92 | 11.13 | 14.27 | 19.05 | 23.83 | 34.93 | 39.67 | 45.24 | 9.53 | 12.70 | - |
| 500 | 20 | 508.0 | 4.78 | 5.54 | 9.53 | 12.70 | 4.78 | 6.35 | 9.53 | 12.70 | 15.09 | 20.62 | 26.19 | 38.10 | 44.45 | 50.01 | 9.53 | 12.70 | - |
| 550 | 22 | 559.0 | 4.78 | 5.54 | - | - | 4.78 | 6.35 | 9.53 | 12.70 | - | 22.23 | 28.58 | 41.28 | 47.63 | 53.98 | 9.53 | 12.70 | - |
| 600 | 24 | 610.0 | 5.54 | 6.35 | 9.53 | 12.70 | 5.54 | 6.35 | 9.53 | 14.27 | 17.48 | 24.61 | 30.96 | 46.02 | 52.37 | 59.54 | 9.53 | 12.70 | - |

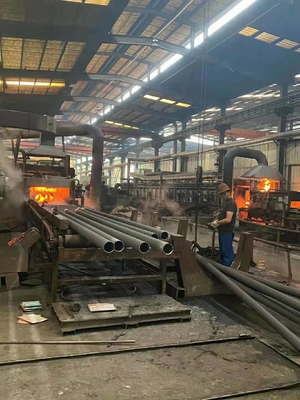

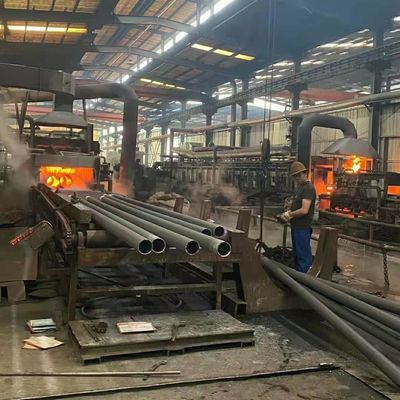

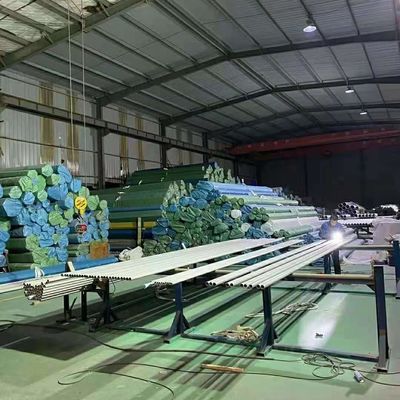

Our Factory Show
Shipping Informations:
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Goods delivered by 20" , 40" FCL/LCL by quantity or customer's request.
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 10-30days after conformed or according to quantity.

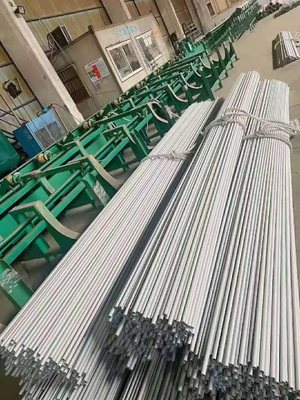

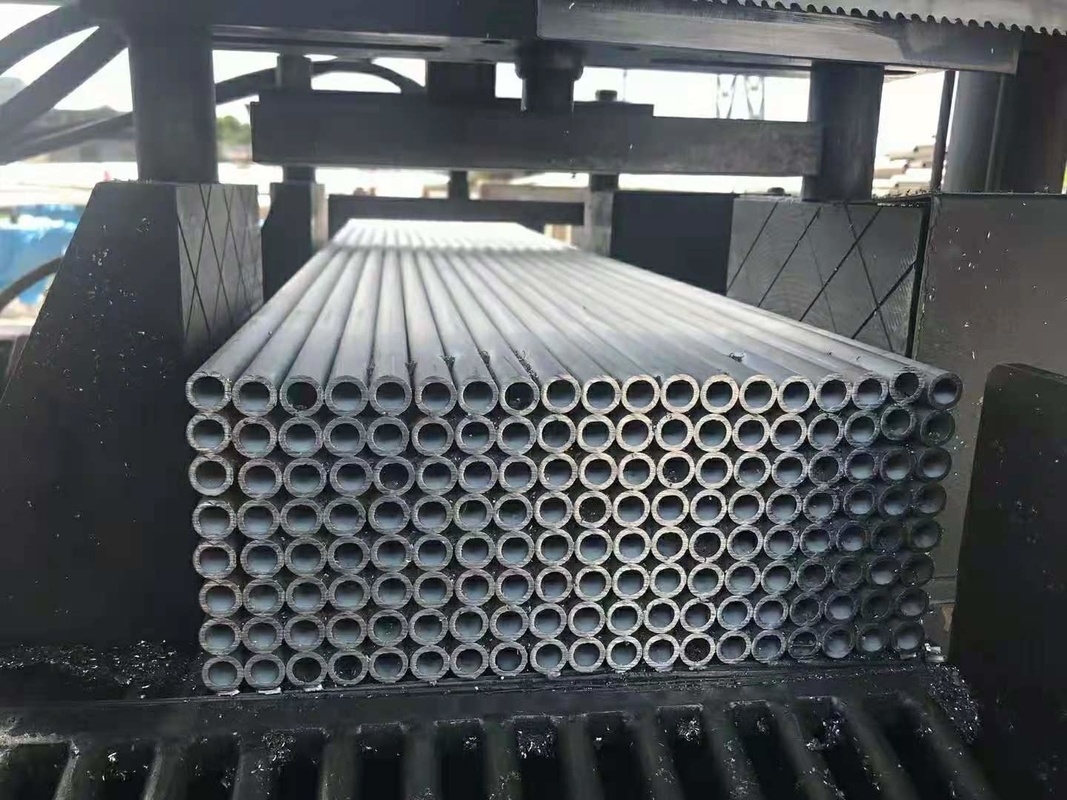

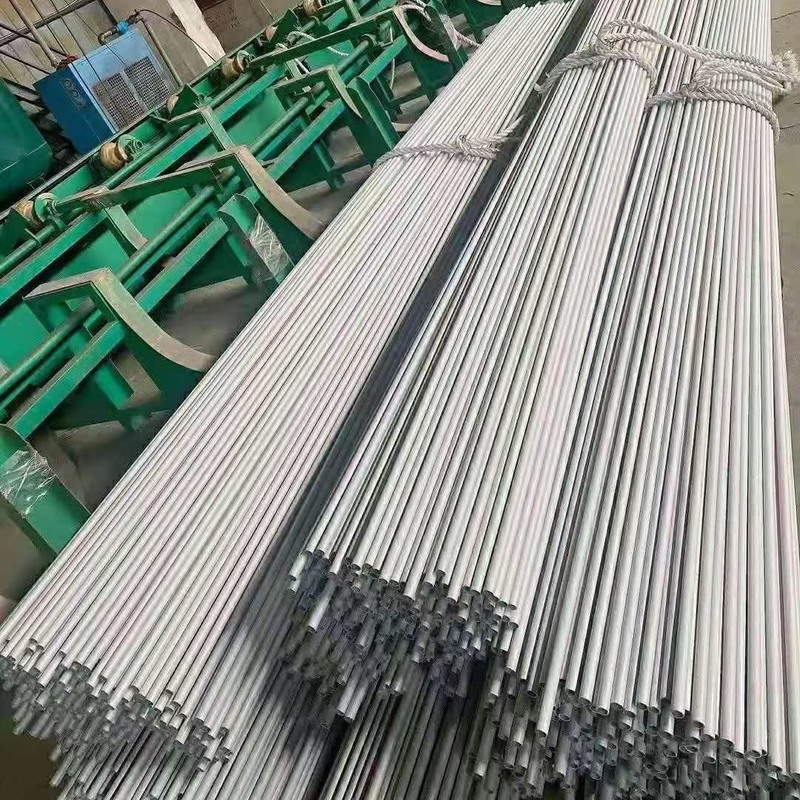

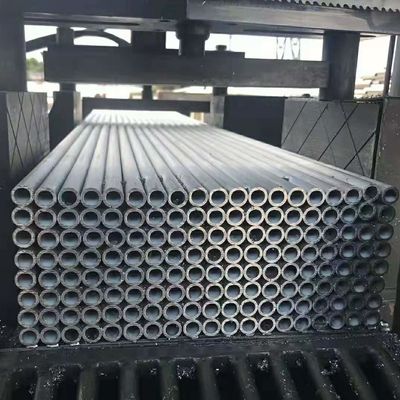

Products Pictures
