Grade S45C 10 - 200mm Aisi 1045 Steel Plate

Grade S45C 10 - 200mm Aisi 1045 Steel Plate
Grade S45C 10 - 200mm Aisi 1045 Steel Plate Grade S45C 10 - 200mm Aisi 1045 Steel Plate Grade S45C 10 - 200mm Aisi 1045 Steel Plate Grade S45C 10 - 200mm Aisi 1045 Steel Plate

Large Image :  Grade S45C 10 - 200mm Aisi 1045 Steel Plate

Product Details:
Place of Origin: CHINA
Brand Name: HBSC
Certification: ISO 9001
Model Number: 45#/1045/S45C
Payment & Shipping Terms:
Minimum Order Quantity: 500 kgs
Price: 780 USD/Ton
Packaging Details: wooden pallets
Delivery Time: 5 - 7 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300Ton/month

Grade S45C 10 - 200mm Aisi 1045 Steel Plate

Description
Products: Steel Plate Grade: 45#/1045/S45C
Thickness Range: 10 - 200mm Width: 2200mm Or As Request
Length: Custom Length As Request Service: Cutting
Brand: HBSC Other Grade: 40Cr 42CrMo Q355
High Light:

aisi 1045 steel plate

,

10mm aisi 1045 steel plate

,

s45c plate







Grade AISI 1045 Steel Plate S45C Steel Plate 10 - 200mm Steel Plate Cutting



Detail informations of our 1045 Steel Plate



Product Name
 1045 Steel Plate
Width
2200mm or custom as request
Length
custom as request
Thickness 10 - 200mm
Service

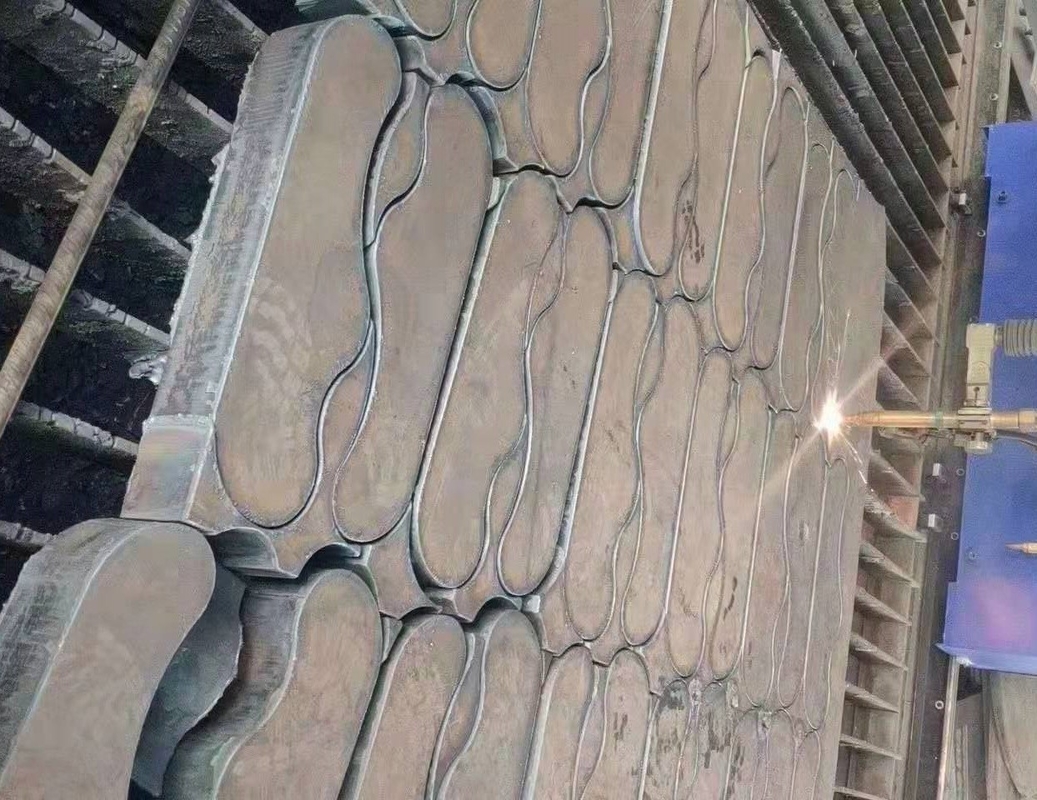

Cutting plate into any size as request
Other Grade
1035 1040 1055 1060 1065 1070 1016 1037 1039 1046 1053 1566 1572 Grade 50 Grade 55 Grade 60 Grade 65 Grade 80 S35C S40C S50C S55C S58C SWRH67B SWRH72A SWRH77A 40 1040 65 1065 SWRCH22K C22E S550QL 1.8925 1.0114 1.0425 40Cr 5140
Application
Widely used in construction machinery, mining machinery, coal mining machinery, environmental protection machinery, metallurgical
machinery and other parts.Excavator, loader, bulldozer bucket plate, blade plate, side blade plate, blade.Crusher liner, blade
MOQ
500 kgs
Shipment time
5 - 7 days for mateials in stock





AISI 1045 steel is characterized by good weldability, good machinability, and high strength and impact properties in either the normalized or hot-rolled condition.

AISI 1045 steel has a low through-hardening capability with only sections of around 60 mm in size being recommended as suitable for tempering and through-hardening. However, it can be efficiently flame- or induction-hardened in the normalized or hot rolled condition to obtain surface hardnesses in the range of Rc 54 - Rc 60 based on factors such as section size, type of set up, quenching medium used etc.

AISI 1045 steel lacks suitable alloying elements and hence does not respond to the nitriding process.



Chemical composition of AISI 1045



C FE MN P S
0.420 - 0.50% 98.51 - 98.98% 0.60 - 0.90% ≤ 0.040% ≤ 0.050%



Mechanical Properties



Mechanical Properties Metric Imperial
Hardness, Brinell 163 163
Hardness, Knoop (Converted from Brinell hardness) 184 184
Hardness, Rockwell B (Converted from Brinell hardness) 84 84
Hardness, Vickers (Converted from Brinell hardness) 170 170
Tensile Strength, Ultimate 565 MPa 81900 psi
Tensile Strength, Yield 310 MPa 45000 psi
Elongation at Break (in 50 mm) 16.0 % 16.0 %
Reduction of Area 40.0 % 40.0 %
Modulus of Elasticity (Typical for steel) 200 GPa 29000 ksi
Bulk Modulus (Typical for steel) 140 GPa 20300 ksi
Poissons Ratio (Typical For Steel) 0.290 0.290
Shear Modulus (Typical for steel) 80 GPa 11600 ksi

Applications

AISI 1045 is widely used for all industrial applications requiring more wear-resistance and strength. Typical applications of AISI 1045 are as follows:

Gears Pins Rams
Shafts Rolls Sockets
Axles Spindles Worms
Bolts Ratchets Light gears
Studs Crankshafts Guide rods
Connecting rods Torsion bars Hydraulic clamps



Grade S45C 10 - 200mm Aisi 1045 Steel Plate 0Grade S45C 10 - 200mm Aisi 1045 Steel Plate 1
