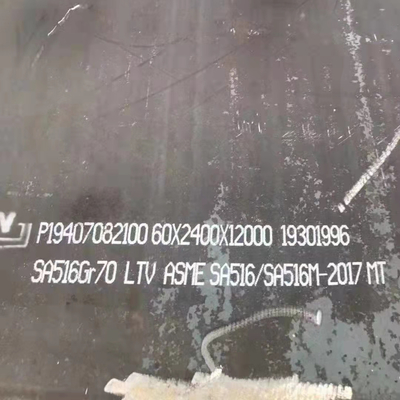

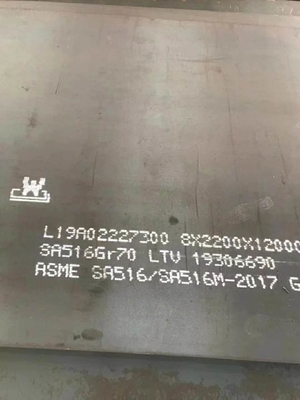

Boiler Quality Pressure Vessel Steel Plate ASTM A516GR 70 Pressure Vessel Boiler Steel Plate

Boiler Quality Pressure Vessel Steel Plate ASTM A516GR 70 Pressure Vessel Boiler Steel Plate
Boiler Quality Pressure Vessel Steel Plate ASTM A516GR 70 Pressure Vessel Boiler Steel Plate Boiler Quality Pressure Vessel Steel Plate ASTM A516GR 70 Pressure Vessel Boiler Steel Plate Boiler Quality Pressure Vessel Steel Plate ASTM A516GR 70 Pressure Vessel Boiler Steel Plate

Large Image :  Boiler Quality Pressure Vessel Steel Plate ASTM A516GR 70 Pressure Vessel Boiler Steel Plate

Product Details:
Place of Origin: China Jiangsu
Brand Name: NANJING STEEL
Certification: ISO MTC
Model Number: A516GR 70
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 0.85 USD/KG
Packaging Details: Wooden Pallet
Delivery Time: 7 Days after received the payments
Payment Terms: L/C, T/T
Supply Ability: 80000KGS

Boiler Quality Pressure Vessel Steel Plate ASTM A516GR 70 Pressure Vessel Boiler Steel Plate

Description
Width: 600-3500mm Grade: A516GR 70
Application: Boiler Plate Technique: Hot Rolled
Type: Steel Plate Standard: ASTM
Length: 1000-12000mm Special Use: Pressure Vessel Boiler
Thickness: 6-400mm Shape: Flat Steel Plate
High Light:

low carbon steel plate

,

high carbon steel plate

ASME SA516 grade introduction:
SA516 grade 55, SA516 grade 60, SA516 grade 65, SA516 grade 70. These 4 grades are mainly defined by their different tensile and yield strength range, which is influenced by content of Carbon. For example sa 516 grade 70 has the highest tensile and yield strength range due to the highest Carbon content(up to0.28%). For higher grade like sa516 gr-70 steel plate, preheating might be needed for metal arc welding process, especialy with thick steel plate.

Test&Inspection for ASME A516 Steel Plate

Delivery State:
SA516-70n reffers to normalized steel plate product, for steel plate and sheet thinner than 40mm we normally supply them as rolled-steel coil. Plates with thickness above 40mm are supplied normalized. SA516 grade 70 steel plate density is 0.284 cu/in3 (7861 kg/m3).

Mild test:
ASME SA 516-carbon steel plates are manufactured with mill certification following EN10204 3.1 or EN10204 3.2 standard version.
Inspection: MOODY SGS BV GL DNV ABS LIOYD’S Test: X-ray, UT, magnetic particle, inspection.

ASME SA 516 GR.70-55 Chemical Composition:

Chemical Composition Maximum C % for thickness t (mm) Mn % for
thickness t (mm)
Si % P % max

S % max

6-12.5mm 12.5-25mm 25-50mm >50mm ≤12.5mm >12.5mm
ASME A516 Gr
55
0.18 0.20 0.22 0.25 0.55-0.98 0.60-1.30 0.13-0.45 0.035 0.035
ASME A516 Gr 60 0.21 0.23 0.23 0.25 0.6-0.9 0.80-1.20 0.13-0.45 0.035 0.035
ASME A516 Gr
65
0.24 0.26 0.26 0.28 0.85-1.20 0.85-1.20 0.13-0.45 0.035 0.035
ASME A516 Gr
70
0.27 0.28 0.28 0.30 0.85-1.20 0.85-1.20 0.13-0.45 0.035 0.035

ASME SA 516 GR.70-55 Mechanical Property:

Mechanical Property Tensile
strength
(MPa)
Minimum
yield
strength
(MPa)
Minimum elongation (%) gauge length
50mm 200mm
ASME A516 Gr
55
380-515 205 27 23
ASME A516 Gr 60 415 - 550 220 25 21
ASME A516 Gr
65
450 - 585 240 23 19
ASME A516 Gr
70
485 - 620 260 21 17



Boiler Quality Pressure Vessel Steel Plate ASTM A516GR 70 Pressure Vessel Boiler Steel Plate 0Boiler Quality Pressure Vessel Steel Plate ASTM A516GR 70 Pressure Vessel Boiler Steel Plate 1Boiler Quality Pressure Vessel Steel Plate ASTM A516GR 70 Pressure Vessel Boiler Steel Plate 2
