Product Details:
|
| Application: | Construction,Industry,boiler,Chemical | Standard: | DIN,ASTM,JIS,AISI |
|---|---|---|---|
| Steel Grade: | 304 304L 316 316L 310S 321 | Type: | Seamless |
| Thickness: | 1-95mm | Length: | 3000mm~6000mm,Customer Request,18000max. |
| Shape: | Round.square.Rectangle | Outer Diameter: | 6-630mm |
| Technique: | Cold Drawn,Seamless/Welded | ||
| High Light: | seamless stainless steel tube,astm stainless steel pipe |
||

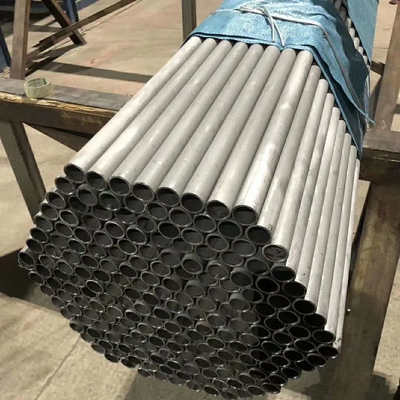

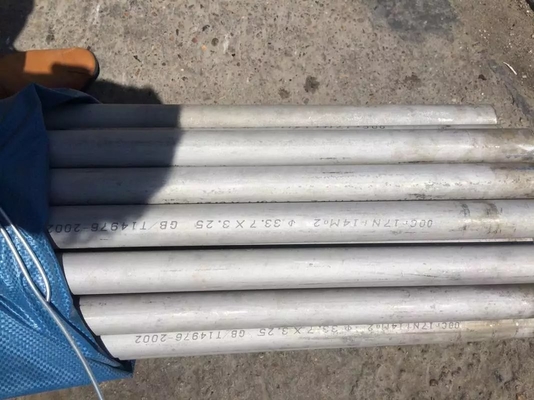

316L Stainless Steel Seamless Tube ASTM A312 TP 316L Seamless 316l Stainless Steel Tube
|
1. Commodity:
|
316L stainless steel pipe
|
||
|
2. Diameter:
|
6~200MM
|
||
|
3. Wall Thickness:
|
0.1~3.5MM
|
||
|
4. Length:
|
Any length between 1~20 meters, will be customized
|
||
|
5. Standard:
|
ASME SA249, SA312, A269, A688, DIN 17455, EN 10217-7 etc.
|
||
|
6. Surface:
|
Bright annealed surface, Polished surface
|
||
|
7. Other Materials:
|
304L, 316, 317, 317L, 321, 310S, 347, 2205, s31803
|
||
|
8. Material origin:
|
POSCO, ZPSS, TISCO, LISCO
|
||
|
9. Delivery time:
|
7~15 days upon receipt PO
|
||
|
10. Package
|
We choose difference packages depends on wall thickness ( See below picture )
a) WT<1.5MM: wrapped with PVC bag, then packed in iron-framed boxes. b) WT≥1.5MM: comes in hexagonal bundle packing c) packing as per customer's standard |
||
|
11. Application:
|
Evaporative condenser, Heat exchanger, Steam Condenser, Liquid-transportation, Electric Power, Auto Parts, and Chemical Industry.
|
||
|
12. Product quality:
|
First quality. ( We're recognized as top 3 in the field of stainless steel tube in China)
|
||
|
13. More information: |
|||
Chemical composition (%):
|
Material
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Ni
|
Mo
|
|
316L
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
16.0~18.0
|
10.0~14.0
|
2.0~3.0
|
We take care of the tubes very well, and choose the most suitable packages ways for customers.
If customer has special requirement, we can also meet it.
a) Hexagonal bundles
b) Iron boxes
c) Good quality plywood boxes
d) Good quality wooden boxes
e) Customized package .
With so nice packing, your cargos will be well protected & keep safe.

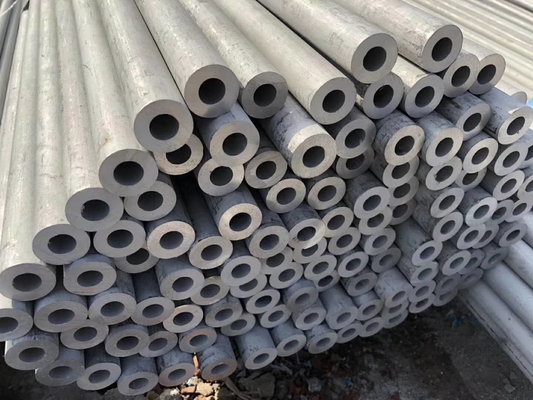

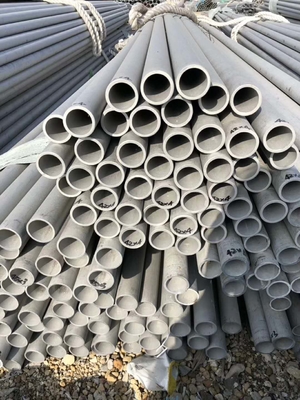

In hexagonal bundles:
If the wall thickness is more thicker, the tubes will come in hexagonal bundles to help customer to save the cost.

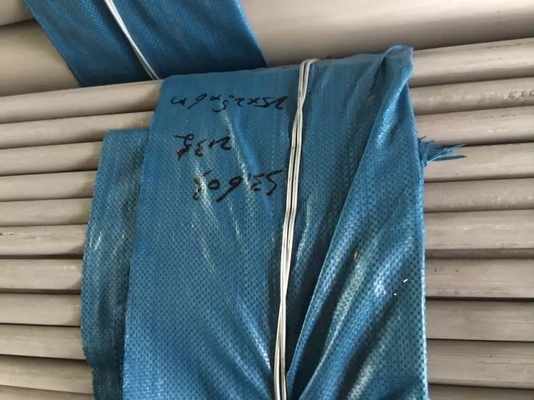

Packed in iron-framed boxes:
If the wall thicknss is less than 2.0MM, the tubes will be wrapped with PVC bag, then packed in iron-framed boxes. In this case, it can avoid any damages during the transportation ( loading & unloading at the port. )
Focus on stainless tubes for 20 years, with the advanced production lines, that enhance the quality.
