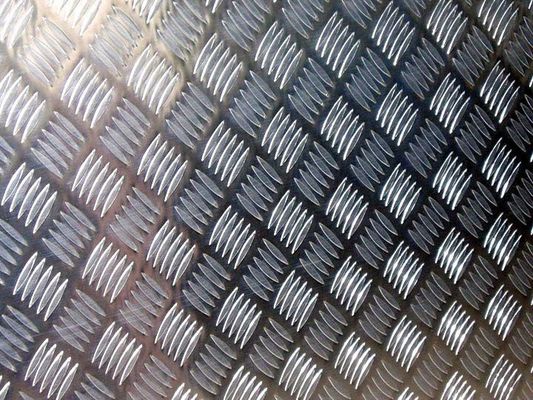

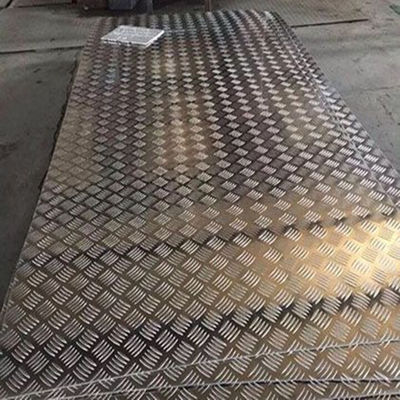

6061 T6 Grade Aluminum Sheet Metal 4 X 8 Diamond Plate 2000-3000mm Length

6061 T6 Grade Aluminum Sheet Metal 4 X 8 Diamond Plate 2000-3000mm Length
6061 T6 Grade Aluminum Sheet Metal 4 X 8 Diamond Plate 2000-3000mm Length 6061 T6 Grade Aluminum Sheet Metal 4 X 8 Diamond Plate 2000-3000mm Length 6061 T6 Grade Aluminum Sheet Metal 4 X 8 Diamond Plate 2000-3000mm Length 6061 T6 Grade Aluminum Sheet Metal 4 X 8 Diamond Plate 2000-3000mm Length 6061 T6 Grade Aluminum Sheet Metal 4 X 8 Diamond Plate 2000-3000mm Length

Large Image :  6061 T6 Grade Aluminum Sheet Metal 4 X 8 Diamond Plate 2000-3000mm Length

Product Details:
Place of Origin: China
Brand Name: Mittel
Certification: SGS ISO MTC
Model Number: 6061 T6
Payment & Shipping Terms:
Minimum Order Quantity: 200KGS
Price: 3.15 USD/KG
Packaging Details: Export Packing
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 80000KGS

6061 T6 Grade Aluminum Sheet Metal 4 X 8 Diamond Plate 2000-3000mm Length

Description
Grade: 6061 Width: 1000-1250mm
Length: 2000-3000mm Surface: Checkered Plate
High Light:

copper pipes

,

brass tube



6061 T6 Grade Aluminium Metal Sheet Aluminum Sheets 4'x8' Diamond Plate Aluminum Sheet

6061-T6 is one of the most commonly used 6000 series aluminum alloys.

6000 series aluminum sheet provided includes 6061 and 6082 series. More specifically, the 6061 series aluminum sheet is the representative product among this series.
The main ingredient of this series aluminum sheet includes magnesium and silicium elements. It has the features of both 4000 and 5000 series.
6000 Aluminum Sheet Specifications
Alloy:6061 6063 6082 6A02 etc.
Thickness:0.2-150mm
Temper: 0-H112
Thickness(mm): 0.6-5.0mm
Width(mm): 100-1800mm
Certificate: ISO9001, MSDS, SGS
Features of 6000 Series Aluminum Sheet
1,It is a kind of aluminum sheet which can be forged with cold treatment. With this, it can be used in situations which have high demand in anti-corrosion and oxidation.
2,As a result of its good availability and its connector with super features, it is easily coated and has good processability.
3,Suitable for further processing of cladding wall and curtain wall
Applications of 6000 Series Aluminum Sheet
This series aluminum sheet can be used in processing airplane parts, camera parts, couplers, ship parts, hardware, electronic accessories and joints, valves and valve parts, etc. It can also be used in low tension weapons and connectors in airplane.
We also provide aluminum sheet, aluminum slit coil, 5 bar aluminum tread plate, aluminum strip, anodizing aluminum coil, diamond aluminum tread plate, aluminum coil, and more. For further information on any of our products, please feel free to contact us via the phone number or email provided on our website.
As a China-based 6061 aluminum sheet manufacturer and supplier, we also produce coated aluminum coil, aluminum plate, aluminium slit coil, aluminum strip, anodising aluminum sheet, embossed aluminum sheet, etc. For more detailed information, please continue browsing our website or feel free to contact us directly.


Aluminium Alloy 6061


Technical Data Sheet



Chemical Composition Limits
Weight%AlSiFeCuMnMgCrZnTiOther EachOthers Total
6061Bal0.40 - 0.800.70 max0.15-0.400.150.8-1.20.04-0.350.25 max0.15 max0.05 max0.15 max

Aluminum 6061 is an extremely versatile heat treatable aluminum alloy due to its content of silicon and magnesium. 6061 has a wide range of mechanical and corrosion resistance properties as well as having most of the good qualities of aluminum. 6061 is used in a many applications from aircraft structures, yacht construction, truck bodies, bicycle frames to screw machine parts.

Typical Mechanical Properties



MaterialThickness (in)Tensile Strength (ksi)Yield Strength (ksi)Elongation
Alloy 6061 Sheet T60.020-0.500423510
Alloy 6061 Sheet T60.500-1.00042359
Alloy 6061 Sheet T61.00-2.0042358
Alloy 6061 Sheet T62.00-4.0042356
Alloy 6061 Sheet T64.00-6.0040356



MaterialTemperDiameter (in)Tensile Strength (ksi)Yield Strength (ksi)Elongation
Alloy 6061 Bar
Cold Finished
T651All423510
Alloy 6061 Bar
Cold Finished
T6511<0.25"38358
Alloy 6061 Bar
Cold Finished
T6511>0.25"383510
Alloy 6061 Bar - T651 / T6 condition and extruded T6511/T6


Availability
Aluminium Alloy 6061 Sheet, Plate, Wire, Rod, Bar (Hexagon, Round, Square), Tube and extrusions. 6061 Foil (Shim) is available in various thicknesses. View stock list for further information. Foil Stock List , Sheet Stock List, Plate Stock List. For all stock availability of Aluminium Alloy 6061 contact Sales.
Specifications
BS L117 Alloy 6061 Tube Drawn T6
BS L118 Alloy 6061 Tube Drawn T6 Hydraulically Tested
H20
HE20 6061 Extrusions
HP20 6061 Plate
HS20 6061 Sheet
AMS 4009 6061-0 Foil
AMS 4021 6061-0 Alclad Sheet and Plate
AMS 4022 6061 Alclad Sheet and Plate Cancelled
AMS 4023 6061 Alclad Sheet and Plate Cancelled
AMS 4025 6061-0 Sheet and Plate
AMS 4026 6061-T4 Sheet T451 Plate
AMS 4027 6061-T6 Sheet and T651 Plate
AMS 4053 6061 Cancelled
AMS 4079 6061-0 Tube Drawn Seamless Close Tolerence
AMS 4080 6061-0 Tube Drawn Seamless
AMS 4081 6081-T4 Tube Drawn Seamless Hydraulic
AMS 4082 6061-T6 Tube Drawn Seamless
AMS 4083 6061-T6 Tube Drawn Seamless Hydraulic
AMS 4091 Superseded by AMS 4081
AMS 4092 Superseded by AMS 4082
AMS 4093 Superseded by AMS 4083
AMS 4113 6061-T6 Extruded shapes
AMS 4115 6061-0 Cold finished bars, rod, wire
AMS 4116 6061-T4 Cold finished bars, rod, wire
AMS 4117 6061-T6/T651 Cold finished bars, rod, wire
AMS 4127 6061-T6 Forgings Rolled or Forged
AMS 4128 6061-T451 Bars Rolled or Forged
AMS 4129 6061-T651 Superseded by 4117
AMS 4146 6061-T4 Forgings
AMS 4150 6061-T6 Extrusions and Rings
AMS 4160 6061-0 Extrusion
AMS 4161 6061-T4 Extrusion
AMS 4172 6061-T4511 Extrusion
AMS 4173 6061-T6511 Extrusion
QQ-A-200/8 6061-T6/T6511 Extruded bar, tube, section
QQ-A-200/16 6061-T6 extruded stuctural shapes
QQ-A-225/8 6061-T6 / T651 Cold finished bar, tube, section
QQ-A-250/11 6061 Sheet and Plate
WW-T-700/6 6061-T6 Seamless, drawn tube
MIL-T-7081 6061-T6 Hydraulic tube
QQ-A-367 6061 Forgings
WS 3.3211
WS 3.3214
EN 2392 6061-T6 Tube
EN 2694 6061-T6 Sheet, strip
EN 3341 6061-T4 Sheet, strip
EN 3342 6061-T4 Extruded bar
EN 3557
EN 4213 6061-T651 Plate
AWCO-22
Birmetal-016
BA22
Duricilium-Q
Hiduminium-43
LA 380
ABM 2-3023
ABM 2-3025
ABM 2-3026
ABS 5144
ABS 5151
BACM 123
BACM 171 6061-0 Tube
A-GSUC
L-3453
ASN-A-3277
NCT 15-238-01
AIR 9048.210 6061-0 Sheet
AIR 9048.220 6061-T4 Sheet
AIR 9048.230 6061-0 Sheet
AIR 9048.240 6061-T6 Sheet
AIR 9049
