Product Details:
|
| Grade: | QSTE420TM | Thickness: | 0.5-5.0mm |
|---|---|---|---|
| Width: | 100-1250mm | Condition: | Cold Rolled |
| High Light: | low carbon steel plate,carbon steel sheet |
||
QStE420TM steel plate/sheet High yield strength for cold forming steels
SEW092 QStE420TM steel plate/sheet,SEW092 QStE420TM steel plate/sheet, we can regard QStE420TM steel plate/sheet as high yield strength steels for cold-forming steels.
QStE420TM steel plate is mainly used as high yield strength steels for cold-forming steels.
The SEW092 QStE420TM steel is equivalent to EN S420MC, NFA E420D, UNI FeE420TM, ASTM X60XLK and BS HR50F45 steel grades.
|
QStE420TM SEW092 Number:1.0980 |
Comparison of steel grades |
|
|
EN 10149-2 |
S420MC |
|
|
NFA36-231 |
E420D |
|
|
UNI8890 |
FeE420TM |
|
|
ASTM |
060XLK |
|
|
BS1449 |
HR50F45 |
|
QStE420TM steel Chemical Composition
|
Grade |
C max |
Si max |
Mn max |
P max |
S max |
AL max |
Nb max |
V max |
Ti max |
|
QStE420TM |
0.12 |
0.50 |
1.6 |
0.025 |
0.015 |
0.015 |
0.09 |
0.2 |
0.15 |
QStE420TM steel Mechnical Properties
|
Nominal thickness(mm) |
- |
|
ReH-Minimun yield strength(Mpa) |
420 |
|
Nominal thickness(mm) |
- |
|
Rm-Tensile strength(Mpa) |
480-620 |
|
Nominal thickness(mm) |
From3 |
|
A-Minimum elongation Lo=5,65√So(%) |
19 |
|
Nominal thickness(mm) |
to3 |
|
A-Minimum elongation Lo=Lo=80mm(%) |
16 |
we are QStE420TM steel suppliers ,also can supply QStE340TM steel,QStE380TM steel,QStE460TM steel,please contact us if you need.
StE420TM is a kind of Automotive structural steel, QStE420TM widely used for forming performance of the automobile frame, wheels and other automobile components.QStE420TM Hot-rolled grain steel for cold forming used for automotive structural parts such as automobile frames,which requires excellent cold forming performance and high-strength.
Key words:QStE420TM,QStE420TM automotive steel,QStE420TM automotive steel, QStE420TM steel for cold forming,QStE420TM hot rolled steel plate/thin plate / steel belt,Hot-rolled pickled strip QStE420TM steel,QStE420TM automotive steel for cold forming parts,QStE420TM high-strength automotive steel
QStE420TM steel chemical composition %
|
Grade |
Chemical Composition a (Heat Analysis) (%) |
||||||
|
C |
Si |
Mn |
P |
S |
Alt |
Others |
|
|
QStE420TM |
≤0.12 |
≤0.50 |
≤1.50 |
≤0.030 |
≤0.025 |
≥0.015 |
Nb≤0.09 V≤0.20 Ti≤0.15 |
QStE420TM Mechanical properties
|
Grade |
Tensile Testa |
180°Bending Test b Diameter |
||||
|
ReH (MPa) |
Rm (MPa) |
Elongation (%) |
||||
|
L0=80mm,b=20mm |
L0=5.65√S0 |
|||||
|
Nominal Thickness(mm) |
||||||
|
<3.0 |
≥3.0 |
0.5a |
||||
|
QStE420TM |
≥420 |
480~620 |
≥16 |
≥21 |
1a |
|
a: Tensile test specified values apply to longitudinal samples. Tensile test should use sample of L0=50mm, b=25mm, i.e. P14 sample of GB/T 228.

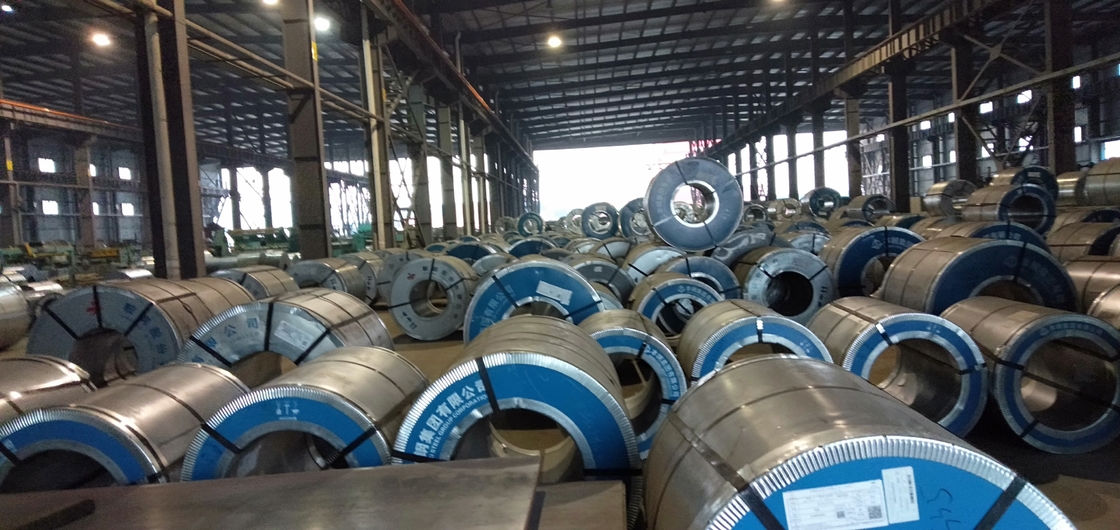

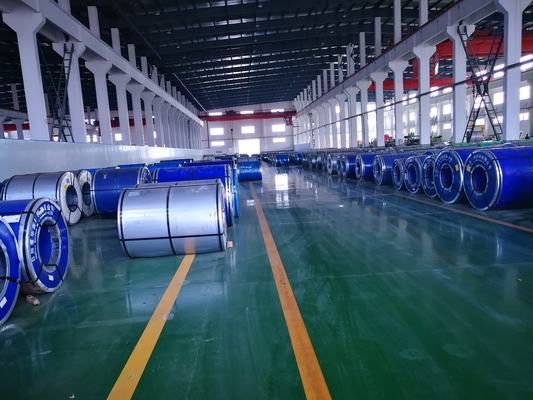

JW steel keeps more than 10,000 tons QStE420TM steel plates in stock each month. We can meet our customer’s any quantity request. Based on these stock source, our advantage industry spread into steel process like : cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure.
We also have a high quality logistics team who make sure the fast delivery time and shipment. Anyway, if you want to find hot rolled and cold rolled QStE420TM steel supplier, hot rolled and cold rolled QStE420TM steel manufacturer, hot rolled and cold rolled QStE420TM steel exporter, please contact JW steel’s sales team. We will give you the hot rolled and cold rolled QStE420TM competitive price, hot rolled and cold rolled QStE420TM good quality and best service from us.
