Product Details:
|
| Width: | 600-2500mm | Grade: | S355J2+N |
|---|---|---|---|
| Technique: | Hot Rolled | Type: | Steel Plate |
| Standard: | ASTM,AISI,JIS,DIN | Length: | 1000-12000mm |
| Special Use: | High-strength Steel Plate | Thickness: | 6-100mm |
| Product Name: | High Quality S355J2+N Hot Rolled Carbon Steel Plate | Shape: | Flat Steel Plate |
| High Light: | 10mm Hot Rolled Carbon Steel Plate,1.0577 Hot Rolled Carbon Steel Sheet,S355J2+N Hot Rolled Mild Steel Sheet |
||

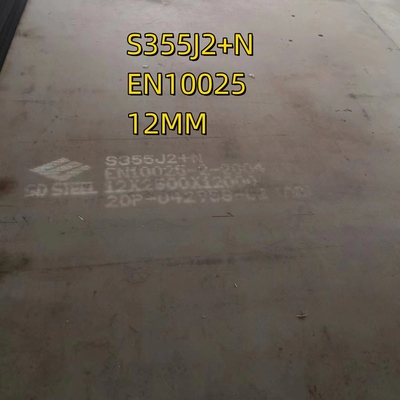

S355J2+N 10*1500*3000mm 1.0577 Steel Plate Hot Rolled Products of Structural Steel EN 10025-2 3.1 Certificate
S355J2 steel (1.0577) is a quality grade of S355 steel, which is one of the non-alloy structural steels commonly used in Europe. According to EN 10025-2: Hot rolled products of structural steels, S355 steel is divided into 4 quality grades, namely:
EN 10025 S355J2 equivalent ASTM A992/A992M; Australian AS/NZS 3678: Grade 350 L20; Canadian G40.20/G40.21: 350WT (55WT); Chinese GB/T 1591: Q355D; and Indian standard IS 2062: E350.
S355J2 Meaning: “S” stands for “Structural steel”; 355 indicates that the material has a minimum yield strength of 355 MPa when the nominal thickness is ≤ 16mm; and “J2” indicates that the material has a minimum impact energy of 27J at -20°C (-4 °F).
S355J2 steel properties are listed in the datasheet below, including chemical composition, physical and mechanical properties, etc.
Chemical composition based on heat analysis.
| Chemical Composition, % (≤) | |||||||||
| Standard | Steel (Material Number) | C | Si | Mn | P | S | Cu | N | Method of deoxidation |
| EN 10025-2 | S355J2 (1.0577) | 0.20 | 0.55 | 1.60 | 0.025 | 0.025 | 0.55 | – | Fully killed |
Note: For carbon content (C) and nominal thickness (t)
| Chemical Composition (Product Analysis), % (≤) | |||||||||
| Standard | Steel (Material Number) | C | Si | Mn | P | S | Cu | N | Method of deoxidation |
| EN 10025-2 | S355J2 (1.0577) | 0.23 | 0.6 | 1.70 | 0.035 | 0.035 | 0.60 | – | Fully killed |
Note: For carbon content (C) and nominal thickness (t)
S355J2 mechanical properties at room temperature are listed in the datasheet below, including tensile strength, yield strength, and elongation, etc.
| Yield Strength, Mpa, ≥ | |||||||||
| Steel Grade (Steel Number) | t≤16 | 16< t ≤40 | 40< t ≤63 | 63< t ≤80 | 80< t ≤100 | 100< t ≤150 | 150< t ≤200 | 200< t ≤250 | 250< t ≤400 |
| S355J2 (1.0577) | 355 | 345 | 335 | 325 | 315 | 295 | 285 | 275 | 265 |
| Tensile Strength, Mpa, ≥ | |||
| Steel Grade (Material Number) | t<3 | 3 ≤ t ≤ 100 | 100 < t ≤400 |
| S355J2 (1.0577) | 510-680 | 470-630 | 450-600 |
Note:
