310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel

China 310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel supplier
310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel supplier 310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel supplier 310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel supplier 310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel supplier 310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel supplier

Large Image :  310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel

Product Details:

Place of Origin: China
Brand Name: TISCO ZPSS
Certification: SGS ISO MTC
Model Number: 314

Payment & Shipping Terms:

Minimum Order Quantity: 500KGS
Price: 5.5 USD/KG

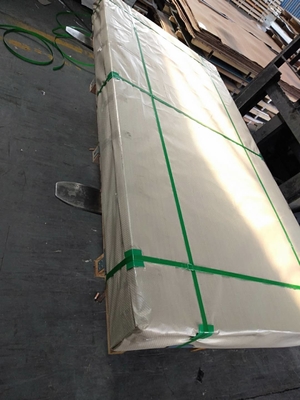

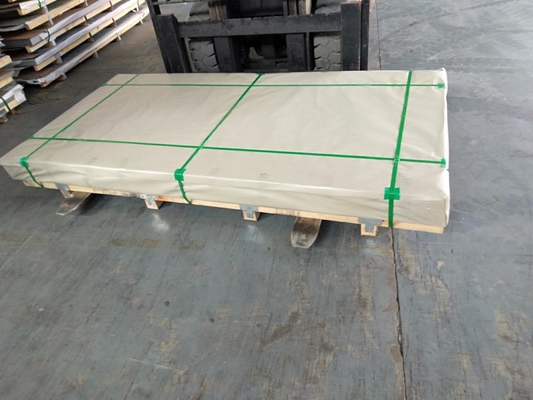

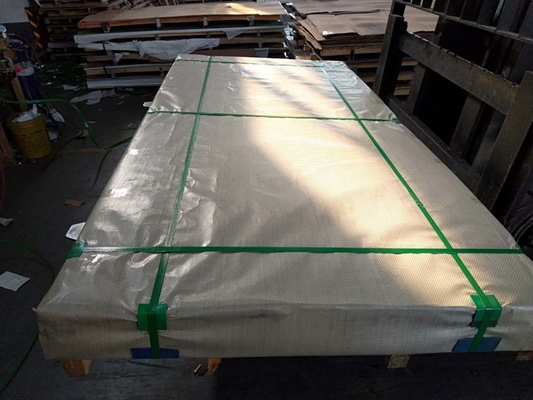

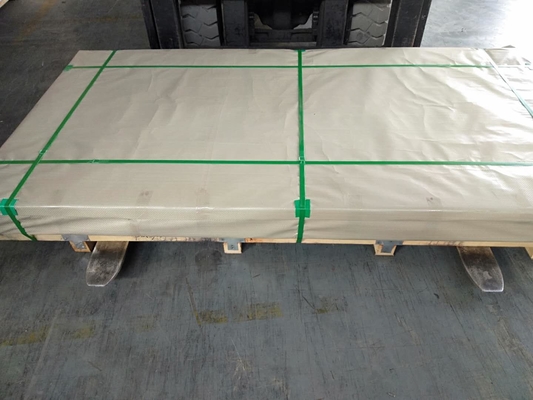

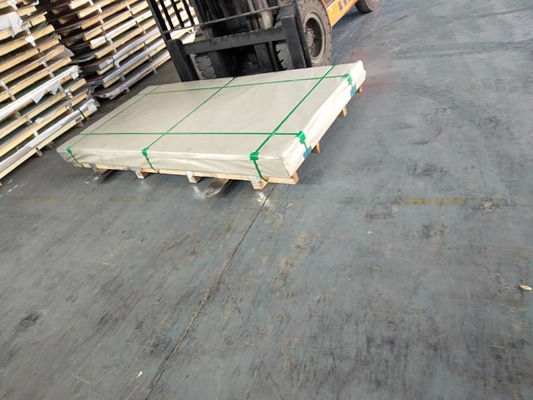

Packaging Details: Wodden Box
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS
Contact Now
Detailed Product Description
Material: Stainless Steel Metal Type: Stainless Steel
Thickness: 1-3mm,1.0mm Or Customized Surface: According To Customer Demand,Mirror Or Matt
Width: 1000-3000mm Length: 2000-12000mm

Introduction

Stainless steel grade 314 has excellent high-temperature resistance characteristics among the chromium-nickel steels series. The silicon content in this material improves oxidation and carburization resistance; however, it can become very brittle when subjected to prolonged temperatures of 649-816°C (1200- 1500°F).



Chemical Composition

Element Content (%)
Iron, fe Balance
Chromium, Cr 23-26
Nickel, Ni 19-22
Manganese, Mn 2
Silicon, Si 1.5-3
Carbon, C 0.25
Sulfur, S 0.03
Phosphorous, P 0.045

Mechanical Properties

Properties Metric Imperial
Tensile strength 689 MPa 99900 psi
Yield strength 345 MPa 50000 psi
Modulus of elasticity 200 GPa 29000 ksi
Elongation at break (in 50 mm) 40% 40%
Hardness, Rockwell B 85 85



Applications

Grade 314 steel is widely used in the following applications:

  • Radiant tubes
  • Equipment for furnaces
  • Heat treatment components
  • Annealing and carburizing boxes

310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel310Si2 SUS314 Stainless Steel Plate 314 Stainless Steel Material Properties AISI 314 (S31400) Stainless Steel
