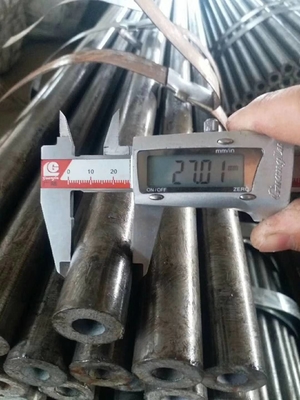

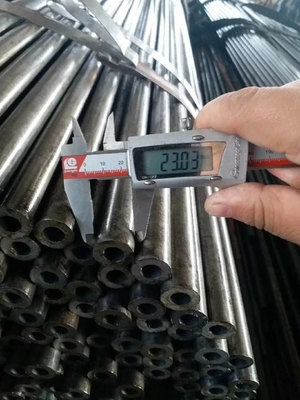

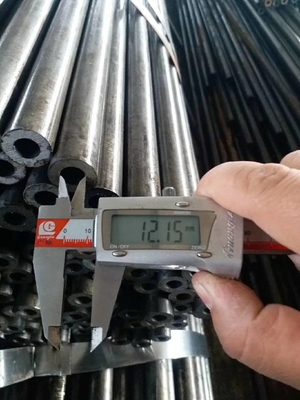

Cold Drawn Seamless Steel Tube Precision Tube Outer Diameter 6.35-140mm Inner Diamter 13-130mm
ASTM A213 DIN 17175 Annealed Cold Drawn Seamless Steel Tube , Carbon Steel Liquid Pipe
1,Standards: ASTM / DIN / EN / GOST / SAE / JIS etc
2,Material Grade: Carbon Steel / Alloy Steel or According to requirements.
OD: 12.7 mm
WT: 2.11 mm;
Length: max 25m
Product name: Heat Exchanger Tubes / Cold Drawn / ERW
Standard executived: ASTM / DIN / EN / GOST / SAE / JIS etc
(ASTM A179,ASTM A199, ASTM A200, ASTM A213, DIN 17175,JIS G3462,JIS G3458 )
Length:6m-25m,also can be manufactured according to customers' requirements
Type:Cold Drawn or ERW
Ends:Plain ends or bevel ends
Delivery Conditions: BK,BKS,BKW,NBK,GBK( As drawn, quenched and tempered, normalized, annealed, stress-relieved)As different requirements,It including pickling,etc. AS per Standard.
Coating for protection:black painting,anti-rust oiled or varnish,also can be required according to customers' requirements
Factory test and other terms:
1.Hydrostatic or Nondestructive Electric Test
2.Heat Treatment: according to Standard
3.Surface Condition:According to Standard.
4.Grain Size:According to standard
6.we provide bevel end,plastic cap, varnish coating, oiled or black painted to prevent rustand other packing
Main Specification Details:
|Name||Cold drawn or ERW straight steel tubes and pipes for heat exchanger|
Meet or exceed ASTM,ASME,API,ANSI and DIN standards.
ASTM A106/A179/A192/A210/A213/A519 etc.
Length:max 2400mm,generally 6000mm
Cold drawn or cold rolled precision seamless steel tubes for hydraulic pressure and pneumatic services.
Seamless steel pipes for low and medium pressure boiler, high pressure boiler,
ship-building,Liquid service, petroleum cracking, chemical fertilizer equipment,
Drawing-oil-equipment and structure purposes.
DIN series cold drawn precision seamless steel tubes
DIN series cold rolled precision seamless steel tubes
Related coated and galvanized steel tubes
Rustproof phosphyorylated tube
No Oxidation Layer on the outer and inner walls;
No Leakage under high pressure;
No Crake under flating and flattening;
No distortion after cold bending;
High precision high cleanness;
cold drawn and hot finished
Superior performance for high pressure and temperature uses
Black finish and hot dip galvanized
Excellent corrosion resistance
|Cold finished (hard)||BK||Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation.|
|Cold finished (soft)||BKW||The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming. (e.g. bending, expanding).|
|Cold finished and stress-relieved||BKS||Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.|
|Annealed||GBK||The last cold forming process is followed by annealing in a controlled atmosphere.|
|Normalized||NBK||The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.|
All other tubes applicable for boiler and heat exchanger tube we can produce ,
|Chinese Standard||Steel Grade/ No.||American Standard||Steel Grade/ No.|
|ASTM A106||GR. A,B,C|
|ASTM A209||T1, Ta, Tb|
|German standard||Steel Grade/ No.||Japanese standard||Steel Grade/ No.|
|DIN17175||ST35.8, ST45.8||JIS G3454||STPG370,STPG410|
|DIN1629||ST37.0, ST44.0, ST52.0||JIS G3461||STB340, STB410, STB440|
|British Standard||Steel Grade/ No.||European standard||Steel Grade/ No.|
1,For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2,Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3,Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4,The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5,Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
