Product Details:
|
| Certification: | ISO9001-2000 | Grade: | ST37 Q235B SS400 |
|---|---|---|---|
| Alloy Or Not: | Non-alloy | Technique: | ERW |
| Standard2: | BS 1387 | Thickness: | 1.5 - 30 Mm |
| Application: | Structure Pipe,Oil Pipe,Gas Pipe,Bridge,Drill Pipe | Surface Treatment: | Bare / Black Paint |
| Section Shape: | Round | Outer Diameter(round): | 13.7 - 1016 Mm |
| Length: | 5.8-12m | Shape: | Round Shape |
| Material: | Q195/Q215/Q235/Q345,carbon Steel | Usage: | Oil Gas Sewage Transport,Construction Structure,Water Supply And Other Application,Transportation Oil And Water |
| High Light: | sonic logging tube for bored pile,50mm sonic logging pipe,erw steel sonic tube in pile |
||
Basic Information

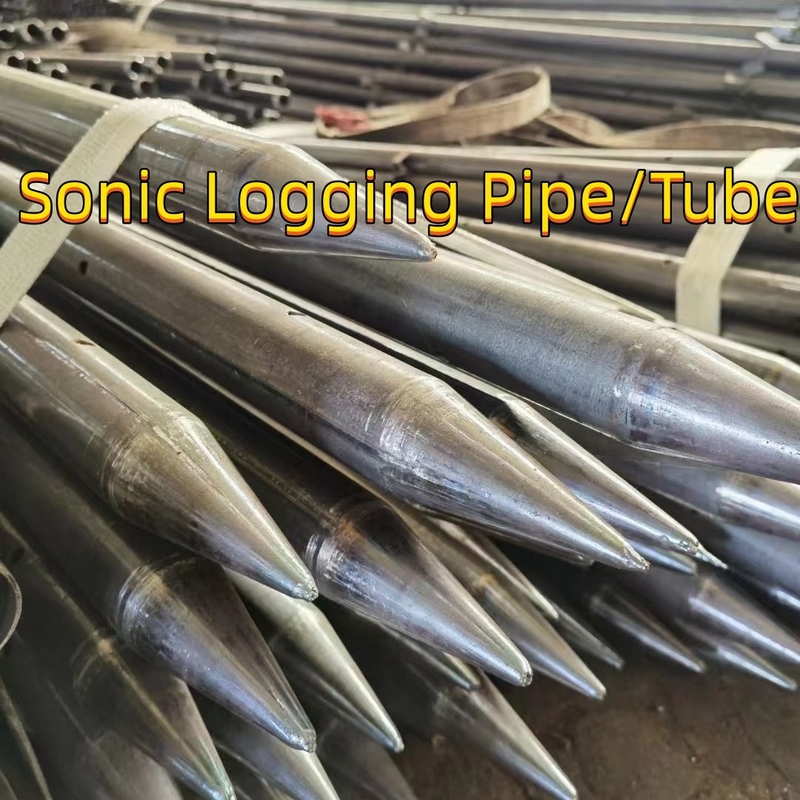

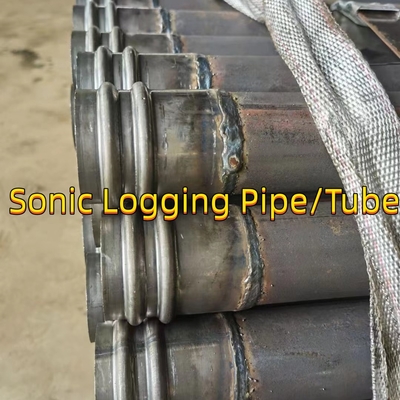

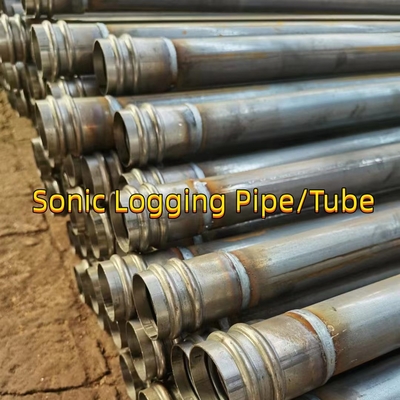

| Name | High Quality Thick Wall ERW Steel Sonic Tube Sounding Pipe |
| Shape | Round |
| Outer Diameter | 50-60mm |
| Wall Thickness | 1.0-3.5mm |
| Standard | API 5L, ASTM A53M-2007, BS 1387, DIN 2391, GB/T 9711.1-1997, JIS G3445-2006 |
| Steel Grade | Q195, Q215, Q235, Q345, ST35, St52 |
| Surface | Bared, Galvanized, Oiled, Color Paint, 3 PE or other Anti-corrosive Treatment |
| Inspection | With Chemical Composition and Mechanical Properties Analysis; Dimensional |
| Usage | Used in the sonic testing application |
| Main Market | Middle East, Africa, Asia and South American |
Position splice
• No wastage - standard lengths
• No Electricity/Welding/Threading
• Push-fit assembly
• Fast & Light handling by workers
• Easy fixing to rebar cage
• No weather limitations
• Patented & designed for sonic testing
• 100% tested in factory
• Easy visual inspection on site
• Optional mechanical crimping
| Size/OD(mm | WT(mm) | Tensile strength(Mpa) | Elongation | Internal pressure(Mpa) | External ressure(Mpa) |
| 50 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 54 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
| 57 | 1--3.5 | ≥315Mpa | ≥14% | ≥1Mpa | ≥4Mpa |
1. Use professional hydraulic pliers to connect, no preparation work outside the construction site, no equipment required, simple and fast (5 times faster than traditional methods), easy to fix the steel cage, and not affected by bad weather.
2. The length can be adjusted according to the site requirements without any loss.
3. This product is a patented product. Compared with similar products on the market, its tensile strength is higher, reaching more than 3.8 tons (generally other products have a tensile strength of about 0.3 tons).
4. Professional design, 100% quality control before leaving the factory, and convenient construction site inspection.
5. Save costs, shorten preparation time, do not require technicians, save energy loss (different types of short pipes can be made according to customer requirements), and are not subject to site restrictions.
6. Fast, standard pipes can be provided at any time, and can enter the construction site within 24 hours.
7. It is safe and does not require welding work at the construction site.
We specialize in R&D and production of seismic isolation and damping products for both buildings and bridges. Our products include rubber bearings, spherical bearings, friction pendulum systems, fluid viscous dampers, tuned mass dampers, buckling-restrained braces, friction dampers and metallic dampers. In addition, we manufacture bridge expansion joints and fiber-enhanced plastic products.
1. Advanced equipment. Our workshop has more than 100 pieces of the most advanced equipment to ensure timely delivery of large orders. In addition, standardized production can be guaranteed to comply with international standards.
2. Experienced and skilled technical and production teams have professional production skills and many years of experience. Our team of workers can improve production efficiency, shorten the production cycle, and thereby reduce costs.
3. Complete product models, we have a variety of bearings for construction, including basin bearings, elastic skateboard bearings, spherical bridge bearings, high damping spherical bearings, lead rubber bearings, etc.
4. Exquisite packaging and timely delivery. All products are inspected by quality inspection personnel before loading, and then the quality inspection data are archived and retained. Our company also produces isolation products and vibration control products.
5. The professional sales team has a comprehensive understanding of shock absorption and isolation products, good English speaking and writing skills, and excellent communication skills to provide the best solutions to your problems. You can ask them for recommendations, customized services, and any other product information you want to know about.
1. Are you a trading company or manufacturer?
We are manufacturer and have our own factory
2. What certificate do you get?
ISO9001:2015 quality management system certification,
ISO14001:2015 environmental management system certification,
ISO45001:2018 occupational health and safety management system certification
3. What is your MOQ?
1000 Meters
4. What is your delivery time for mass production?
Customized product design time: Based on the performance parameters provided, the detailed design of the product will be completed within 7 working days
Peak season delivery time: 1.5~2 months after confirmation of product processing drawings
Off-season delivery time: Within 25~35 working days after confirmation of product processing drawings
5. Can you do OEM?
We can. OEM orders are welcome.
6. What is your policy sample?
We provide free scale samples, and buyers bear the express delivery costs.
7. How long does it take to prepare samples?
About 7-10 working days.
