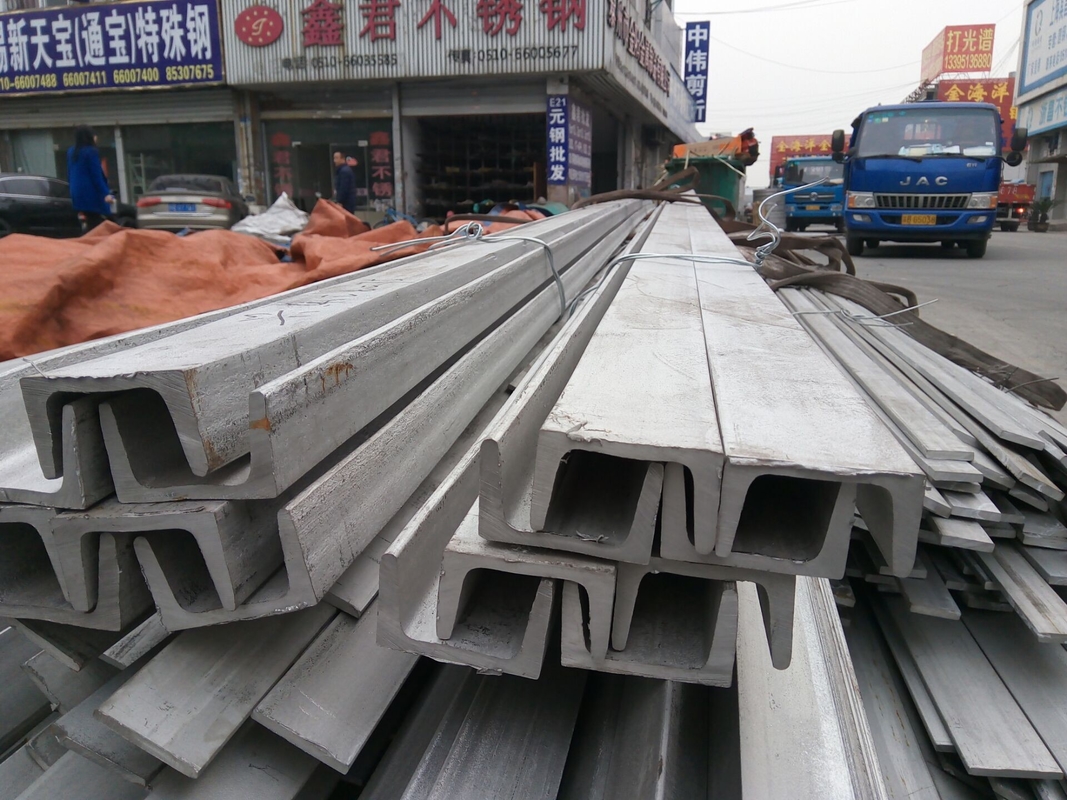

304 Stainless Steel Channel Bar U Channel for Construction HairLine Polished

304 Stainless Steel Channel Bar U Channel for Construction HairLine Polished
304 Stainless Steel Channel Bar U Channel for Construction HairLine Polished

Large Image :  304 Stainless Steel Channel Bar U Channel for Construction HairLine Polished

Product Details:
Place of Origin: Jiangsu,China
Brand Name: Baosteel
Certification: ISO/BV/SGS
Model Number: 201 304 316L 321 310S 2205 904l
Payment & Shipping Terms:
Minimum Order Quantity: 1ton
Price: USD1000-5000 per ton
Packaging Details: Standard seaworthy packaging / as per buyer’s request
Delivery Time: within 10days after received the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 300tons per month

304 Stainless Steel Channel Bar U Channel for Construction HairLine Polished

Description
Standard: AISI, ASTM, DIN, EN, GB, JIS Dimensions: Customized
Grade: 201 304 316L 321 310S 2205 904l Perforated Or Not: Not Perforated
Item: C Steel Channel Type: Equal
High Light:

SS u channel

,

stainless steel c channel



Mirror Polish Stainless Steel Channel Bar C Type for Construction



Specifications:

  • 1). Material: 201, 202, 304, 316, 316L, 310 ect
  • 2). Size: All the dimension are all according to your requirements
  • 3). Useage: Construction, industry
  • 4). Standard: GB/T 1220-2007, GB/T707-1988, ASTM A276, A314, A479, A484, A564, A582, etc.
  • 5). Finish: Pickling, Sand-blasting, hairline, Polish, Mirror Polish, Milling, Smooth-turning, Peeling, etc.
  • 6). Payment term: Pay 30% down payment then the lasted 70%should be pay before delivery
  • 7). Delivery time: About 15 working days or depend on the quantity
  • 8). Packing: Export standard pckage or as your requirements
  • 9). Min. Order: One ton



size of our products



Sizes(mm)
H×B
Thickness (mm)
3 4 5 6 7 8 9 10 12
40×20 1.79
50×25 2.27
60×30 2.74 3.56 4.37 5.12
70×35 3.23 4.21 5.17 6.08
80×40 3.71 4.84 5.96 7.03
90×45 4.25 5.55 6.83 8.05
100×50 4.73 6.18 7.62 8.98 10.3 11.7 13.0 41.2
120×60     9.20 10.9 12.6 14.2
130×65     10.1 11.9 13.8 15.5 17.3 19.1
140×70       12.9 14.9



16.8
18.8 20.7
150×75       13.9 16.0 18.1 20.2 22.2 26.3
160×80       14.8 17.1 19.3 21.6 23.8 28.1
180×90       16.7 19.4 22.0 24.5 27.0 32.0
200×100       18.6 21.6 24.5 27.4 30.2
35.8





Chemical composition chart

GRADE

AISI

C

(MAX)

Mn

(MAX)

P

(MAX)

S

(MAX)

Si

(MAX)

Cr Ni Mo
301 0.15 2.0 0.045 0.040 1.0 16-18 6--8 ---
303 0.15 2.0 0.045 ----- 1.0 17-19 8 -10 ---
304 0.08 2.0 0.045 0.030 1.0 18-20 8 -10 ---
304 L 0.030 2.0 0.045 0.030 1.0 18-20 8 -10 ---
316 0.08 2.0 0.045 0.030 1.0 16-18 10 -14 2-3
316L 0.030 2.0 0.045 0.030 1.0 16-18 10 -14 2-3
410 0.15 1.0 0.040 0.030 1.0 11.5-13.5 0.60 ---
430 0.12 1.0 0.04 0.03 1.00 16-18 ---- --
310 0.25 2.0 0.045 0.030 1.50 24-26

19

22


310S 0.08 2.0 0.045 0.030 1.50 24-26

19

22







Applications:

Our products is widely used in hotels, airport lounges, car transport station, station, playground ,Shopping malls, factories, office buildings, old building renovation, interior decoration of the building, roof and other places set.
We can supply you the samples according to your requirements,all the designs and sizes can be customized and we have quality guarantee with our best after- sales services.



Advantage of Stainless Steel Channel Bar:


1. High quality.
2. Reasonable price.
3. Convenient in construction and save much time and labor.
4. light, good quality and reasonable price.
5. length of the product can be manufactured according to customer’s requirements.
6. High mechanical strength, back to back C channel, increase the intensity.





Why choose us :



1. Competitive price and quality from our own factory

2. Approved by ISO9001, CE, SGS every year
3. Best service with 24 hour`s reply
4. Flexible payment with T/T,L/C , paypal, kunlun bank, western union, etc.
5. Smooth production ability(50000tons/month)
6. Quick delivery and standard exporting package
7. OEM/ODM
