Product Details:
|
Product: | ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar For Machines | Shape: | Round |
---|---|---|---|
Surface: | Bright, Peeled, Pickled, Black ,hair Line, Brush, Sand Blast, Etc. | MTC: | Available |
Technique: | Forged/Hot Rolled/Cold Drawn | Certification: | ISO, SGS, BV, AISI, ASTM, EN, DIN, JIS |
Main Market: | Middle East /South Asia/ Europe/South America | Diameter: | 8-400mm |
Highlight: | ss round bars,stainless steel round rod |
ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar for Machines
Specifications
1) 17-7 PH stainless steel bar
2) Dia.: 1/4''~16''
3) Standard: ASTM A564
4) Solution + H1150
5) Pass BV audit
1. Product: | ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar for Machines |
2. Steel type: | * American name: AISI 631, also known as 17-7PH |
* Chinese name: 00Cr17Ni4Cu4Nb | |
3. Standard: | ASTM A564 |
4. Diameter: | From Ø1/4'' to Ø16'' ( Diameter: 6mm~400mm ) |
Such as Ø1'', Ø2'', Ø2.5'', Ø3'', Ø3.5'', Ø4'', Ø4.5'', Ø4.5'', Ø5'',Ø6'', Ø7'', Ø8'' | |
5. Length: | 1~ 8meters |
6. Surface: | Bright |
7. Diameter tolerance: | H9, H11, H13, K9, K11, K13 etc…as per clients' request etc |
8. Length tolerance: | 0/+50mm |
9. Finishing: | Solution treated + age hardening heat treated ( H900, H1100, H1150 etc ) |
10. Feature of 631: | High Tensile strength, high hardness after heat treated. |
11. Mechanical property: | T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5):17.1%, Z:60.3%, Hardness(HRC): 34.5 |
12. Application: | * Shipbuilding industry, marine shaft, propeller shaft, rudder shaft, boat shaft, vessel shaft, |
* pump shaft, machine-made industry, valve parts, paper mill equipment. | |
13. Delivery time | Generally within 25 days, as per the q'ty. |
14. Certificate: | ISO, BV, TUV, SGS, mill test certificate |

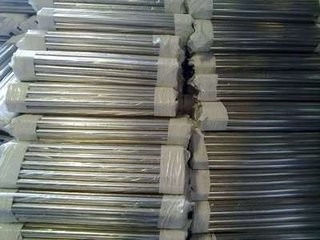

15. Package: | Good quality & fumigated wooden box, can better protect the bars. ( See pictures below ) |
We also supply :
# stainless steel sheet /plate
# Stainless steel coil
# Stainless steel pipe/tube
# Stainless steel bar/rod
# Stainless steel square/angle bar
# Galvanized steel sheet/plate
# Galvanized steel coil
# Galvanized steel pipe/tube
Material/Grade : 304 321 316 316L 310S 309S 202 201 430 409L 444 410s 904L 2205 2507 Incoloy 800 800H 800HT 825 Inconel 600 625 718 Monel 400 Hastelloy C-276.etc
Company Information --- The Reason Why You Will Choose Us
Our Service
1 | Free samples will be available for most of the products |
2 | 24 hours online to ensure your inquiry will be replied within 12 hours |
3 | Most products can be delivered within 7 days after order |
4 | Small trial order can also be accepted |
5 | Customized Size & Surface Treatment as your requirement |
6 | Quality Inspection---We can provide MTC , PMI inspection , and SGS inspection or other third Party Inspection . |
7 | If you are not sure about what exactly you need - feel free to contact us anytime and get professional assistance from us |
