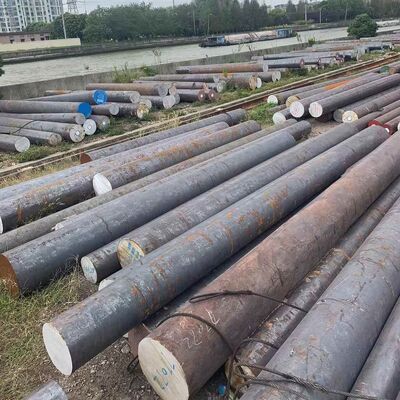

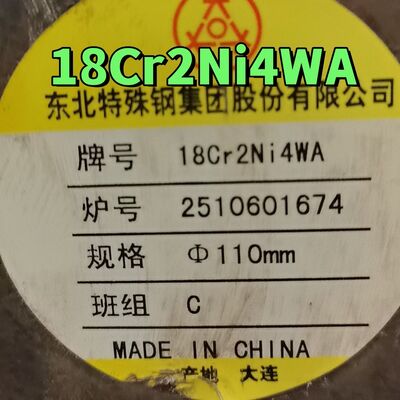

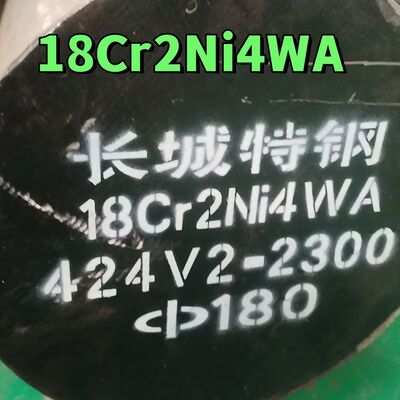

18Cr2Ni4WA Alloy Steel Round Bar 180mm OD Forged High Strength Carburizing Steel for Heavy Duty Gears

18Cr2Ni4WA Alloy Steel Round Bar 180mm OD Forged High Strength Carburizing Steel for Heavy Duty Gears
18Cr2Ni4WA Alloy Steel Round Bar 180mm OD Forged High Strength Carburizing Steel for Heavy Duty Gears 18Cr2Ni4WA Alloy Steel Round Bar 180mm OD Forged High Strength Carburizing Steel for Heavy Duty Gears 18Cr2Ni4WA Alloy Steel Round Bar 180mm OD Forged High Strength Carburizing Steel for Heavy Duty Gears

Large Image :  18Cr2Ni4WA Alloy Steel Round Bar 180mm OD Forged High Strength Carburizing Steel for Heavy Duty Gears

Product Details:
Place of Origin: Jiangsu, China
Brand Name: GMS
Certification: ISO 9001, SGS
Model Number: 18Cr2Ni4WA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: USD 1200-1800 / Ton
Packaging Details: Standard export seaworthy packing or as required
Delivery Time: 7-15 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 5000 Tons per Month
Contact Now

18Cr2Ni4WA Alloy Steel Round Bar 180mm OD Forged High Strength Carburizing Steel for Heavy Duty Gears

Description
Grade: 18Cr2Ni4WA / 18Cr2Ni4W Diameter: 180mm
Length: 3000-6000mm Surface: Black / Turned / Polished
Standard: GB/T 3077 Technique: Forged / Hot Rolled
Highlight:

High Strength Carburizing Alloy Steel

,

Forged Round Bar 180mm Diameter

,

Heavy Duty Gear Shaft Material

18Cr2Ni4WA Alloy Steel Round Bar 180mm OD

18Cr2Ni4WA (18Cr2Ni4W) is a high-strength, high-toughness carburizing alloy structural steel manufactured to GB/T 3077. After carburizing and quenching-tempering, it delivers excellent core strength, surface hardness and fatigue resistance, making it an ideal material for heavy-duty gears, shafts and high-load transmission components.

Specifications

Grade18Cr2Ni4WA / 18Cr2Ni4W
StandardGB/T 3077
Diameter180mm (other sizes available)
Length3000-6000mm or as required
TechniqueForged / Hot Rolled
SurfaceBlack / Turned / Polished

Chemical Composition (%)

C0.13-0.19
Si0.17-0.37
Mn0.30-0.60
Cr1.35-1.65
Ni4.00-4.50
W0.80-1.20
S0.025 max
P0.025 max

Mechanical Properties (Quenched & Tempered)

Tensile Strength1180 MPa min
Yield Strength835 MPa min
Elongation10% min
Impact Energy78 J min

Applications

18Cr2Ni4WA round bar is widely used for heavy-duty gears, shafts, crankshafts, connecting rods, aircraft engine parts and high-load transmission components in machinery, automotive, mining and aerospace industries.

Company Advantages

  • 20+ years experience in special steel field
  • Mill test certificate and third-party inspection available
  • Fast delivery and competitive pricing
  • Custom sizes and heat treatment available

Tag:

forged steel round bar,

bright steel round bar,

carbon steel round bars
