Product Details:
|
| Product Name: | C276 Round Bar | Alloy Or Not: | Alloy |
|---|---|---|---|
| Surface Treatment: | Polished | Tolerance: | 0/+1mm |
| Length: | 2000-6000mm | Technology: | Clod Drawn |
| Highlight: | Hastelloy C-276 polished bar,UNS N10276 alloy bar,W.Nr 2.4819 Hastelloy bar |
||

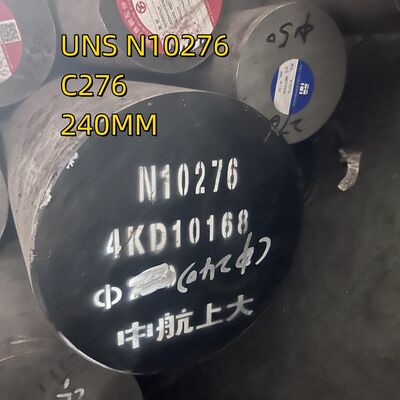

UNS N10276 W.Nr 2.4819 Hastelloy C-276 Polished Bar
Specification of our hastelloy C276 round bar
|
Products Name |
Hastelloy C276 round bar |
|
Finishing |
Hot rolled / Cold Drawn |
|
Diameter |
hot rolled bars: 10 - 250mm |
|
cold drawn bars: 4 - 60mm |
|
|
Length |
6m or cutting any length as request |
|
Standard |
ASTM EN |
|
MOQ |
100 kgs |
|
Packing |
surround by waterproof paper and plastic foil |
|
Loading Port |
Shanghai Port(China) |
|
Certificate |
EN 10204-3.1 / CO or other certificate as request |
| Other Grade |
Stainless steel: 201 303 304 310S 316L 321 2205 2507 410 420.etc Monel: 400 500 Inconel 600 625 800 825.etc |
Hastelloy C276 - UNS N10276 Advanced Nickel Alloy
Overview
HASTELLOY C276 is a Nickel-chromium-molybdenum wrought alloy that is considered the most versatile corrosion resistant alloy available. This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in an as welded condition. Alloy C-276 also has excellent resistance to pitting, stress-corrosion cracking and oxidizing atmospheres up to 1900°F. Alloy C-276 has exceptional resistance to a wide variety of chemical environments.
Characteristics of Hastelloy C276
Applications of hastelloy C276
Some typical applications of HASTELLOY C276 include equipment components in chemical and petrochemical organic chloride processes and processes utilizing halide or acid catalysts. Other industry applications are pulp and paper (digesters and bleach areas), scrubbers and ducting for flue gas desulfurization, pharmaceutical and food processing equipment.
HASTELLOY C-276 is a nickel-chromium-molybdenum alloy with universal corrosion resistance unmatched by any other alloy. It has outstanding resistance to a wide variety of chemical process environments including ferric and cupric chlorides, hot contaminated mineral acids, solvents, chlorine and chlorine contaminated (both organic and inorganic), dry chlorine, formic and acetic acids, acetic anhydride, sea water and brine solutions and hypochlorite and chlorine dioxide solutions. Alloy C276 also resists formation of grain boundary precipitates in the weld heat affected zone making it useful for most chemical processes in the as-welded condition. It has excellent resistance to pitting and stress corrosion cracking.
HASTELLOY C276 sheet 0.044" thick in the heat-treated condition at 2050°F, rapid quenched, has an average olsen cup depth of 0.48". Alloy C-276 can be successfully fabricated by many methods. The alloy tends to work harden but with the proper care, the alloy is readily hot and cold formed. Complete information on welding, machining and forming is available
Chemical Requirements
|
|
Ni |
Cr |
Mn |
Mo |
C |
Si |
Fe |
|---|---|---|---|---|---|---|---|
| Max % | Bal. | 16.5 | 1.0 | 17.0 | 0.010 | 0.08 | 7.0 |
| Min % | 14.5 | 15.0 | 4.0 |
Mechanical Property Requirements
| Ultimate Tensile | Yield Strength (0.2% OS) | Elong. in 2 in. (50.8mm) or 4D min,% | R/A | Hardness | |
| Min | 100 KSi | 41 KSi | 40 | ||
| Max | |||||
| Min (Metric) | 690 MPa | 283 MPa | |||
| Max |
Specifications |
|
|---|---|
| Form | Standard |
|
UNS |
UNS N10276 |
|
Bar |
ASTM B574 Din 17752 |
|
Wire |
|
|
Sheet |
ASTM B575 Din 17750 |
|
Plate |
ASTM B575 Din 17750 |
|
Fitting |
ASTM B366 |
|
Forging |
ASTM B564 |
|
Tube |
ASTM B619 ASTM B622 ASTM B626 Din 17751 |
|
Pipe |
ASTM B619 ASTM B622 ASTM B626 Din 17751 |
|
Weld Wire |
A5.14 ERNiCrMo-4 |
|
Weld Electrode |
A5.11 ENiCrMo-4 |
|
Din. |
2.4819 All Forms |

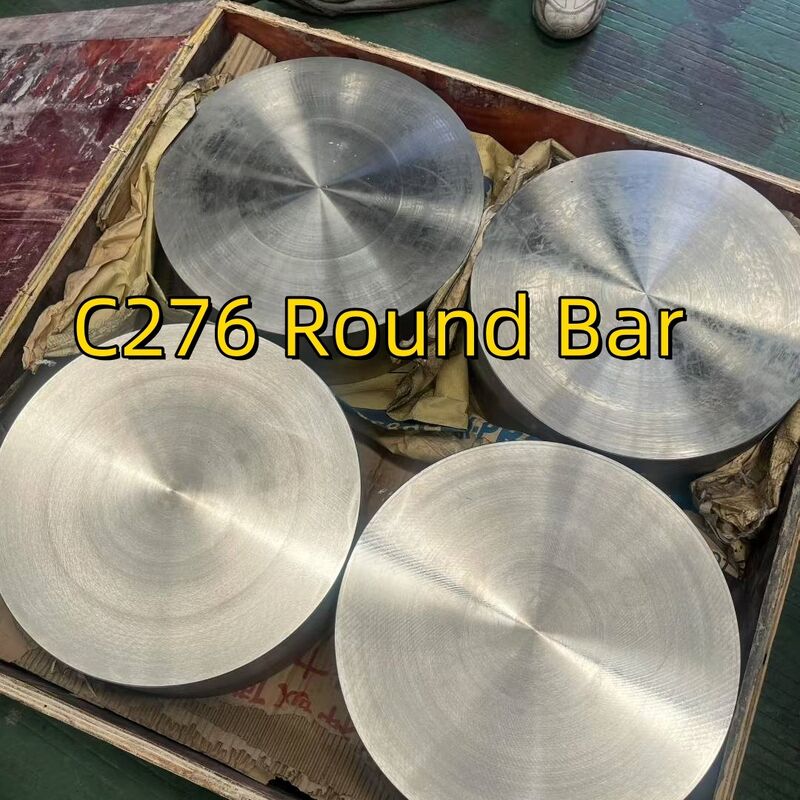

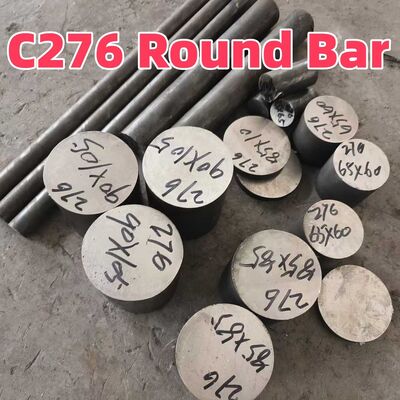

Products Show
![]()
![]()
![]()
Hastelloy is a high-performance corrosion-resistant alloy widely used in industries such as chemical processing, aerospace, marine, and energy, especially in extreme temperature and corrosive environments. Its main components include nickel, molybdenum, chromium, and other metal elements.
We sell a variety of Hastelloy alloys, including but not limited to:
When selecting Hastelloy materials, consider the following factors:
If you're unsure about which alloy to choose, our technical support team can assist you with professional recommendations based on your requirements.
We offer a wide range of Hastelloy products, including plates, pipes, bars, wires, and customized products. Specifications include various thicknesses, diameters, lengths, etc., to meet diverse customer needs.
For standard stock items, the delivery time is typically 3-7 working days. For customized or specially processed products, delivery time may vary and is generally 2-4 weeks. Specific delivery times can be confirmed based on order quantities and production schedules.
All of our Hastelloy products are sourced from reliable manufacturers and strictly adhere to international quality standards. Each batch of materials comes with detailed quality inspection reports and material certificates to ensure that the products meet performance and quality standards.
Yes, we provide free technical support services. Our engineering team can assist with material selection, processing techniques, performance testing, and more. Whether it's product selection or engineering design, we can provide professional consulting services.
You can request a quote through the following methods:
Yes, we offer worldwide shipping. Our experienced logistics team can assist with various international shipping issues, including transportation options, customs handling, and destination requirements.
We accept various payment methods, including bank transfers, credit card payments, PayPal, and more. The specific payment method can be confirmed based on the order amount and customer preferences.
Due to the customized or specialty nature of Hastelloy materials, our return and exchange policy is strict. Standard stock products can be returned or exchanged if they are unused and unprocessed. Please confirm the return/exchange conditions and process with our sales team before placing an order.
We can provide the following certifications and documents:
Yes, we provide customized processing services for Hastelloy alloys, including cutting, welding, precision machining, and more. Whether it's standard dimensions or special requirements, we can process the materials to meet your needs.
