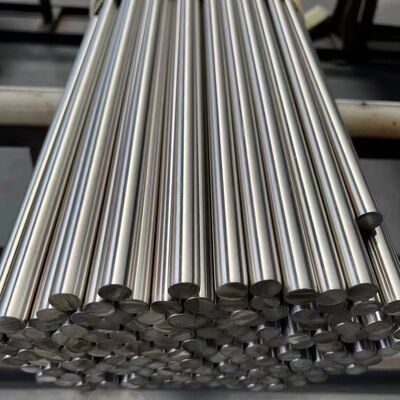

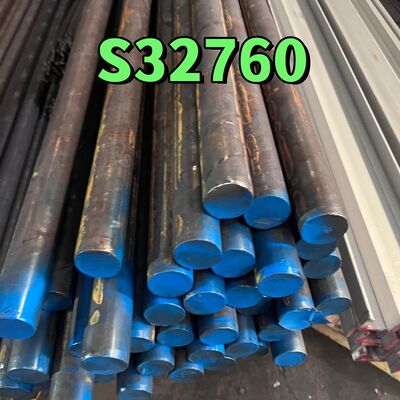

UNS S32760 EN 1.4501 F55 Super Duplex Stainless Steel Round Bar 20-300mm Peeled Surface
Standard: ASTM, AISI, DIN, EN, GB, JIS
Dimensions: 6- - -400mm
Grade: ZERON 100 (UNS S32760)
Place of Origin: American Samoa
Model Number: Super Duplex Stainless
Type: Round
Application: Oil and natural gas chemical treatment, Medicalequipment, Food industry, Construction material
Shape: Round
Certification: SGS BV
Special Use: Valve Steels, High-strength Steel Plate
Surface: 2B/NO.4/HL/NO.1/BA
Note: We can also do other materials
technique: hot rolled,cold rolled
Delivery Time: short
Payment Terms: L/C ,T/T , western union , paypal , alipay
Export standard package: bundled wooden box or be required
Shipping: DHL , UPS , FEDEX , TNT , EMS , by air , by sea , China post
Name: Super Duplex Stainless
Packaging & Delivery
Packaging Details:Delivery Detail:
Export standard package :bundled wooden box or be required
For:Super Duplex Stainless |
| 15--30 DAYS |
Super Duplex Stainless
Product Description
Super Duplex Stainless Steels
ZERON® 100
A highly alloyed super duplex stainless steel for use in seawater desalination and many aggressive environments. Minimum PREN of 40. CrNiMoCuWCNMnSiPSFe
|
| MIN | 24.0 | 6.0 | 3.0 | 0.5 | 0.5 | -- | 0.2 | -- | -- | -- | -- | -- |
| MAX | 26.0 | 8.0 | 4.0 | 1.0 | 1.0 | 0.03 | 0.3 | 1.0 | 1.0 | 0.030 | 0.010 | Balance |
PREN = %Cr + 3.3x%Mo + 16x%N ZERON 100 PREN > 40
For standards ISO 15156/NACE MR0175 and BS 4515-2 a different PREN formula including tungsten is used. Using the formula PREN = %Cr 3.3(%Mo + 0.5x%W) + 16x%N, ZERON 100 has a PREN > 41
ZERON® 100 FG
Strain hardened version of ZERON 100 in round bar for high strength marine fastener applications. NiCrMoMnCuSiCNSPWFe
|
| MIN | 6.0 | 24.0 | 3.0 | -- | 0.5 | -- | -- | 0.2 | -- | -- | 0.5 | -- |
| MAX | 8.0 | 26.0 | 4.0 | 1.0 | 1.0 | 1.0 | 0.03 | 0.3 | 0.01 | 0.03 | 1.0 | Balance |
Both ZERON 100 and ZERON 100 FG meet the chemistry requirements of UNS S32760 and are made to a minimum PREn (pitting resistance equivalent) of 40 and are suitable for seawater service.
Both ZERON 100 and ZERON 100 FG meet the chemistry requirements of UNS S32760 and are made to a minimum PREn (pitting resistance equivalent) of 40 and are suitable for seawater service.
Specifications
ASME SA 479 ASTM A 276 Condition S, ASTM A 479 BS EN 10088-3 EN X2CrNiMoCuWN 25-7-4 NACE MR0175 UNS S32760 Werkstoff 1.4501
Inventory
ZERON® 100 FG Round Bar
Common Trade Names
Super Duplex Stainless
Mechanical Properties
ASTM SpecificationConditionZERON 100 GradeTensile Strength, ksi0.2% Offset Yield StrengthElongation in 2in, %Reduction of Area, %Hardness Brinell (Max)
|
| A276/A479 | A | -- | 109 | 80 | 25 | -- | 290 |
| A276 | S | FG | 125 | 105 | 16 | -- | 335 |
| A193 | Grade B7 | FG* | 125 | 105 | 16 | 50 | 321 |
*A193 is shown for reference only. ZERON 100FG is not listed in this specification, but does have identical mechanical properties as Grade B7
Packaging & Shipping
Packing details |
800 Ton/Tons per Day
Export standard package :bundled wooden box or be required
Port:shanghai |
Delivery Time | 10-20 working days |
| Payment Terms | L/C ,T/T , western union , paypal , alipay |
| Shipping |
DHL , UPS , FEDEX , TNT , EMS , by air , by sea , China post , any way you think is suitable |
Q1: Why choose us?
A: Our company, as an internationally experienced and professional supplier, has been engaged in steel business for more than ten years. We can provide a variety of steel products with high quality to our clients.
Q2: Can you provide OEM/ODM service?
A: Yes. Please feel free to contact us for more details.
Q3:What is your terms of payment?
A: 100% T/T advance.
30% T/T and balance against copy of documents.
30% T/T advance, balance L/C at sight.
Q4: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Q5: Can you provide sample?
A: Yes. Sample is free for regular sizes, but the buyer needs to pay freight cost.
Q6: How long is your delivery time?
A: Regular lead time is 15 to 30 days after receiving deposit.
