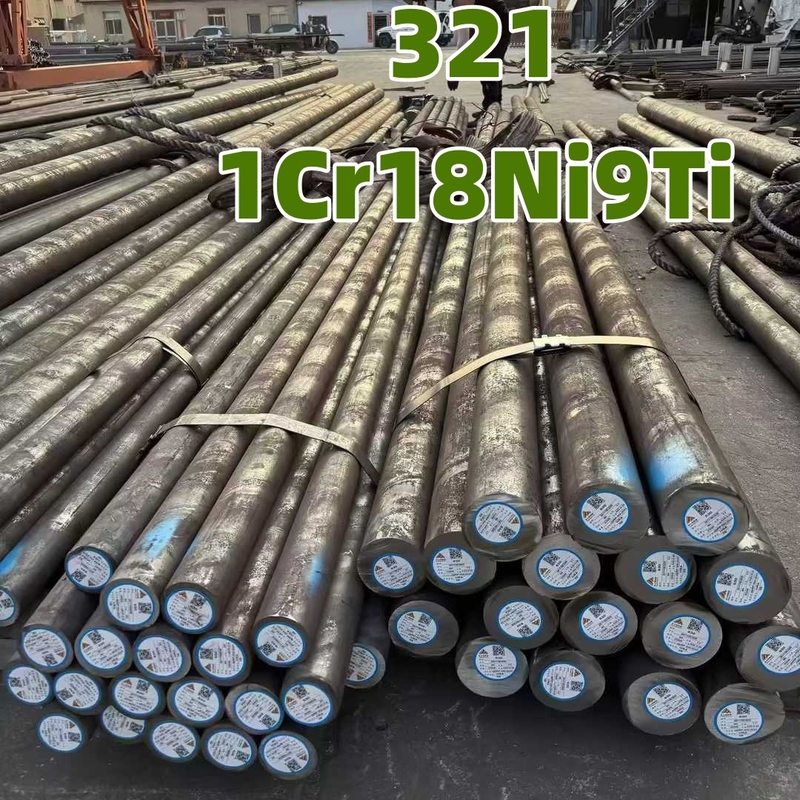

ASTM A276 Round SS 321 DIN1.4541 Stainless Steel Round Bar OD110MM Heat Resistance
Stainless steel round bars are corrosion-resistant and rust-free, which makes them suitable for use in huge factories dealing with chemicals. Besides being resistant to heat and fire, stainless steel does not corrode, as it does not react to chemicals. The most common shapes are round bar (also called rod), rectangular bar (including square bar, the special case of equal sides), and hexagonal bar (usually called hex bar for short).
| Standard |
ASTM A479,ASTM A276,ASTM A484, ASTM A582,
ASME SA276, ASME SA484, GB/T1220, GB4226, etc.
|
| Material |
301, 304, 304L, 309S, 321, 316, 316L, 317, 317L, 310S, 201,202
321, 329, 347, 347H 201, 202, 410, 420, 430, S20100, S20200, S30100, S30400, S30403, S30908, S31008, S31600, S31635, etc.
|
| Specifications |
Round bar |
Diameter:0.1~500mm |
| Hexagonal bar |
Size: 2mm~100mm |
| Flat bar |
Thickness |
0.3~200mm |
| Width |
1~2500mm |
| Square bar |
Size: 1mm*1mm~800mm*800mm |
| Length |
2m, 5.8m, 6m, or as required. |
| Surface |
Black, peeled, polishing, bright, sand blast, hair line, etc. |
| Price Term |
Ex-work, FOB, CFR, CIF, etc. |
| Export to |
Singapore, Canada, Indonesia, Korea, UK, Thailand, Peru, Saudi Arabia,
Viet Nam, Ukraine, Brazil, South Africa, etc.
|
| Delivery Time |
Standard size is in stock,prompt delivery or as order's quantity. |
| Package |
Export standard package, bundled or be required.
The inner size of container is below:
20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high)about 24-26CBM
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM
|
1.Are You Manufacture or Trade Company
We are a company integrating industry and trade, with more than ten years of experience experience for supply Metal material and products in domestic.
2.Can you supply what is the service?
We can supply the kinds of metal materials and products,and we also can supply other process services.
3.Can you supply the free sample?
We can supply the free sample,but the sample express freight should be by you.
4.What about your the fast lead time if we place order?
It is normal 7-10 days after receive your deposit.
5.Which payment terms can you accept?
We can accept the TT, Western Union now or Negotiation.
Global Specifications & Approvals
| Region |
Standard |
Grade Code |
| USA |
ASTM A276 |
UNS S32100 |
| Europe |
EN 1.4541 |
X6CrNiTi18-10 |
| China |
GB/T 1220 |
06Cr18Ni11Ti |
| Japan |
JIS SUS 321 |
- |
| International |
ISO 15510 |
X7CrNiTi18-10 |
Material Science Breakdown
| Element |
Content |
Functional Role |
| Titanium (Ti) |
≥5×C% (min.) |
Prevents chromium carbide formation during welding/heat exposure |
| Chromium (Cr) |
17.0–19.0% |
Forms heat-resistant chromium oxide layer |
| Nickel (Ni) |
9.0–12.0% |
Stabilizes structure under cyclic thermal loads |
| Carbon (C) |
≤0.08% |
Controlled for weld integrity |
| Iron (Fe) |
Balance |
Matrix foundation |
Performance Mastery
Mechanical Properties
Tensile Strength: 515–720 MPa (solution-annealed)
Creep Resistance: 120 MPa at 600°C (1.000-hour rupture)
Thermal Cycling Tolerance: 200+ cycles (ambient to 800°C)
Hardness: 70–90 HRB (annealed), customizable via cold drawing
Physical Attributes
Max Service Temp: 900°C (intermittent), 700°C (continuous)
Thermal Expansion: 17.3 μm/m·K (20–100°C)
Oxidation Threshold: Up to 925°C in dry air
Magnetic Response: Non-magnetic post-annealing
5 Industrial Breakthroughs
Heat War Veteran:
Outperforms 304/316 in cyclic heating (e.g., kiln fixtures, jet engine mounts).
Weld Zone Guardian:
Titanium neutralizes carbon, eliminating post-weld decay risks.
Corrosion Arsenal:
Resists sulfuric/nitric acids, steam, and thermal oxidation scaling.
Fatigue Resistance:
30% higher stress-cycle endurance vs. non-stabilized grades.
Sustainability Plus:
85% recycled content; RoHS/REACH compliant.
Mission-Critical Applications
| Industry |
Transformative Uses |
| Aerospace |
Combustion chamber liners, turbine shafts |
| Automotive |
High-temp exhaust manifolds, EGR components |
| Chemical |
Catalyst grids, pyrolysis tubes |
| Power Generation |
Boiler tubes, superheater supports |
| Additive Manufacturing |
High-purity powder feedstock for 3D printing |
FAQ
1. How can I get a quotation from you?
You can leave us a message, and we will reply to every message in time. Or we may talk online by Trademanager.
And you can also find our contact information on the contact page.
2.Can I get samples before order?
Yes, of course. Usually, our samples are free. we can produce your samples or technical drawings, all you need to pay is the shipping cost to you. We can build moulds and fixtures so we can customize our products based on your demand.
3. what is your delivery time?
It mainly depends on your location and demanded volume. The time of delivery is usually around 1 month(1*40FT as usual).
We can send it out in 2 days if it has stock.
4.What is your payment terms?
Our usual payment term is 30% deposit and the rest against B/L. L/C is also acceptable. And the shipping terms are EXW, FOB, CFR, CIF and DDU. Whichever you like.
5. How can you guarantee the quality of my goods?
We are a factory with 100% pre-delivery inspection which guarantee the quality.
6 How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer and we sincerely do business with them, sustain our service level before and after every deal.
