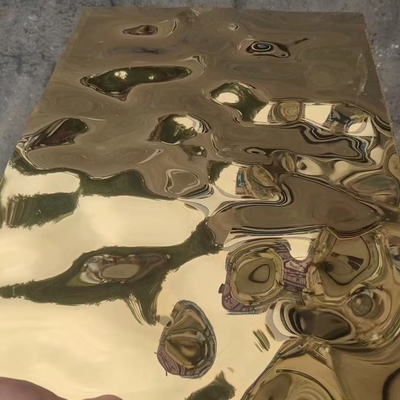

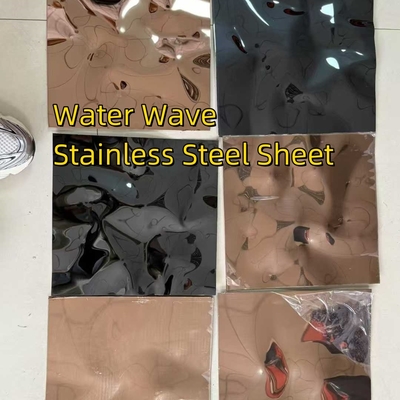

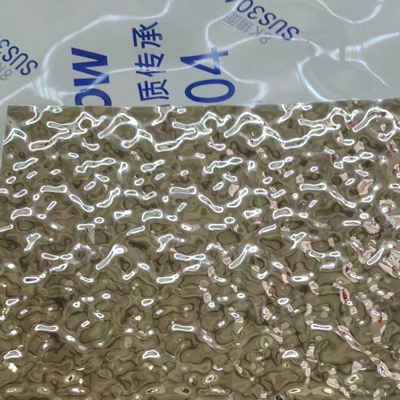

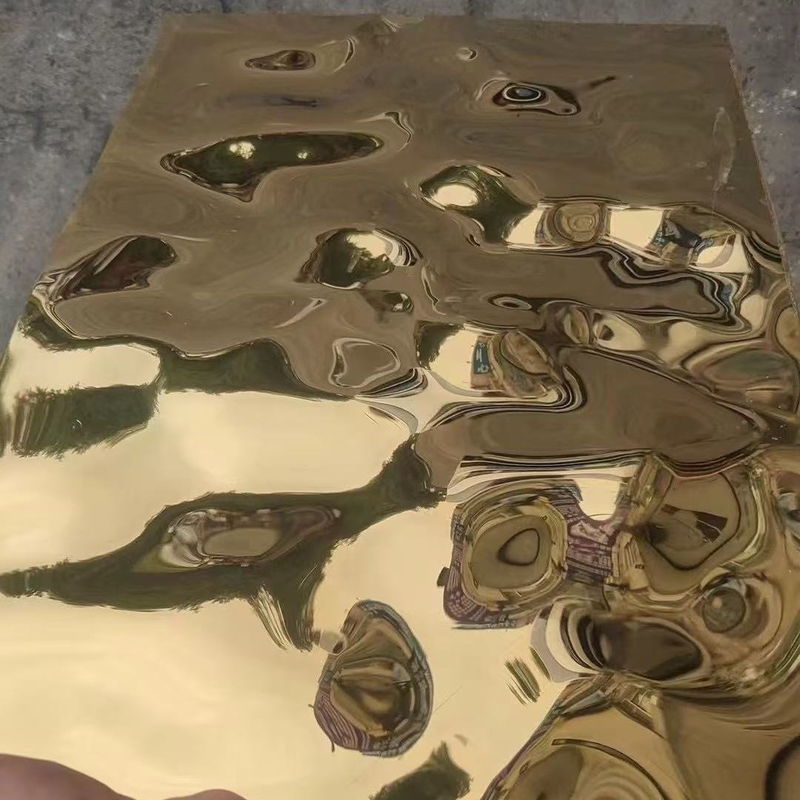

The thickness of the water corrugated stainless steel plate is generally between 0.5mm-3mm, and it is usually divided into three categories: large water ripples, small water ripples, and water scales. There are also many materials, and the more common ones are 304 stainless steel and 201 stainless steel.
The concave-convex feeling of the stainless steel water corrugated plate creates an unparalleled three-dimensional effect, and the visual effect is obvious. Its surface can also be customized with various patterns: millet grain, pearl rice, pearl board, refined corrugated board, small checkered pattern, rhombus checkered pattern, antique checkered pattern, leather pattern, woven pattern, twill pattern, chrysanthemum pattern, ice bamboo pattern , sanding board, cube, free pattern, stone pattern board, butterfly love flower, weaving bamboo pattern, small diamond, large oval, panda pattern, European pattern, ingot, linen pattern, big water drop, mosaic, wood grain, swastika flower, Wanfu Linmen, wishful clouds, square pattern, colorful pattern, colorful circle pattern, fish scale pattern, fine mesh pattern, heart pattern, etc.
| Type |
Water ripple stainless steel sheets |
| Thickness |
0.3 mm - 3.0 mm |
| Size |
1000*2000mm, 1219*2438mm, 1219*3048mm, customized Max.width 1500mm |
| SS Grade |
304,316, 201,430 etc. |
| Finish |
stamped finish |
| Available finishes |
No.4, Hairline, Mirror, Etching, PVD Color, Embossed, Vibration, Sandblast, Combination, lamination etc. |
| Origin |
POSCO,JISCO,TISCO,LISCO,BAOSTEEL etc. |
| Packing way |
PVC+ waterproof paper + strong sea-worthy wooden package |
| Chemical composition |
| Grade |
STS304 |
STS 316 |
STS430 |
STS201 |
| Elong(10%) |
Above 40 |
30MIN |
Above 22 |
50-60 |
| Hardness |
≤200HV |
≤200HV |
Below 200 |
HRB100,HV 230 |
| Cr(%) |
18-20 |
16-18 |
16-18 |
16-18 |
| Ni(%) |
8-10 |
10-14 |
≤0.60% |
0.5-1.5 |
| C(%) |
≤0.08 |
≤0.07 |
≤0.12% |
≤0.15 |
Stamped Stainless Steel Sheet
Our common stainless steel surface treatment processes include: wire drawing, mirror surface, sandblasting, titanium plating, etching, anti-fingerprints, etc., which are widely used in interior decoration and often surprises. The water-corrugated stainless steel embossed plate is an embossed pattern on the surface of the steel plate, showing a different effect from the above process, and it is becoming more and more popular. Let's take a look at the application of corrugated board in practice.
Stamped stainless steel sheets are avialbale in various paterns. It has good strength, weldability, and corrosion resistance. Most of the products are colored. They're widely used in decorative purpose, decorate doors, interiror walls, lobbies, elevators.
Application
- Be extensively applied to architectural decoration, such as elevator decoration, luxurious doors, outdoor projects, wall decoration, advertisement nameplates, sanitary ware, ceiling, corridor, hotel hall, shop facade, etc.
- For furniture, kitchenware, food industry, electronic industry, medical equipment, etc.
