Product Details:
|
Steel Grade: | Alloy Steel | Alloy Or Not: | Is Alloy |
---|---|---|---|
Technique: | Hot Rolled,Cold Drawn | Type: | Alloy Steel Bar |
Standard: | ASTM,DIN | Shape: | Round |

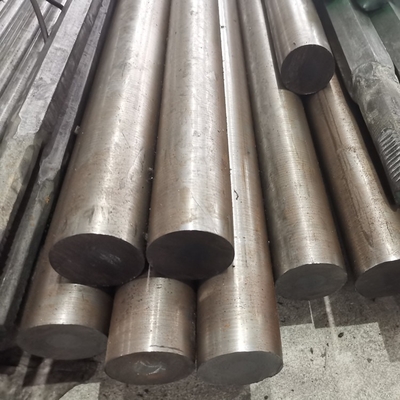

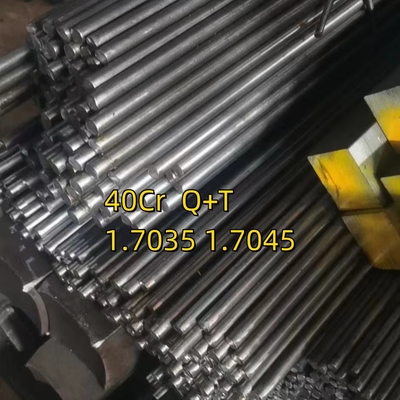

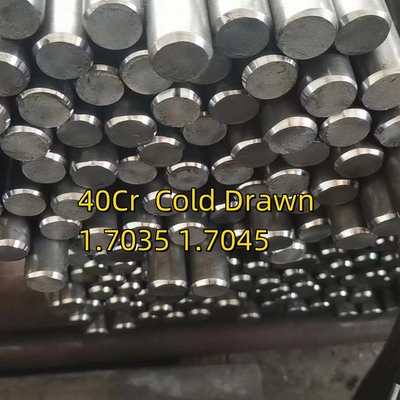

Product Name: | 40Cr 1.7035/1.7045 Qt Alloy Steel Round Bars | Heat Treatment: | Normalized +Annealed +Quenched + Tempered |
Highlight: | SAE5140 Steel Round Bar,HRC 28-32 Steel Round Bar,Φ18.3x2500mm Steel Round Bar |
General Information | |
Product Name | Grinding Rods |
HS Code | 72283090 |
Size Range | Length: 1000-6000mm, Diameter: 30-200mm |
Specification | 45#, 50Mn, 60Mn, 65Mn, B2, B3, B4, B6, BL, BG |
Surface Hardness | 45-60HRC |
Impact Value | ≥12J/cm2 |
Dropping Test | 10,000-20,000 times |
Packaging | Bundles, Bags, Steel drums, Containers |
Size | |
Diameter (mm) | Length (mm) |
30-200 | 1000-6000 |
Chemical Composition (%) | ||||||
Steel Specification | C | Mn | Si | Cr | S | P |
40Cr | 0.37-0.44 | 0.50-0.80 | 0.17-0.37 | 0.80-1.15 | ≤0.035 | ≤0.035 |
42CrMo | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | 0.90-1.25 | ≤0.035 | ≤0.035 |
60Mn | 0.57-0.65 | 0.70-1.00 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
65Mn | 0.62-0.72 | 0.90-1.20 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
B2 | 0.72-0.85 | 0.70-0.90 | 0.17-0.36 | 0.40-0.60 | ≤0.035 | ≤0.035 |
B3 | 0.52-0.65 | 0.40-1.00 | 1.33-1.85 | 0.78-1.20 | ≤0.030 | ≤0.030 |
BU | 0.95-1.05 | 0.95-1.05 | 0.15-0.35 | 0.45-0.55 | ≤0.035 | ≤0.035 |
BL | 0.55-0.75 | 0.65-0.85 | 0.15-0.35 | 0.70-1.20 | ≤0.035 | ≤0.035 |
BG | 0.90-1.05 | 0.35-0.95 | 0.15-0.35 | 1.0-1.70 | ≤0.035 | ≤0.035 |
Physical Features | ||||
Steel Specification | Impact Value (J/cm2) | Surface Hardness (HRC) | Diameter (mm) | Length (mm) |
40Cr | ≥12 | 45-60 | 25-140 | 1500-6000 |
42CrMo | ||||
60Mn | ||||
65Mn | ||||
B2 | ||||
B3 | ||||
BU | ||||
BL | ||||
BG |
Q: How about the MOQ? If my first order qty is small, will you accept?
A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company.
Q: What is your payment terms ?
A: Commonly two payment term for new customers: 1) 30% T/T as deposit , 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight;If you need any other terms, pls feel free to contact us too, we will try our best.
Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from new production, delivery 7 days.
Q: How about the samples ? is it free or extra fees?
A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.
Q: How to control and guarantee your shipment quality?
A: 1) All our factories are ISO9001, CE certified facility; 2) World famous origin mills as TISCO, Baosteel. 3) Ex factory inspection by our own laboratory. 4) SGS/BV Third party inspection before delivery.
