Hot Rolled Alloy Material 31CrMoV9 DIN 1.8519 EN 10085-2001 Round Bar Dia 75mm

Large Image : Hot Rolled Alloy Material 31CrMoV9 DIN 1.8519 EN 10085-2001 Round Bar Dia 75mm

Product Details:

Place of Origin:	China
Brand Name:	TSING SHAN
Certification:	ISO SGS MTC
Model Number:	31CrMoV9

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	1.45-1.95 USD/KG
Packaging Details:	Export Packing
Delivery Time:	7 Days
Payment Terms:	L/C, T/T
Supply Ability:	50000KGS

Contact Now

Hot Rolled Alloy Material 31CrMoV9 DIN 1.8519 EN 10085-2001 Round Bar Dia 75mm

Description

Technique:	Hot Rolled	Din Standard:	EN 10084 : 2008
Stock:	Yes	Material:	Steel
Lengh:	1m 2m 3m 4m 6m	Out Diameter:	20 - 750 Mm
Surface:	Black Bright	Specification:	DIA 100-1200
Package:	Export Standard Package/as Request	Surface Finish:	Polished
Dimensions:	5-900MM	Welding:	Conventional Methods
Transmodel No:	31CrMoV9 DIN 1.8519
Highlight:	EN 10085-2001 Round Bar , DIN 1.8519 Round Bar , 31CrMoV9 Round Bar

Hot Rolled Alloy Material 31CrMoV9 DIN 1.8519 EN 10085-2001 Round Bar Diam 75mm

Description
Item	1.8519 alloy steel bar 31CrMoV9 steel bar factory price
Steel grade	31CrMoV9
Standard	EN 10085: 2001
Material	alloy steel
Surface	black or according to customer's request
Type	hot rolled,cold rolled
steel round pipe/tube
Size	Wall thickness	1mm-150mm(SCH10-XXS)
	Outer diameter	6mm-2500mm (3/8"-100")
steel square pipe/tube
Size	Wall thickness	1mm-150mm(SCH10-XXS)
	Outer diameter	4mm4mm-800mm800mm
steel rectangular pipe/tube
Size	Wall thickness	1mm-150mm(SCH10-XXS)
	Outer diameter	6mm-2500mm (3/8"-100")
	Length	4000mm,5800mm,6000mm,12000mm,or as required.
Trade terms	Price terms	FOB,CIF,CFR,CNF,Ex-work
	Payment terms	T/T,L/C,westen union
Delivery time	Prompt delivery or as the order quantity.
Export to	Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA, Brazil,Thailand,Korea,Italy,India,Egypt,Oman,Malaysia,Kuwait,Canada, Viet Nam, Peru,Mexico,Dubai, Russia,etc
Package	Standard export seaworthy package,or as required.
Application	Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. Pipes also can be made according to the customer's required.
Contact	If you have any questions,please feel free to contact me.
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM

Chemical composition % of steel 31CrMoV9 (1.8519): EN 10085-2001

C	Si	Mn	P	S	Cr	Mo	V
0.27 - 0.34	max 0.4	0.4 - 0.7	max 0.025	max 0.035	2.3 - 2.7	0.15 - 0.25	0.1 - 0.2

Mechanical properties of steel 31CrMoV9 (1.8519)

Nominal thickness (mm):	16 - 40	40 - 100	100 - 160	160 - 250
Rm - Tensile strength (MPa) (+QT)	1100-1300	1000-1200	900-1100	850-1050

Nominal thickness(mm):	16 - 40	40 - 100	100 - 160	160 - 250
Rp0.2 0.2% proof strength (MPa) (+QT)	900	800	700	650

KV - Impact energy (J) (+QT)

+20°
25-40

Nominal thickness (mm):	16 - 40	40 - 100	100 - 160	160 - 250
A - Min. elongation at fracture (%) (+QT)	9	10	11	12

Brinell hardness (HB): (+A)

248

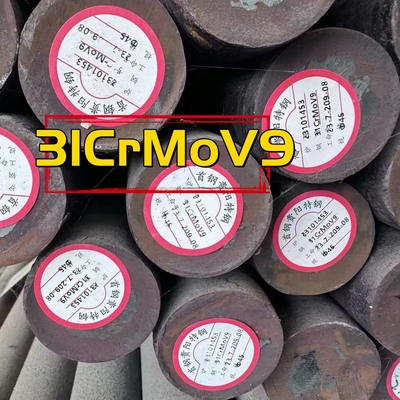

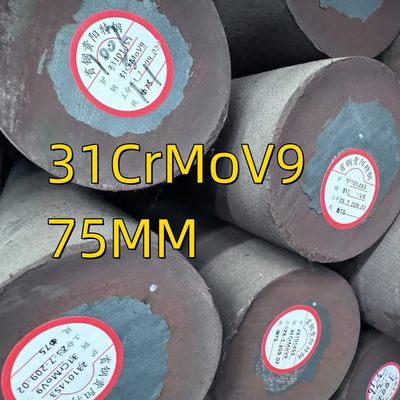

Hot Rolled Alloy Material 31CrMoV9 DIN 1.8519 EN 10085-2001 Round Bar Dia 75mm 0

Hot Rolled Alloy Material 31CrMoV9 DIN 1.8519 EN 10085-2001 Round Bar Dia 75mm 1

F A Q
1. How can I know whether you are a reliable company?
We are engaged in steel for nearly 10 years and have high visibility in domestic. We welcome you to inspect our company at any time.
2. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately.
3. Do you provide samples?
Yes, we can provide most of the product samples. We will charge a little sample fee. But we will return the charge if you place an order. if you asked to use DHL, Blue Dart Express, FedEx, etc. to send samples, you can inform us in advance to prepare.
4. Can I visit your company?
Of course, If you want to order our products and visit our company, please contact us to make an appointment.
