High Strength X120Mn12/Mn12 Mn13 Manganese Wear-Resistant Steel Plate 10mm for Shot Blasting Equipment

Certification
China JIANGSU MITTEL STEEL INDUSTRIAL LIMITED certification
China JIANGSU MITTEL STEEL INDUSTRIAL LIMITED certification
Customer Reviews
this is the second order l buy this company ,quality is very good ,same as europure quality .we will go on ccooperate with this company .

—— Andrew Greg - Turkey

200 ton Stainless steel sheet is arrived on 10th Oct 2014 , the quality is very good.,deliver time is very fast It's very lucky we find this factory

—— Mechile Kilar Chard - Brazial

We Have Cooperate With this Factory Many Years , Everything Goes Very Well.l Like This Factory !

—— Tony Hilton - Poland

This is Our Thrid Time Buy from Mittel,Quality is Very Goods ,We Are Glad to Find This Reliable Factory

—— Natalya Ugay-Russia

Quality is very good and delivery time very fast ,we want to do long terms business with this company

—— Pongpol Pluemsati-Thailand

I'm Online Chat Now

High Strength X120Mn12/Mn12 Mn13 Manganese Wear-Resistant Steel Plate 10mm for Shot Blasting Equipment

High Strength X120Mn12/Mn12  Mn13  Manganese  Wear-Resistant  Steel Plate 10mm  for Shot Blasting Equipment
High Strength X120Mn12/Mn12  Mn13  Manganese  Wear-Resistant  Steel Plate 10mm  for Shot Blasting Equipment High Strength X120Mn12/Mn12  Mn13  Manganese  Wear-Resistant  Steel Plate 10mm  for Shot Blasting Equipment High Strength X120Mn12/Mn12  Mn13  Manganese  Wear-Resistant  Steel Plate 10mm  for Shot Blasting Equipment

Large Image :  High Strength X120Mn12/Mn12 Mn13 Manganese Wear-Resistant Steel Plate 10mm for Shot Blasting Equipment

Product Details:
Place of Origin: China
Brand Name: TSING SHAN
Certification: ISO SGS MTC
Model Number: Mn13
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 2.15-3.05 USD/KG
Packaging Details: Export Packing
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS

High Strength X120Mn12/Mn12 Mn13 Manganese Wear-Resistant Steel Plate 10mm for Shot Blasting Equipment

Description
Length: 2000mm-12000mm Material: Alloy Steel
Payment Term: 30%TT+70%TT / LC Usage: Ship Plate
Diameter: 20mm-300mm Impact Toughness: 50-100 J/cm2
Tensile Strength: 1000-2000 MPa Heat Treatment: Annealing, Quenching, Tempering, Etc.
Hardness: HRC 20-60 Suface Treatment: Black
Materials: Alloy Steel Service: Cutting
Port: Shanghai Packge: Wooden Pallet
Origin Country: Shanghai China
Highlight:

10mm Manganese Wear-Resistant Steel Plate

,

Mn13 Manganese Wear-Resistant Steel Plate

High Strength X120Mn12/Mn12 Mn13 Manganese Wear-Resistant Steel Plate 10mm for Shot Blasting Equipment

Product Name Hot Rolled Mn13 High Manganese Hadfield Wear Resistant Steel Plate
Surface Natural color or customized
Material Din 1.3401, K700, Mn13, X120Mn12 High Manganese steel plate
Grade Mn13, X120Mn12, 1.3401, K700
Brand TISCO, Bao Steel
Technique Hot rolled
Thickness
3mm,4mm,5mm,6mm-110mm
Width*Length
1.5m*6m;1.5m*7.7m;2m*8m;2.2m*12m
Mn13 Steel Features:
High Manganese Steel Plate (Mn13/X120Mn12) is a non-attractive and work solidifying kind of steel which flourishes with serious
wear conditions. The best thing for the plate is: the more effect and pounding it gets, the harder its surface becomes.
High Manganese Steel Plate (Mn13/X120Mn12) rolled plate can reduce the cost of using for quick-wear part of low equipment and save
the overhaul fee of equipment, so it improves the competition.
MOQ 5 metric ton,sample order accepted
Shipment time Within 7-10 workdays after receiving deposit or L/C

High Manganese Wear-resistant Steel

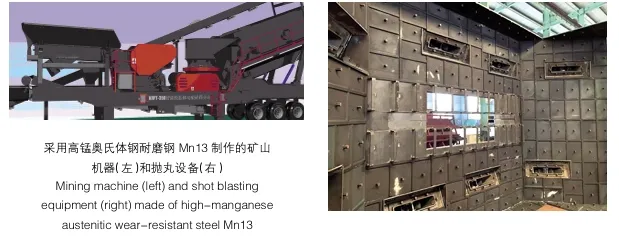

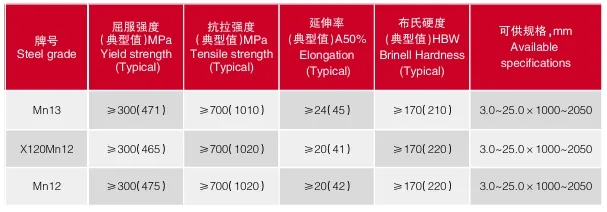

High manganese austenitic steel such as Mn13 and X120Mn12, Mn12 have good toughness and remarkable surface work hardening properties. Under strong impact load or extrusion load, the stressed surface is work hardened, and the surface hardness can be significantly increased from the initial HB200 to over HB750, while the core of steel plate still maintains good impact toughness. It is widely used in mining equipment, machinery manufacturing industry, such as shot blasting equipment, large-scale jaw crusher, etc
High Strength X120Mn12/Mn12  Mn13  Manganese  Wear-Resistant  Steel Plate 10mm  for Shot Blasting Equipment 0High Strength X120Mn12/Mn12  Mn13  Manganese  Wear-Resistant  Steel Plate 10mm  for Shot Blasting Equipment 1
High Manganese Low-temperature Pressure Vessel Steel

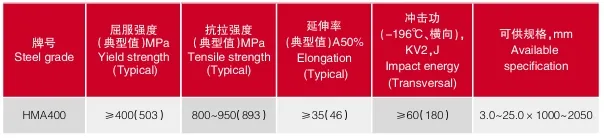

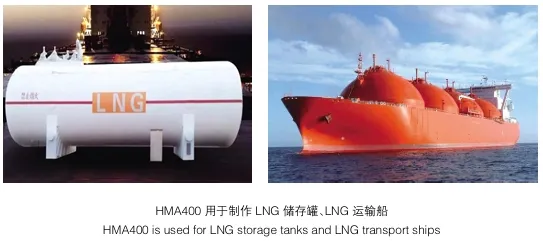

HMA400(Mn24)has good low-temperature resistance and wear resistance, even in the ultra-low tempera ture environment of-196ºC, the product can also maintain stability, which is an ideal material for the manufacture of LNG fuel storage tank. Compared with 9Ni steel, the most common steel for LNG fuel storage tanks, 24% man ganese contained steel has the advantages of abundant production yield and lower cost.
High Strength X120Mn12/Mn12  Mn13  Manganese  Wear-Resistant  Steel Plate 10mm  for Shot Blasting Equipment 2High Strength X120Mn12/Mn12  Mn13  Manganese  Wear-Resistant  Steel Plate 10mm  for Shot Blasting Equipment 3

High Manganese Non-magnetic Steel
20Mn23AlV has extreme low magnetic conductivity, good mechanical properties and processing properties , which can replace low-magnetic austenitic stainless steel used in the manufacture of non-magnetic parts in transformers , generators and special smelting furnaces and other equipment to prevent parts from radiation and ensure safe operation. It can be widely used in: 1. structural parts of magnetic shielding, tensile plate of core limb in oil tank of large and medium-sized transformers; 2. structural parts as stator coil ring, protective ring in large and medium-sized generators; 3. high voltage casing parts and adjacent steel structure parts of high voltage and high current transmission lines.



Product Parameters
Product Name Mn13/X120Mn12/Mn12 high strength manganese steel plate
Packing In standard seaworthy packages for export.
Application Mining equipment, machinery manufacturing industry
Delivery Time Within 7 for inventory products and within 30 days for customized products.
Packaging & Shipping


High Strength X120Mn12/Mn12  Mn13  Manganese  Wear-Resistant  Steel Plate 10mm  for Shot Blasting Equipment 4High Strength X120Mn12/Mn12  Mn13  Manganese  Wear-Resistant  Steel Plate 10mm  for Shot Blasting Equipment 5
FAQ
Q1. Can I get your free samples?
Sure. We will offer samples free of charge, and customers will burden the freight charge.

Q2. Do you have your own factory?
Yes. Our factory is located in Loudi city, Hunan province.

Q3. What is your payment terms?
We accept TT or LC as the paymen terms.

Q4. What is your delivery time?
For products in stock, the delivery time is within 7 days. For customized products, the delivery time will be 45-60 days.

Q5. What is the trading terms you can accept?
We do prefer FOB as the trading terms.
