A387 Gr.11 CL2 14*2000*8000MM EN 10028 13CrMoSi5-5 Pressure Vessel Steel Plate

A387 Gr.11 CL2  14*2000*8000MM EN 10028 13CrMoSi5-5  Pressure Vessel Steel Plate
A387 Gr.11 CL2  14*2000*8000MM EN 10028 13CrMoSi5-5  Pressure Vessel Steel Plate
A387 Gr.11 CL2  14*2000*8000MM EN 10028 13CrMoSi5-5  Pressure Vessel Steel Plate A387 Gr.11 CL2  14*2000*8000MM EN 10028 13CrMoSi5-5  Pressure Vessel Steel Plate A387 Gr.11 CL2  14*2000*8000MM EN 10028 13CrMoSi5-5  Pressure Vessel Steel Plate A387 Gr.11 CL2  14*2000*8000MM EN 10028 13CrMoSi5-5  Pressure Vessel Steel Plate

Large Image :  A387 Gr.11 CL2 14*2000*8000MM EN 10028 13CrMoSi5-5 Pressure Vessel Steel Plate

Product Details:
Place of Origin: China
Brand Name: TSING SHAN
Certification: ISO SGS MTC
Model Number: A387
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 31.5 USD/KG
Packaging Details: Export Packing
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS

A387 Gr.11 CL2 14*2000*8000MM EN 10028 13CrMoSi5-5 Pressure Vessel Steel Plate

Description
Products: Alloy Steel Plate Delivery Condition: Furnace Normalised ; Hot Rolled
Origin Country: Shanghai China Shape: Flat.sheet
Density: 7.85 G/cm3 Technique: Cold Rolled Hot Rolled
Advantage: Corrosion Resistance Standard: GB,AISI
Surface Treatment: Black Painted Alloy Or Not: Is Alloy
Tolerance: ±1%
Highlight:

EN 10028 Pressure Vessel Steel Plate

,

14*2000*8000MM Pressure Vessel Steel Plate

,

13CrMoSi5-5 Pressure Vessel Steel Plate

A387 Gr.11 CL2 14*2000*8000MM EN 10028 13CrMoSi5-5 Pressure Vessel Steel Plate

Product Parameters



Features of A387 gr 11 pressure vessel steel plate:

The Molybdenum component in A387 gr 11 pressure vessel steel plate increases the plate tensile strength at high temperatures, and it also provides high resistance against oxidation and corrosion by increasing the lattice strain of the steel structure. That effectively stops the corrosive agents from dissolving the iron out of the steel structure.A387 gr 11 pressure vessel steel plate is good option for heat-resistant pressure vessels and sour gas environments.



Application of A387 gr 11 pressure vessel steel plate:

A387 gr 11 pressure vessel steel plate is popular used by power plant and dignity health medical foundation oil and gas industries in the production facilities because of the alloy's key properties.



Equivalent grades of A387 gr 11 pressure vessel steel plate:

  USA USA EUROPEAN GERMANY

UK (BRITISH

STANDARD)

FRANCE RUSSIA
STANDARDS ASTM ASME EN 10028 DIN BS AFNOR 36206 GOST
GRADE A387 11 SA387 11 13CrMoSi5-5 --- 621B
Chemical Composition
SA387/ASTM A387
Grade 5
Grade 9
Grade 11
Grade 12
Grade 22
C
0.15 max
0.15 max
0.04 - 0.17
0.04 - 0.17
0.04 - 0.15
Mn
0.25 - 0.66
0.25 - 0.66
0.35 - 0.73
0.35 - 0.73
0.25 - 0.66
P
0.035
0.030
0.035
0.035
0.035
S
0.030
0.030
0.035
0.035
0.035
Si
0.55 max
1.05 max
0.44 - 0.86
0.13 - 0.45
0.5 max
Cr
3.9 - 6.1
7.9 - 10.1
0.94 - 1.56
0.74 - 1.21
1.88 - 2.62
Mo
0.40 - 0.7
0.85 1.15
0.40 - 0.7
0.4 - 0.65
0.85 - 1.15
Mechanical Properties

Grade
A 387 Grade 5 &
Grade 9
A 387 Grade 11
A 387 Grade 12
A 387 Grade 22
Class 1
Class 2
Class 1
Class 2
Class 1
Class 2
Class 1
Class 2
Tensile Strength (ksi)
60-85
75-100
60-85
70-90
50-80
65-85
60-85
75-100
Tensile Strength (MPa)
415-585
515-690
415-585
485-620
380-550
450-585
415-585
515-690
Yield Strength (ksi)
30
45
35
45
33
40
30
45
Yield Strength (MPa)
205
310
240
310
230
275
205
310
Elongation in 200mm (%)


19
18
18
19


Elongation in 50mm (%)
18
18
22
22
22
22
18
18

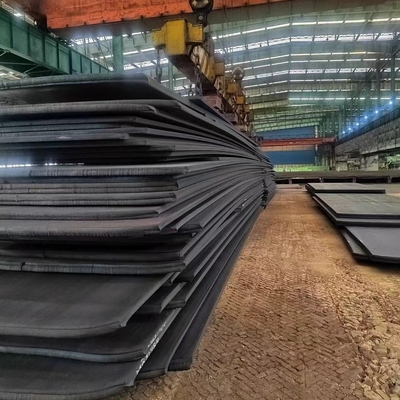

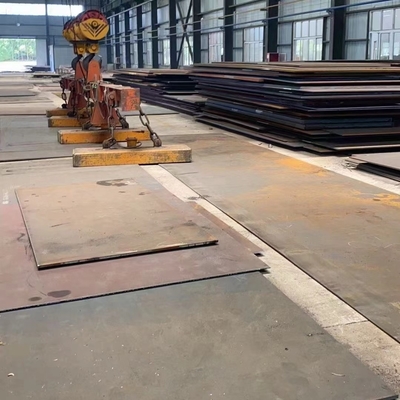

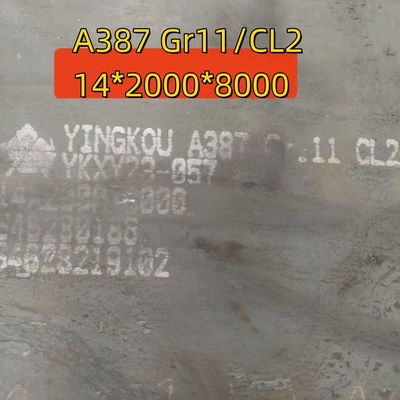

Detailed Photos

 A387 Gr.11 CL2  14*2000*8000MM EN 10028 13CrMoSi5-5  Pressure Vessel Steel Plate 0A387 Gr.11 CL2  14*2000*8000MM EN 10028 13CrMoSi5-5  Pressure Vessel Steel Plate 1A387 Gr.11 CL2  14*2000*8000MM EN 10028 13CrMoSi5-5  Pressure Vessel Steel Plate 2A387 Gr.11 CL2  14*2000*8000MM EN 10028 13CrMoSi5-5  Pressure Vessel Steel Plate 3



FAQ

1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.


2. Could we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.

4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.

5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.

6. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.

7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.

8. Q: What is your MOQ?
A: 5 Tons
