Product Details:
|
| Type: | Round | Application: | Construction,decoration,Industry,Mechineal |
|---|---|---|---|
| Standard: | DIN,ASTM,AISI,JIS | Grade: | 1J50 |
| Shape: | Round | Special Use: | Valve Steels |
| Certification: | ISO,BV,SGS | Dimensions: | 5.5mm-500mm |
| Technique: | Cold Drawn&hot Rolled | Sample: | Available |
| Price Term: | CIF CFR FOB Ex-Work | ||
| High Light: | Permalloy Soft Magnetic Alloy Bar,High Permeability Soft Magnetic Alloy Bar,Pb-2s Soft Magnetic Alloy Bar |
||
| Product Name | 1j50 1j79 1j85 1j22 stainless steel price 17-4 ph bar |
| Type | Hot Rolled, Cold Drawn, Oil Tempered, Heat Treatment |
| Standard | GB, AISI, ASTM, DIN, EN, SUS, UNS |
| Dia | 0.04-10mm |
| Width | 5-2000mm |
| Price Item | EXW, FOB, CIF, CFR, DDP etc |
| Material | Inconel: Inconel100 Inconel 600 Inconel 601 Inconel602CA Inconel 617 Inconel 625LCF Inconel 686 Inconel 690 Inconel 718 Inconel 725 Inconel X-750 Hastelloy: Hastelloy B Hastelloy B-2 Hastelloy B-3 Hastelloy C Hastelloy C-22 Hastelloy C -4 Hastelloy C-276 Hastelloy C-2000 Hastelloy G Hastelloy G-30 Hastelloy G-35 Monel: Monel 400 Monel 401 Monel 404 Monel R405 Monel K-500 Nickel: Nickel 200 Nickel 201 Nickel 205 Nimonic: Nimonic 75 Nimonic 80A Nimonic 90 Nimonic 105 Nimonic 115 Nimonic 901 Udimet: Udimet 188 Udimet 720 Udimet R41 Udimet 300 Haynes: Haynes 230 Haynes 556 Haynes 188 Incoloy: Incoloy 800 Incoloy 800H Incoloy 800HT Incoloy 825 Incoloy 925 Incoloy 926 GH: GH2132 GH3030 GH3039 GH3128 GH4180 GH3044 Alloy : Alloy 20/28/31; 200 series: 201,202,202Cu,204Cu, 300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330, 400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446, 600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D, S32760,2304,LDX2101,LDX2404,LDX4404,904L; Others: 254SMo,253Ma,F15,Invar36,1J22,N4,N6 etc. |
| Delivery time | 5-30 days after order confirmed, according to customer's quantity. |
| Payment | L/C, T/T |
Chemical composition% of 1J50 Alloy
| Grade | Chemical composition(%) | |||||||||
| C | P | S | Mn | Si | Ni | Cr | Mo | Cu | Fe | |
| Max | ||||||||||
| 1J50 | 0.03 | 0.020 | 0.020 | 0.30~0.60 | 0.15~0.30 | 49.0~51.0 | ≤0.20 | Rest | ||
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 685 | 780 | 3~35 |
| Density (g/cm3) | 8.2 |
| Electrical resistivity at 20ºC | 0.45 |
| Coefficient of linear expansion(20ºC~200ºC)X10-6/ºC | 9,2 |
| Saturation magnetostriction coefficient λθ/ 10-6 | 25,0 |
| Curie point Tc/ ºC | 500 |
Product Sales Information:

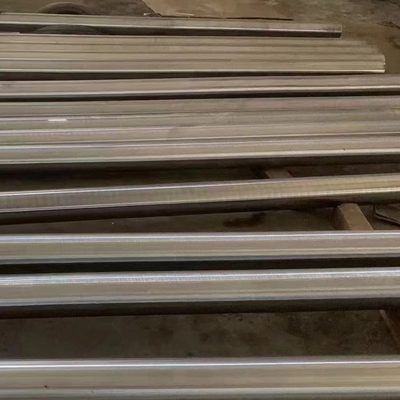

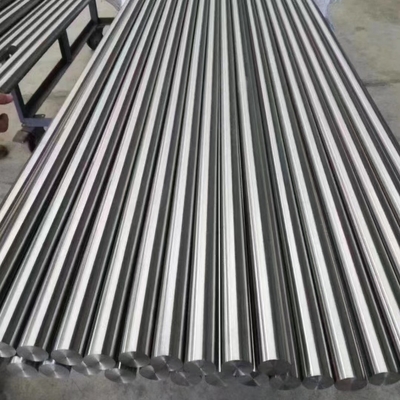

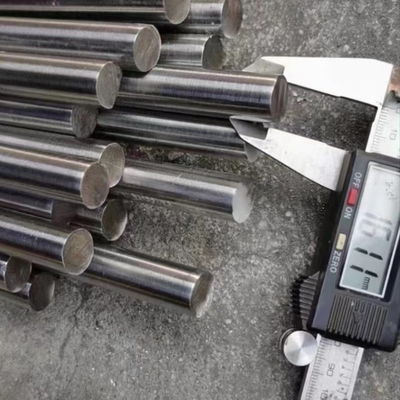

| Material | 1J50 steel round bar |
| Size |
Diameter:20mm-1000mm Length:500mm-6000mm |
| Origin place | Made In China |
| Delivery Condition | Hot rolled,cold drawn,forged |
| Surface require | Black,grinding,bright,polish |
| Heat treatment | Quenched,Tempered,annealed |
| Packing | seaworthy packing ,wooden case ,carton,woven bag or at client's requires |
| Delivery time | In 10-50 days |
| Trade Term | EXW,FOB,CIF |
| Payments | T/T or L/C at sight |
| Port | China main Port,such as shanghai,Dalian,Shenzhen port. |
| MOQ | 1 Ton |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according toquantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.lf you have another question, pls feel free to contact us.
