Product Details:
|
| OD: | 16-500mm | Length: | 6m 9m 12m |
|---|---|---|---|
| Surface: | Black And Bright | Type: | Hot Rolled |
| Steel Grade: | Alloy Steel | Technique: | Hot Rolled,Forged |
| Standard: | ASTM,DIN | Special Use: | Mold Steel |
| Shape: | Round | Surface Treatment: | Black/Peeling/Polishing/Machined |
| Diameter: | 12mm-650mm | Delivery Condition: | Annealed |
| Heat Treatment: | Normalized +Annealed +Quenched + Tempered | ||
| High Light: | 125MM forged steel round bar,1.6580 forged round bar,125MM steel round bar |
||

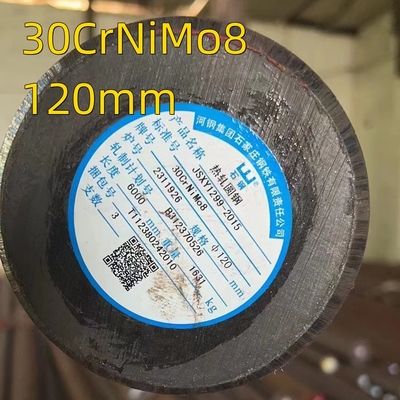

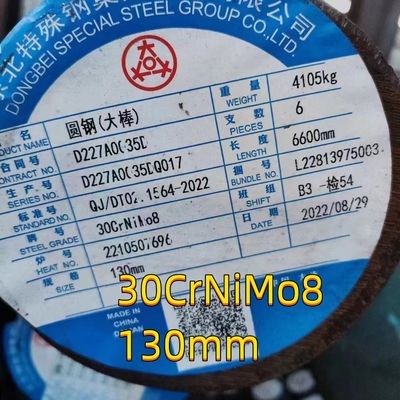

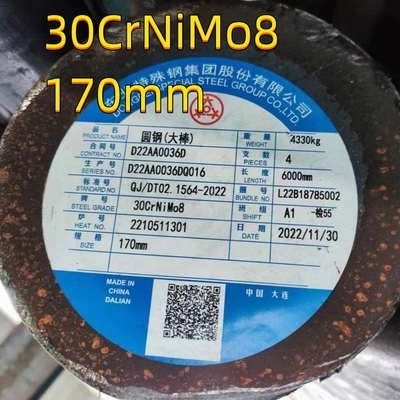

Otai now stocks 30CrNiMo8 steel round bar for immediate shipment with reliable quality and availability of common diameter. Hot rolled or heat treated round bar are both available. Here are some details of 30CrNiMo8:
1. Supply Range of DIN 30CrNiMo8 Grade Steel
30CrNiMo8 Round Bar: diameter 20~550mm
Condition: hot rolled; normalized; Q+T
2. Relevant Specification for 30CrNiMo8 Material
| EN 10083-3 | BS970 |
| 30CrNiMo8 / 1.6580 | 823M30 |
3. DIN 30CrNiMo8 Chemical Composition
| GRADE | CHEMICAL COMPOSITION | |||||||
| C | Si | Mn | P | S | Cr | Mo | Ni | |
| max | max | max | ||||||
| 30CrNiMo8 / 1.6580 | 0,26 ~ 0,34 | 0,40 | 0,50 ~ 0,80 | 0,025 | 0,035 | 1,80 ~ 2,20 | 0,30 ~ 0,50 | 1,80 ~ 2,20 |
4. 30CrNiMo8 Properties
Modulus of elasticity [103 x N/mm2]: 210
Density [g/cm3]: 7.82
5. Forging of DIN 30CrNiMo8 Alloy Steel
Hot forming temperature: 1050-850oC.
Heat to 650-700oC, cool slowly. This will produce a maximum Brinell hardness of 248.
Temperature: 850-880oC.
Harden from a temperature of 830-880oC followed by oil quenching.
Tempering temperature: 540-680oC.
7. Applications of 30CrNiMo8 Round Bar
For permanently stressed components with large cross sections for automotive and mechanical engineering. For economic performance under severe dynamic stress, parts must be designed for optimum strength or toughness.
