Product Details:
|
Material: | Stainless Steel | Finishing: | NO.1 2B |
---|---|---|---|
Size: | 1000-2000mm Customized Size | Shape: | Flat Plate |
Feature: | Corrosion Resistance | Thickness: | 1.5-30 Mm Or Customized |
High Light: | UNS S31653 Stainless Steel Plate,1.4429 Stainless Steel Plate,Stainless Steel Flat Plate 30mm |
Stainless steel grade 316LN is an austenitic type of steel that is a low carbon, nitrogen-enhanced version of grade 316 steel. The nitrogen content in this steel provides solid solution hardening, and raises its minimum specified yield strength. It also possesses good resistance to general corrosion and pitting/crevice corrosion.
The following datasheet provides an overview of stainless steel grade 316LN.
SA240 316LN, SA240 TP 316LN, SS 316LN Plate, TP316LN
Mittel is the large manufacturer to supply SA240 316LN,SA240 TP 316LN,
SS 316LN Stainless plate,TP316LN as per ASTM, ASME, JIS , EN, UNS Specs. We have about
3000tons each thickness and size stainless plates and large warehouse. If you have any
requirement for stainless plate in competitive price and faster delivery time, please contact us.
Tags: SA240 316LN, SA240 TP 316LN, SS 316LN Stainless plate,SS316LN, ASME SA240 316LN,TP316LN

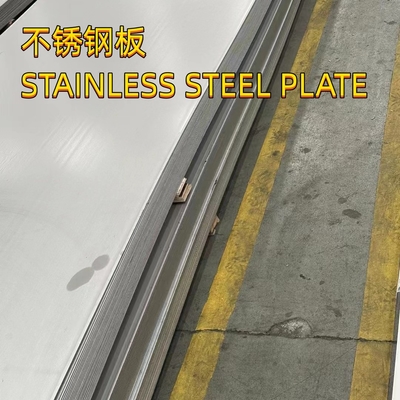

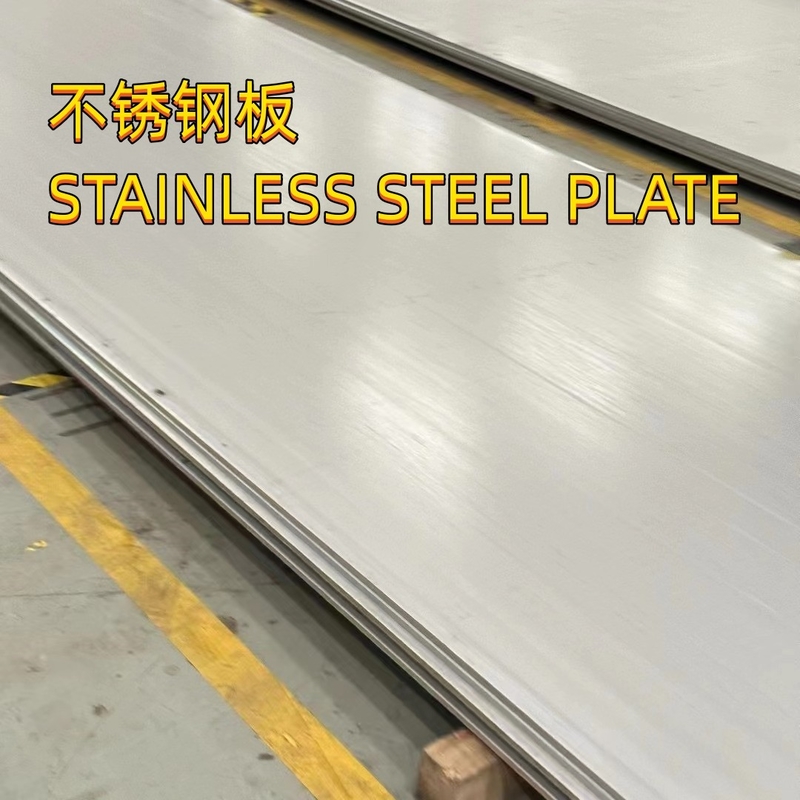

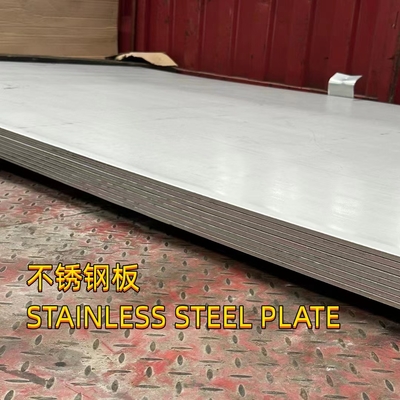

Product Name | 316LN Stainless Steel Plate |
Thickness | 0.1-200mm |
Length | 3000mm,5800mm,6000mm,9000mm,12000mm,etc. |
Diameter | 3-1220mm |
Standard | ASTM,JIS, AISI, GB, DIN, EN |
Surface | BA,2B,NO.1,NO.4,4K,HL,8K |
Certification | ISO, SGS |
Technique | Cold Rolled Hot Rolled |
Edge | Mill Edge Slit Edge |
Quality | SGS Inspection |
Grade (ASTM UNS) | 201,304,304L,321,316,316L,317L,347H,309S,310S,904L, S32205,2507,254SMOS,32760,253MA,N08926,etc |
Payment Terms | T/T L/C and Western Union etc |
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM | |
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM | |
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
What forms of SA240 316LN Stainless Steel are available at MittelSTEEL?
1). Stainless steel Plate & Sheet & Strip & Coil
Supply Dimensions: Thk: 0.8--100mm Wd: 500-- 2500mm Lgth: 1000--12000mm
Surface Finish: 2B, BA, No.1, etc.
2). Pipe & Tube
3). Stainless Section Bar
4). Weld Wire
SA240 316LN Chemical Composition, max %
C | Mn | P | S | Si | Cr |
0.03 | 2.00 | 0.045 | 0.030 | 0.75 | 16.0-18.0 |
Ni | Mo | N | Cu | Others | |
10.0-14.0 | 2.00-3.00 | 0.10-0.16 |
SA240 316LN Mechanical Properties
Grade | Tensile Str., min, MPa | 0.2% Yield Str., min, MPa | E.L in 50mm, min % | max HRB | |
SA240 TP 316LN | 515 | 205 | 40 | 95 |
Mittel is the large manufacturer for ASTM, ASME, JIS, EN, UNS Stainless plate
and sheet. We have about 3000tons each thickness and size stainless plates and large warehouse.
If any requirement for stainless plate in competitive price and faster delivery time, please contact us.
