Soft Magnetic Alloy Stainless Steel Bar 1j50 75mm Diameter Round Ni - Fe 65mm

Soft Magnetic Alloy Stainless Steel Bar 1j50 75mm Diameter Round Ni - Fe 65mm
Soft Magnetic Alloy Stainless Steel Bar 1j50 75mm Diameter Round Ni - Fe 65mm Soft Magnetic Alloy Stainless Steel Bar 1j50 75mm Diameter Round Ni - Fe 65mm

Large Image :  Soft Magnetic Alloy Stainless Steel Bar 1j50 75mm Diameter Round Ni - Fe 65mm

Product Details:
Place of Origin: China
Brand Name: MITTEL TISCO BAO STEEL
Model Number: 1J50
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: 8.5 USD/KG
Packaging Details: Wooden Box
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 50000KGS

Soft Magnetic Alloy Stainless Steel Bar 1j50 75mm Diameter Round Ni - Fe 65mm

Description
Certification: ISO,BV,SGS Type: Round
Application: Decoration,Industry Standard: ASTM,AISI,JIS,EN
Shape: Round,flat Dimensions: 5.5mm-500mm
Surface: Bright Black
High Light:

Soft Magnetic Alloy Stainless Steel Bar

,

1j50 Stainless Steel Bar

,

65mm Stainless Steel Bar

1J50 is a Ni-Fe soft magnetic alloy, and its main compositions are about 50% Ni, 48% Fe and other micro-elements. This alloy is characterized by high magnetic permeability, higher saturation induction density, etc. As a soft magnetic material used in alternating current, vortex and loss are induced inside the material due to the alternating magnetization. The smaller the resistivity and the greater the thickness of the alloy, and the higher frequency under the alternating magnetic field, the greater the eddy loss and the more the decrease of the magnetic performance. So, the material must be manufactured as thin sheet (strip) and coated with insulation layer on its surface. Or use certain method to form oxide insulation layer on the surface, and such alloys usually adopt magnesium oxide elecrophoretic coating.



Type of supply

Style Size
Wire D= 0.1~8mm
Strip W= 8~390mm T= 0.3-3mm
Foil W= 10~100mm T= 0.01~0.1
Rod Dia= 8~100mm L= 50~6000



1J50 magnetic alloy, a Ni-Fe soft magnetic alloy, mainly applies to high magnetic conductivity yoke iron, sensitive relay, low loss micromotor, low power transformer, pulse transformer, transistor switch, magnetic amplifier, magnetic modulator, sensitive signal input and output transformer, magnetic sensor of aviation magnetic heading instrument, magnetic sensitive element of magnetic measuring instrument, stator and movable plate of precision electric meter, magnetic shielding and magnetic temperature compensating elements.

Chemical composition (%)
Ni 49.0~51.0 Fe Bal. Mn 0.3~0.6 Si 0.15~0.3
Mo - Cu ≤0.2 S ≤0.02
C ≤0.03 P ≤0.02



Mechanical property

Yield strength Tensile Strength Elongation
Mpa Mpa %
685 780 3~35

Physical property
Density (g/cm3) 8.2
Resistivity under 20℃(Ωmm2/m) 0.45
Linear expansion coefficient (20℃-200℃) X10-6/℃ 9.2
Saturation magnetostrictive coefficient, λθ/ 10-6 25
Curie point, Tc/ ℃ 500





Heat treatment process

Annealing medium Dry hydrogen ( dew point is no more than -40℃) or vacuum, with a residual pressure of no more than 0.1Pa
Heating temperature and speed 1100~1150℃
Heat preservation (h) 3~6
Cooling speed Be cooled to 600℃ at a speed of 100 ~ 200 ℃/ h, then be quickly cooled to 300℃, discharging from the furnace.

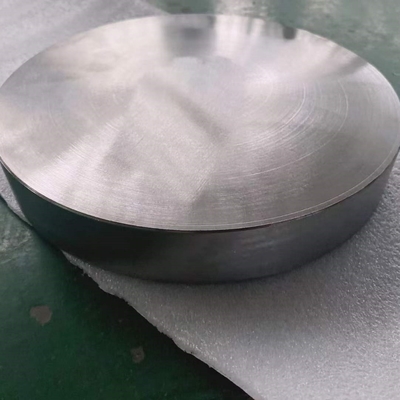

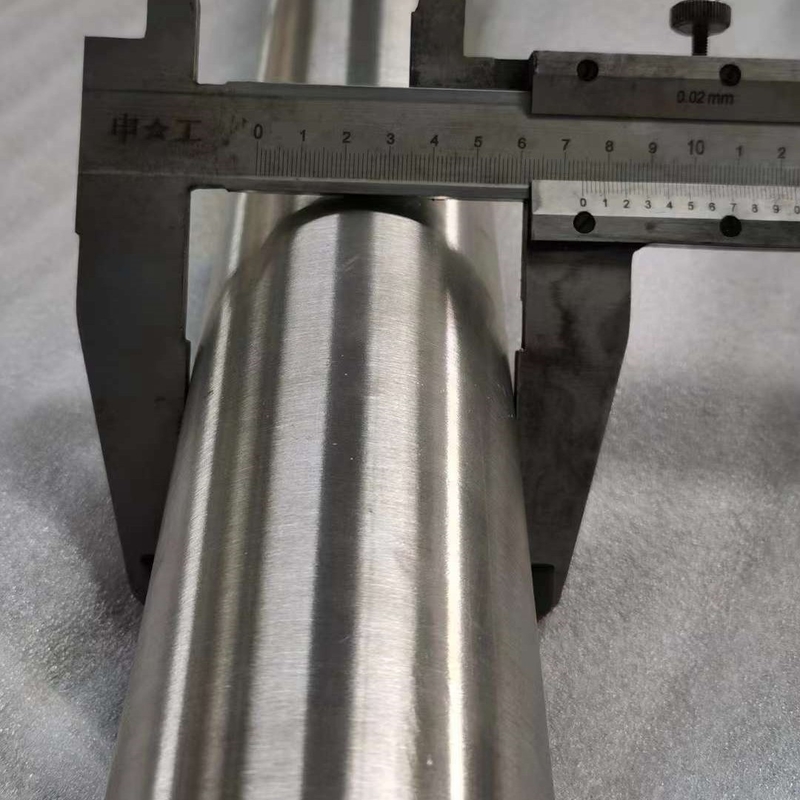

Soft Magnetic Alloy Stainless Steel Bar 1j50 75mm Diameter Round Ni - Fe 65mm 0Soft Magnetic Alloy Stainless Steel Bar 1j50 75mm Diameter Round Ni - Fe 65mm 1
