Product Details:
|
Type: | Round | Application: | Construction,decoration,Industry,Mechineal,shipbuilding |
---|---|---|---|
Standard: | ASTM,AISI | Grade: | 300 Series |
Shape: | Round | Dimensions: | 5.5mm-500mm |
Surface: | Bright,Polished | Product Name: | SS 201 304 316 410 420 2205 316L 310S Stainless Steel Round / Flat Bar |
Technique: | Cold Rolled Hot Rolled | Packing: | Standard Seaworthy Package |
Price Term: | CIF CFR FOB Ex-Work | ||
High Light: | Din 1.4441 Stainless Steel Round Bar,Bright Finish Stainless Steel Bar,SS 316LVM Stainless Steel Bar |

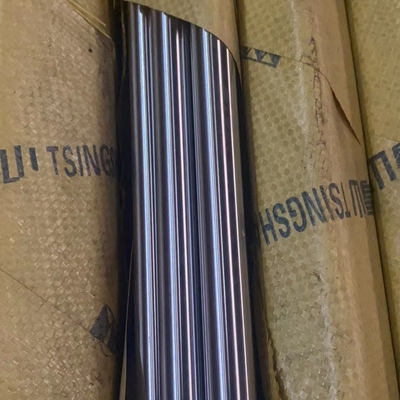

SS 316LVM / Din 1.4441 Grade Stainless Steel Round Bar (5-60mm) Tolerance - H9 Bright Finish
Mittel steel with improved corrosion resistance compared to AISI 316L.
Osteosyntheses; bone screws, bone plates, marrow-nails. Also suitable for watch industry.
C | ≤ 0,030 | Cr | 17,0 - 19,0 |
Si | ≤ 1,00 | Mo | 2,5 - 3,2 |
Mn | ≤ 2,0 | Ni | 13,0 - 15,5 |
P | ≤ 0,025 | N | ≤ 0,10 |
S | ≤ 0,010 | Fe | rest` |
annealed | specification values (bars) |
tensile strength Rm | 490 - 690 MPa |
elongation A | ≥ 40% |
cold worked | specification values (bars) |
tensile strength Rm | 860 - 1100 MPa (higher values upon demand) |
elongation A | ≥ 12% |
dimensions | kg/m2 | tolerances |
3,2 | 0,226 | +0 / - 0.1 mm |
4,5 | 1.013 | +0 / - 0.1 mm |
dimensions | kg/m | tolerances |
6,0 | 0,22 | h8 |
8,0 | 0,40 | h8 |
12,7 | 1.01 | h8 |
Further bars and profiles in different executions available upon request.
Various sizes and tolerances available upon request.
We can provide various services directly in our service center. You save time, cost (internal or external) and don't need to find solutions for scrap management or handling of heavy plates and long bars.
Services suitable for sheets, plates, coils | Services suitable for round bars |
laser and waterjet cutting | sawing of bars |
shearing of sheets and plates | bar marking |
coil slitting | turning machine |
