Dia 200 Mm Stainless Steel Forged Round Bar Shaft SS431 Z20 CN 17.02

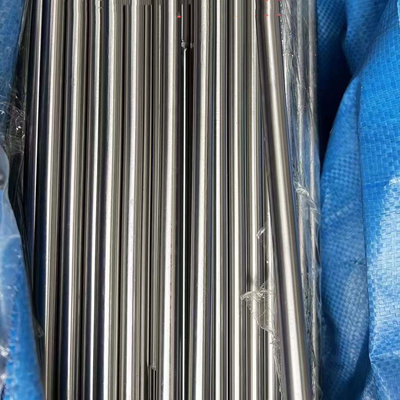

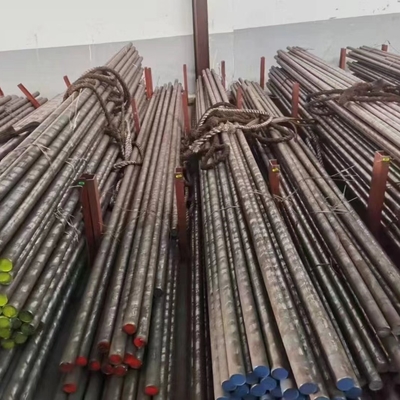

Large Image : Dia 200 Mm Stainless Steel Forged Round Bar Shaft SS431 Z20 CN 17.02

Product Details:

Place of Origin:	China
Brand Name:	MITTEL TISCO BAO STEEL
Certification:	SGS ISO MTC
Model Number:	431 14Cr17Ni2

Payment & Shipping Terms:

Minimum Order Quantity:	300KGS
Price:	2.75 USD/KG
Packaging Details:	Wooden Pallet
Delivery Time:	7 Days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	50000KGS

Contact Now

Dia 200 Mm Stainless Steel Forged Round Bar Shaft SS431 Z20 CN 17.02

Description

Type:	Round	Application:	Construction,decoration,Industry,Mechineal,shipbuilding
Standard:	DIN,ASTM,AISI,JIS	Grade:	400 Series
Shape:	Round	Certification:	ISO,BV,SGS
Dimensions:	3mm-800mm	Surface:	Bright,Polished,black
Technique:	Cold Drawn&hot Rolled	Packing:	Standard Seaworthy Package
Price Term:	CIF CFR FOB Ex-Work
Highlight:	Stainless Steel Forged Round Bar , Dia 200mm Stainless Steel Forged Bar , SS431 Stainless Steel Forged Bar

431 Stainless Steel

Industry Names

UNS S43100
431 Stainless

Material

Stainless Steel

Specifications

AMS 5628
ASTM A276 (Bar)
ASTM A479 (Bar)
MIL-S-18732
UNS S43100

Applications

Bolts
Fasteners
Marine Fixtures
Pump Shafts

Features

Corrosion Resistant in a Variety of Marine and Chemical Environments
Excellent Corrosion Resistance

431 Stainless Steel Round Bar Chemical Composition

	Min. %	Max %
Carbon	0.12	0.20
Silicon	0.00	1.00
Manganese	0.00	1.00
Nickel	1.25	3.00
Chromium	15.00	18.00
Phosphorous	0.00	0.04
Sulphur	0.00	0.03

431 Stainless Steel Round Bar Physical Properties

DENSITY (G/CM 3)	8.0
DENSITY (LB/IN 3)	0.289
MELTING POINT (°C)	1400 – 1455
MELTING POINT (°F)	2550 – 2650

431 Stainless Steel Round Bar Mechanical Properties

Tensile Strength : Unit – ksi (MPa) , Minimum
Yeild Strength : 0.2 % Offset , Unit – ksi (MPa) , Minimum
Elongation : in 2″, Unit : % , Minimum
Hardness : Rockwell , Maximum

Condition		Annealed	*T
Tensile Strength Mpa	Min		850
	Max		1000
0.2% Yield Strength Mpa	Min		635
Elongation on 5.65√S0 %	Min		11
Izod Impact Valua J mm	Min		63 34 63 20
Hardness HB	Min		248
	Max	277	302
*Material stocked generally in condition T. NB. Check the mill certificate if critical for end use.
