Product Details:
|
| Length: | Customer's Request,in Coil | Grade: | 400 Series |
|---|---|---|---|
| Application: | Construction,Kitchenware,Medical Instruments,Industry,Decoration | Type: | Cold Rolled Coil |
| Standard: | ASTM,AISI,JIS,DIN | Width: | 250mm To 1000mm |
| Surface: | 2B,HL,2D,No.4 | Technique: | Cold Rolled |
| Thickness: | 0.15-3.0mm | Price Term: | CIF CFR FOB EX-WORK |
| High Light: | SUS436L Stainless Steel Coil Strip,DIN1.4512 Stainless Steel Coil Strip,Stainless Steel Coil For Weld Pipe |
||

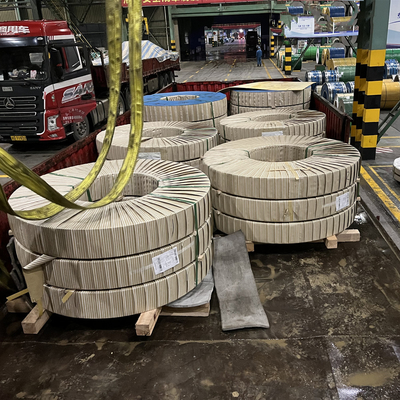

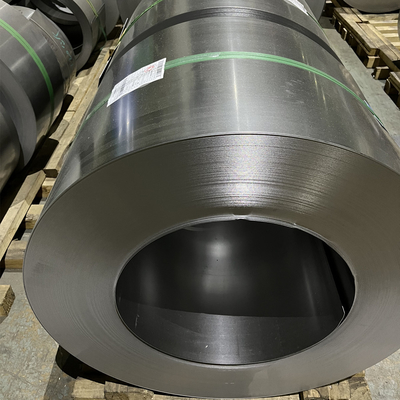

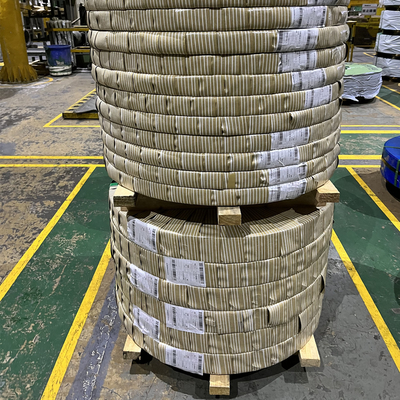

DIN1.4512 SUS436L Stainless Steel Coil Strip 2D Surface 1.0*153.4mm Used For Weld Pipe
| Specifications | ASTM A240, ASME SA240 |
| Standards | JIS G 4304 : Hot-rolled stainless steel plate, sheet and strip JIS G 4305 : Cold-rolled stainless steel plate, sheet and strip |
| Grade | JIS SUS436L -400 Series |
| Width | 1250mm / 1500mm |
| Thickness | Cold rolled:0.5-3.0mm Hot rolled:3mm-12mm |
| Length | 2000mm to 6000mm or as customer’s request |
| Dimensions | AISI, ASTM, DIN, GB, JIS, SUS |
| Surface | surface and finish of stainless steel sheets |
| Material | Ferritic Stainless Steel |
| Processes | Hot Rolled,Cold Rolled |
| Surface | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D, Hairline, Mirror finish, Brush, Polished, Sand blast |
| Standard Number | Material | Standard | Country |
| G 4305 | SUS436L | JIS | Japan |
| Grade | C(％) | Si(％) | Mn(％) | P(％) | S(％) | Cr(％) | Ni(％) | Ni(％) | Mo(％) | N(%) |
|---|---|---|---|---|---|---|---|---|---|---|
| JIS SUS436L | 0.025 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 16.00-19.00 | 0.60 max | 0.025 max | – | – |
| JIS Grade | Yield Strength(MPa) | Tensile Strength(MPa) | % Elongation in 2 in.(50mm) min | Hardness Brinell HBW / HB | Rockwell B HRBS / HRB | HV |
|---|---|---|---|---|---|---|
| SUS436L | 245 | 410 | 20 | 217 | 96 | 230 |
