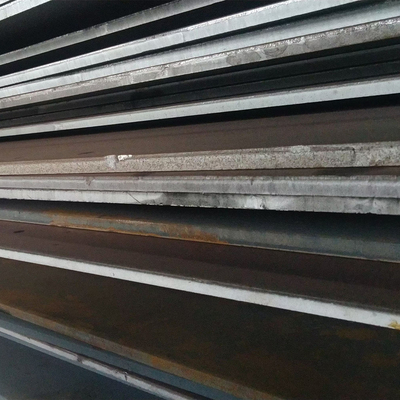

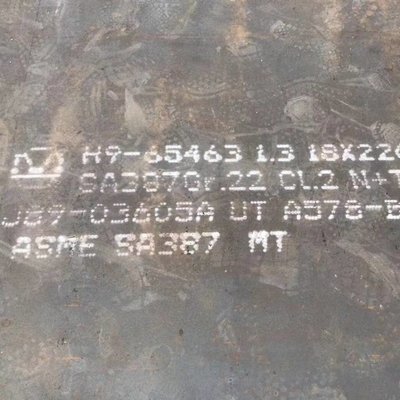

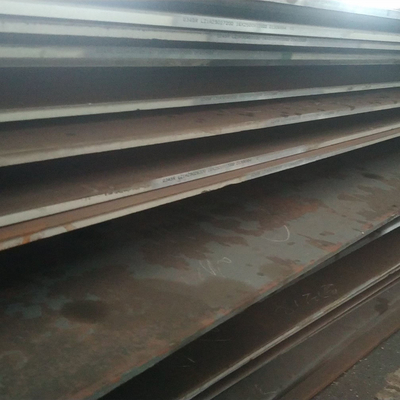

SCMV6 ASTM Alloy Steel Plate A387 GR.5 CL.2 DISK PLATE For Boilers And Pressure Vessels

SCMV6 ASTM Alloy Steel Plate A387 GR.5 CL.2 DISK PLATE For Boilers And Pressure Vessels
SCMV6 ASTM Alloy Steel Plate A387 GR.5 CL.2 DISK PLATE For Boilers And Pressure Vessels SCMV6 ASTM Alloy Steel Plate A387 GR.5 CL.2 DISK PLATE For Boilers And Pressure Vessels SCMV6 ASTM Alloy Steel Plate A387 GR.5 CL.2 DISK PLATE For Boilers And Pressure Vessels

Large Image :  SCMV6 ASTM Alloy Steel Plate A387 GR.5 CL.2 DISK PLATE For Boilers And Pressure Vessels

Product Details:
Place of Origin: China
Brand Name: MITTEL TISCO BAO STEEL
Certification: SGS ISO MTC
Model Number: ASTM A387 GR.5 CL.2,
Payment & Shipping Terms:
Minimum Order Quantity: 300KGS
Price: 0.75 USD/KG
Packaging Details: Wooden Pallet
Delivery Time: 7 Days
Payment Terms: L/C, T/T, D/P
Supply Ability: 50000KGS

SCMV6 ASTM Alloy Steel Plate A387 GR.5 CL.2 DISK PLATE For Boilers And Pressure Vessels

Description
Application: Boiler Plate Technique: Hot Rolled
Surface Treatment: Galvanized,Black Standard: ASTM,GB,AISI,JIS,DIN
Length: 1000-12000mm Type: Steel Plate
Width: 2000-2300mm,1000mm-2000mm Special Use: High-strength Steel Plate
High Light:

ASTM Alloy Steel Plate

,

A387 Alloy Steel Plate

,

SCMV6 Alloy Steel Plate

SCMV6 Standards ASTM A387 GR.5 CL.2, Alloy Steel Plate DISK PLATE For Boilers And Pressure Vessels





ASTM A387 grade 5 steel is an alloy steel formulated for primary forming into wrought products. ASTM A387 Grade 5 is the ASTM designation for this material. S50200 is the UNS number.

It has a moderately high electrical conductivity and a moderately high base cost among wrought alloy steels in the same category.

The properties of ASTM A387 grade 5 steel include two common variations. This page shows summary ranges across both of them. For more specific values, follow the links immediately below. The graph bars on the material properties cards further below compare ASTM A387 grade 5 steel to: wrought alloy steels in the same category (top), all iron alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.





A high quality ASTM A387 GRADE 5 Class 1 or chrome molybdenum alloy steel plate intended specifically for use in weldable carbon steel pressure vessels at elevated temperatures. Added molybdenum gives the material greater temperature tensile strength and the chromium provides improved corrosion resistance.


Equivalents

BS EN ASME DIN
... ... A387-5-1 ...

Specifications ASTM A387 Grade 5 Alloy Steel Plates

Chromium & Molybdenum content (according to the ASME specification)
Designation Nominal Chromium
Content (%)
Nominal Molybdenum
Content (%)
A387 Grade 5 5.00% 0.50%

Tensile Requirements for ASTM A387 Grade 5 Alloy Steel Plates Class 1 Plates

Designation: Requirement: Grade 5
A387 Grade 5 Tensile strength, ksi [MPA] 75 to 100 [515 to 690]
  Yield strength, min, ksi [MPa]/(0.2% offset) 45 [310]
  Elongation in 8 in. [200mm], min % ...
  Elongation in 2 in. [50mm], min, % 18
  Reduction of area, min % 45 (measured on round specimen)
40 (measured on flat specimen)

Chemical Requirements for ASTM A387 Grade 5 Alloy Steel Plates

Element   Chemical Composition (%)
    A 387 Grade 5
Carbon: Heat Analysis: 0.15 max
  Product Analysis: 0.15 max
Manganese: Heat Analysis: 0.30 - 0.60
  Product Analysis: 0.25 - 0.66
Phosphorus: Heat Analysis: 0.035
  Product Analysis: 0.035
Sulphur (max): Heat Analysis: 0.030
  Product Analysis: 0.030
Silicon: Heat Analysis: 0.50 max
  Product Analysis: 0.55 max
Chromium: Heat Analysis: 4.00 - 6.00
  Product Analysis: 3.90 - 6.10
Molybdenum: Heat Analysis: 0.45 - 0.65
  Product Analysis: 0.40 - 0.70





SCMV6 ASTM Alloy Steel Plate A387 GR.5 CL.2 DISK PLATE For Boilers And Pressure Vessels 0SCMV6 ASTM Alloy Steel Plate A387 GR.5 CL.2 DISK PLATE For Boilers And Pressure Vessels 1
