Product Details:
|
| Certification: | ISO,BV,SGS | Type: | Round |
|---|---|---|---|
| Application: | Decoration,Industry,Mechineal,shipbuilding | Standard: | DIN,ASTM,AISI,JIS |
| Grade: | 400 Series 440A SUS440A | Shape: | Round |
| Dimensions: | 5.5mm-500mm | Surface: | Bright,Polished |
| Technique: | Cold Drawn&hot Rolled | Packing: | Standard Seaworthy Package |
| Price Term: | CIF CFR FOB Ex-Work |

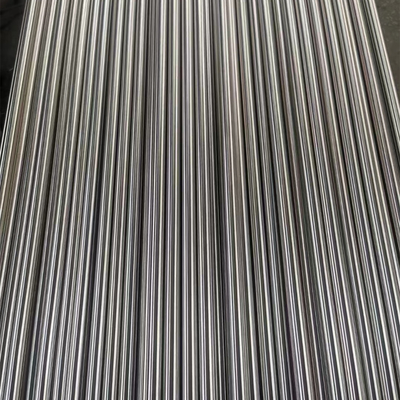

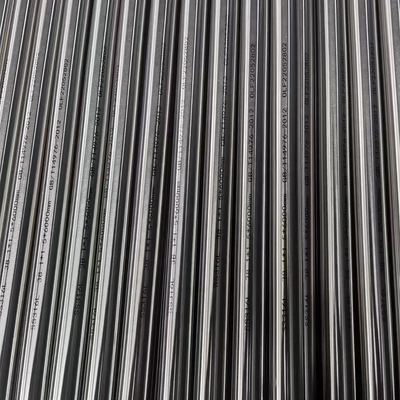

440A Round bar ¾'' Dia AISI 440A 440b 440c Stainless Steel Forged Round Bar
| Standards | Designation |
|---|---|
| ASTM | A 276 |
| Length | Diameter |
|---|---|
| 2-12m | 6mm-500mm |
| Type | Certification |
|---|---|
| 440A Stainless Steel Round Bar | ISO 9001:2008 |
|
Grade |
Why it might be chosen instead of 440C |
|---|---|
| 440A/B | Slightly softer and more corrosion resistant grade needed |
| 440F | High machinability required, with same hardness and hardenability as 440C |
| 420 | Lower strength and hardness needed than any of the 440 grades |
| 416 | Higher machinability required, and the much lower hardness and strength is still adequate |
Below you will find a brief overview of a number of stainless steel bar specifications. If you do not see a specification listed, please contact us.
| BS | JIS | IS | DIN | ASTM | |
|---|---|---|---|---|---|
| Semi Free Cutting Steel | 15AM/8M | SMn433H,SUM 41 |
13S25/ 40C10S 18/40Mn15S12 |
— | 1137,1140 |
| Free Cutting Steel | EN-1A EN-1A L |
SUM-23 SUM-24 L |
11C10S25 —— |
9SMn30 11SMnPb30 |
1212/ 1213 12L15 |
Stainless Steel Bar Specifications |
|||
|---|---|---|---|
ASTM A276 |
This specification encompasses cold-finished or hot-finished bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes, such as angles, tees, and channels in the more commonly used types of stainless steels. | ||
ASTM A479 |
This specification includes cold and hot finished stainless steel bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes such as angles, tees, and channels. | ||
ASTM A484 |
This specification includes wrought stainless steel bars, shapes, forgings, and billets or other semi-finished materials, except wire, for forging. The materials are available in four types of conditions. | ||
ASTM A582 |
This specification includes cold or hot finished bars, which are suitable for machining processes. This specification includes rounds, squares, and hexagons, from common types of stainless free-machining steels. | ||
ASTM B473 |
This specification includes nickel alloy bar & wire, which can be produced in a solution-annealed condition, stabilized-annealed condition, or annealed condition. | ||
Our Grades :
AISI:
201, 202, 301, 302, 303, 304, 304H, 304L, 316, 316H, 316L, 309, 309S, 310, 310S, 316Ti, 317, 317L, 347, 321, 321H, 410, 416, 420, 430, 430F, 431, 440C, 630, 17-4PH, F51
DIN:
WNR1.4301, WNR1.4305, WNR1.4306, WNR1.4307, WNR1.4401, WNR1.4404, WNR1.4571, WNR1.4541, WNR1.4828, WNR1.4841, WNR1.4845, WNR1.4449, WNR1.4438, WNR1.4310, WNR1.4550, WNR1.4541, WNR1.4878, WNR1.4006, WNR1.4005, WNR1.4021, WNR1.4028, WNR1.4016, WNR1.4104, WNR1.4105, WNR1.4057, WNR1.4542, WNR1.4462
|
Element
|
Min
|
Max
|
|---|---|---|
|
C
|
–
|
.68
|
|
Cr
|
–
|
17.0
|
|
Fe
|
–
|
79.57
|
|
Mn
|
–
|
1.00
|
|
Mo
|
–
|
.75
|
|
Si
|
–
|
1.00
|
|
Grade |
Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Coefficient of Thermal Expansion (mm/m/°C) |
Thermal Conductivity(W/m.K) |
Specific Heat |
Electrical Resistivity (nW.m) |
|||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-200°C | 0-600°C | at 100°C | at 500°C | |||||
| 440 A | 7650 | 200 | 10.1 | 10.3 | 11.7 | 24.2 | – | 460 | 600 |
Tensile Strength : Unit – ksi (MPa) , Minimum
Yeild Strength : 0.2 % Offset , Unit – ksi (MPa) , Minimum
Elongation : in 2″, Unit : % , Minimum
Hardness : Rockwell , Maximum
