Product Details:
|
| Grade: | Q235 | Shape: | U Channel,C Channel |
|---|---|---|---|
| Standard: | ASTM,GB,DIN,AISI | Dimensions: | 50*37*4.5-400*104*14.5 |
| Material: | Q235,Q195,Q345 | Technique: | Hot Rolled Steel Channel |
| Type: | Carbon Structural Steel | Length: | 5.8M-12M |
| Name: | Galvanized U Channel | Finishes: | Hot Dip Galvanized/electro-glavanized/eletro-polish |
| High Light: | Galvanized Steel Channel Beam Bar,ASTM A36 Steel Channel Beam,100*50*5mm Steel U Channel |
||

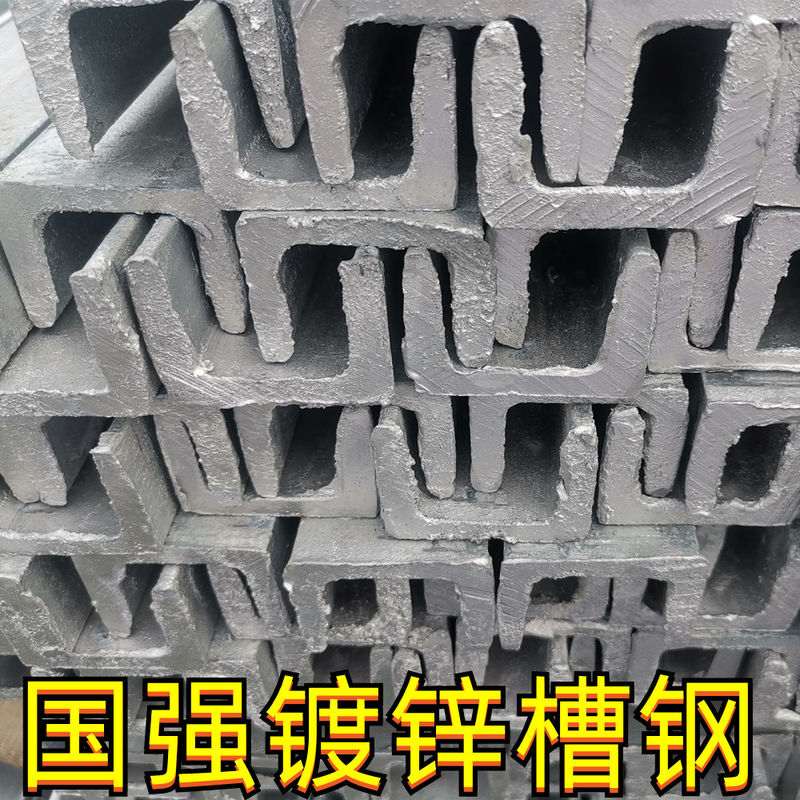

Galvanized Steel Channel Bar ASTM A36 Hot Rolled Steel Galvanized Steel U Channel Bar 100*50*5mm
|
SPECIFICATIONS FOR CHANNEL STEEL
|
||
|
INTRODUCTION |
Product
|
channel steel
|
|
Standard
|
ASTM,BS,GB,JIS,etc
|
|
|
Grade
|
SS400, ST37-2, A36, S235JRG1, Q235, Q345 etc
|
|
|
SPECIFICATIONS |
Product Keywords
|
c channel for building
|
|
manufacturing technique
|
Hot rolled(elementary) Can be processed again repeatedly
|
|
|
strength of extension
|
A36/420MPa S355JR/485MPa
|
|
|
Shipping |
Technique
|
Hot Rolled or cold rolled
|
|
Delivery Time
|
7days
|
|
|
Shipping
|
1)Shipping by containers
2)Shipping by bulk ship
|
|
U Channel Steel is used in construction and machinery with carbon structural steel, is a complex section of the steel section, the section shape for the groove shape. U Channel steel is mainly used for building structures, curtain wall engineering, machinery and equipment and vehicle manufacturing. In the use of the requirements of its welding, riveting performance and comprehensive mechanical properties. The raw material billets of the U channel steel are carbon steel or low alloy steel billets with carbon content not exceeding 0.25%.
| Produce Name | Carbon steel U channel |
| Standard | JIS, ASTM, GB, DIN, EN, AISI |
| Materials | A36, SS400, S235JR/S235/S355JR/S355, Q235B,Q345B |
| MTC report or any other requested test will be offered together with the shipping document. | |
| Length/Side length | 1-12m or as customer's request |
| Thickness | 1mm-150mm or as required |
| Technique | Cold Drawn/Cold pilfered/Cold rolled/Hot rolled/forge-Can be processed again repeatedly |
| Other Processing Service | Hot dipped galvanized, pre-galvanized, coated, cuttung, bending, punching, etc |
| Surface | Mild steel plain finish, hot dip galvanized, pre galvanized, color coated, ect. |
| Application | Foodstuff, gas, metallurgy, biology, electron, chemical, petroleum, boilers, nuclear, energy, construction field, ships building, industry, electricity industry, boiler heat exchange, machine and hardware fields and medical equipment, fertilizer, etc. |
| Inspection | Third party inspection service can be offered like ISO,SGS,BV and so on.. |
| MOQ | 5 ton |
| Lead Time | 7-15 working days |
| Payment Terms | T/T, irrevocable L/C at sight |
| Package | Standard export waterproof package, suit for all kinds of transport, steel strips in bundles woven cloth with 7 slats woodenn pallet or as required. |
| Container size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM | |
| 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
| Designation | Unit Weight (kg/m) | Standard Sectional Dimension (mm) |
Sectional Area (cm²) | |||
| G | t1 | t2 | r1 | r2 | A | |
| 75x40 | 6.92 | 5 | 7 | 8 | 4 | 8.818 |
| 100x50 | 9.36 | 5 | 7.5 | 8 | 4 | 11.92 |
| 125x65 | 13.4 | 6 | 8 | 8 | 4 | 17.11 |
| 150x75 | 18.6 | 6.5 | 10 | 10 | 5 | 23.71 |
| 150x75 | 24 | 9 | 12.5 | 15 | 7.5 | 30.59 |
| 180x75 | 21.4 | 7 | 10.5 | 11 | 5.5 | 27.2 |
| 200x80 | 24.6 | 7.5 | 11 | 12 | 7 | 31.33 |
| 200x90 | 30.3 | 8 | 13.5 | 14 | 6 | 38.65 |
| 250x90 | 34.6 | 9 | 13 | 14 | 7 | 44.07 |
| 250x90 | 40.2 | 11 | 14.5 | 17 | 8.5 | 51.17 |
| 300x90 | 38.1 | 9 | 13 | 14 | 7 | 48.75 |
| 300x90 | 43.8 | 10 | 15.5 | 19 | 9.5 | 55.75 |
| 300x90 | 48.6 | 12 | 16 | 19 | 9.5 | 61.9 |
| 380x100 | 54.5 | 10.5 | 16 | 18 | 9 | 69.39 |
| 380x100 | 62 | 13 | 16.5 | 18 | 9 | 78.96 |
| 380x100 | 67.3 | 13 | 20 | 24 | 12 | 85.71 |
